HIKVISION DS-KV6113-PE1 User Manual

Video Intercom Villa Door Station User Manual
20

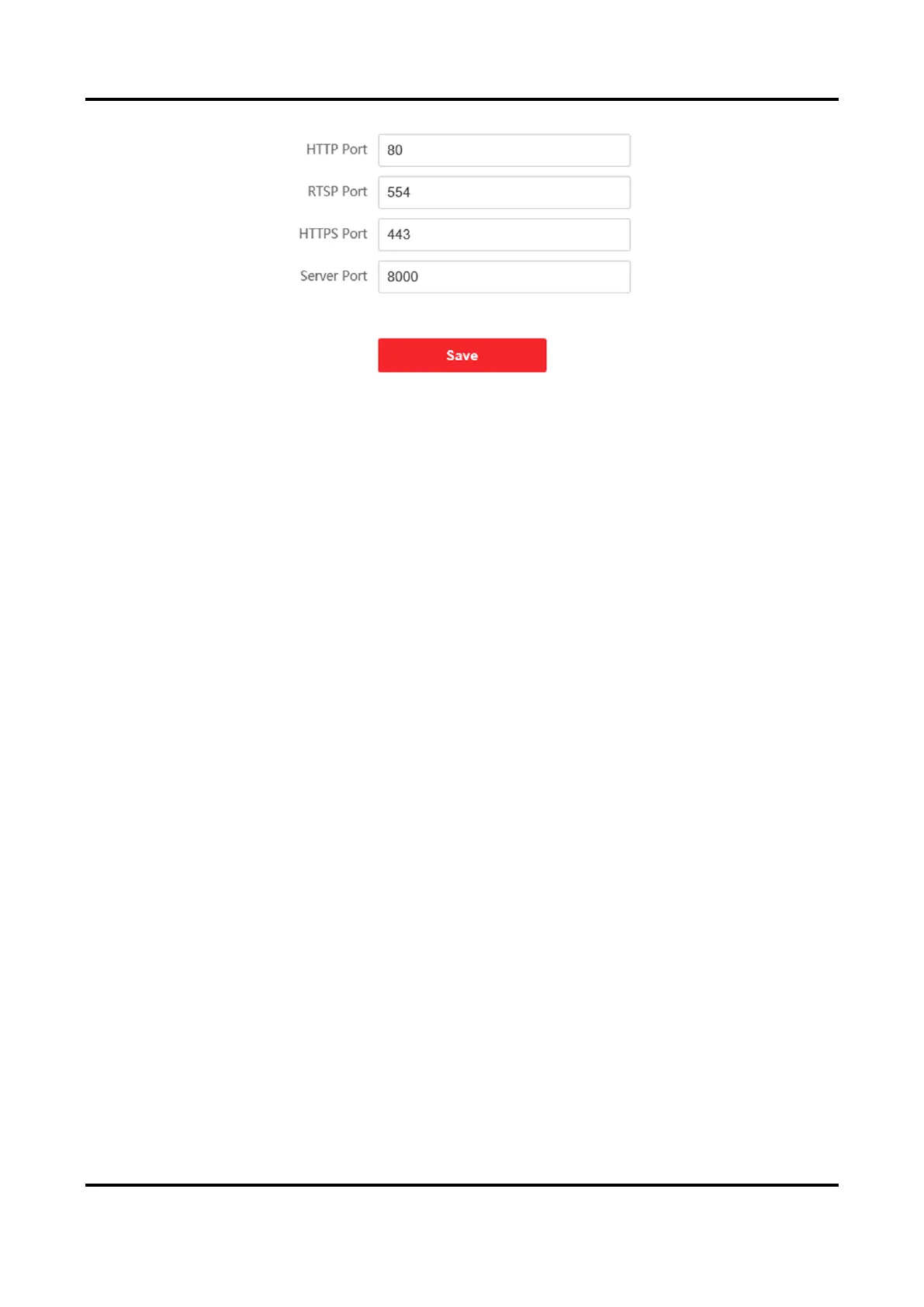

Figure 5-5 Port Settings
2. Set the ports of the device.
HTTP Port
The default port number is 80, and it can be changed to any port No. which is not occupied.
HTTPS Port
The default port number is 443, and it can be changed to any port No. which is not occupied.
RTSP Port
The default port number is 554.
Server Port
The default server port number is 8000, and it can be changed to any port No. ranges from
2000 to 65535.
3. Click Save to enable the settings.
Wi-Fi Settings
Steps
1. Go to Network → Basic Settings → Wi-Fi to enter the settings page.
2. Enable Wi-Fi.
3. Click Add, and set corresponding parameters. and Password of the Wi-Fi.
1) Enter the SSID.
2) Select Working Mode.
3) Select Encryption Type.
4) Click OK.
5) Optional: Click Refresh to get the present information.
4. Click Network Settings, and set corresponding parameters.
5. Select Security Mode.
6. Click Connect.

HIKVISION DS-KV6113-PE1 Specifications

General

Color	-
Wall mountable	Yes
Connectivity technology	Wired
Megapixel	2 MP
Supported video modes	720p, 1080p
Viewing angle, vertical	75 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	129 °
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RTSP
Product color	Black, Grey
International Protection (IP) code	IP65
LED type	IR
Indoor unit included	No
Outdoor unit power type	DC
Power consumption (typical)	10 W
Operating temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	- \
Operating system installed	Embedded LINUX

Weight and Dimensions

Depth	65 mm
Width	138 mm
Height	27 mm
