HIKVISION DS-KV6113-PE1 User Manual

Video Intercom Villa Door Station User Manual
24

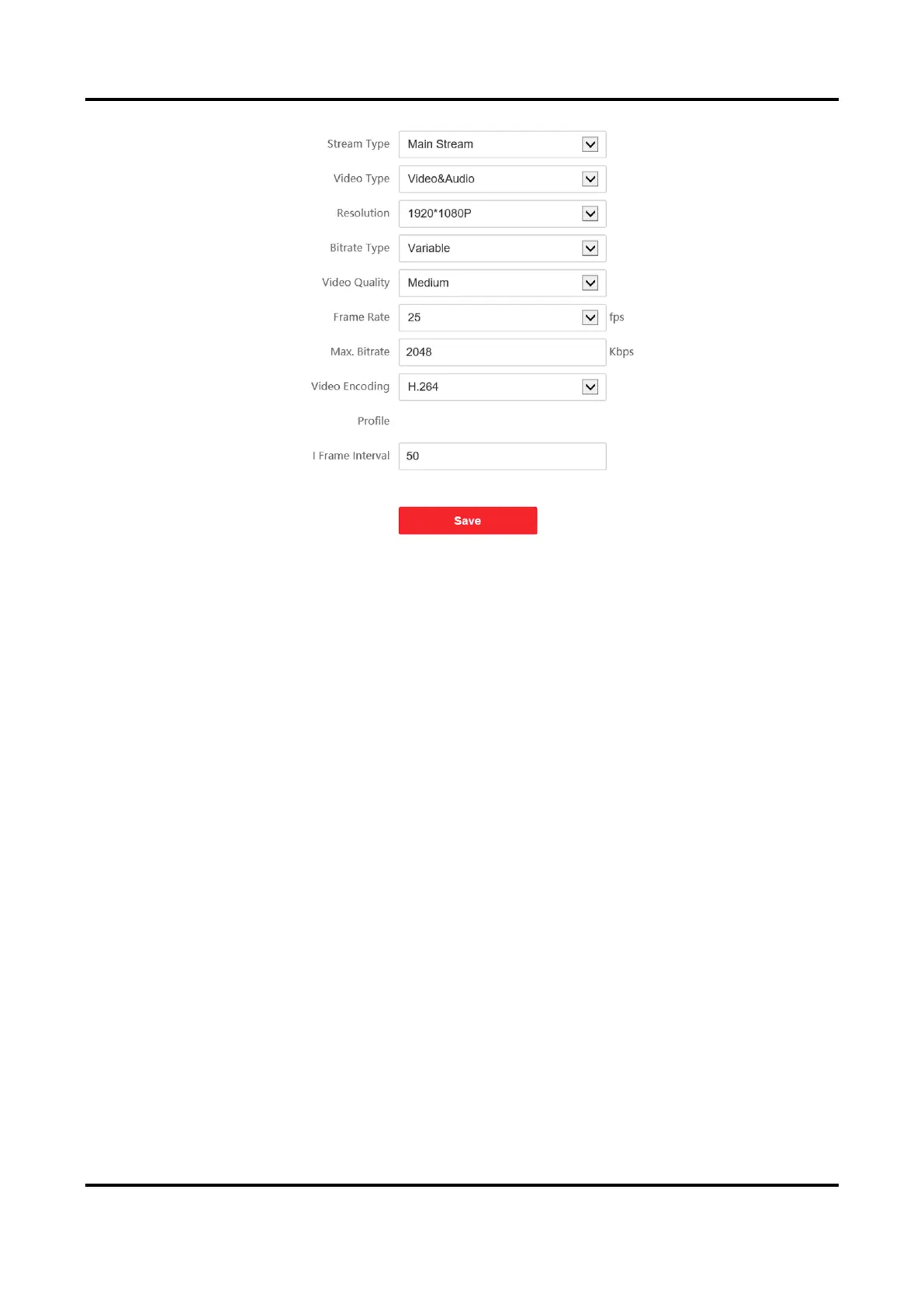

Figure 5-8 Video Parameters
2. Select the Stream Type.
3. Configure the video parameters.
Stream Type
Select the stream type to main stream or sub stream.
Video Type
Select the stream type to video stream, or video & audio composite stream. The audio signal
will be recorded only when the Video Type is Video & Audio.
Resolution
Select the resolution of the video output.
Bitrate Type
Select the bitrate type to constant or variable.
Video Quality
When bitrate type is selected as Variable, 6 levels of video quality are selectable.
Frame Rate
Set the frame rate. The frame rate is to describe the frequency at which the video stream is
updated and it is measured by frames per second (fps). A higher frame rate is advantageous
when there is movement in the video stream, as it maintains image quality throughout.
Max. Bitrate
Set the max. bitrate from 32 to 16384 Kbps. The higher value corresponds to the higher video
quality, but the better bandwidth is required.

HIKVISION DS-KV6113-PE1 Specifications

General

Color	-
Wall mountable	Yes
Connectivity technology	Wired
Megapixel	2 MP
Supported video modes	720p, 1080p
Viewing angle, vertical	75 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	129 °
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RTSP
Product color	Black, Grey
International Protection (IP) code	IP65
LED type	IR
Indoor unit included	No
Outdoor unit power type	DC
Power consumption (typical)	10 W
Operating temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	- \
Operating system installed	Embedded LINUX

Weight and Dimensions

Depth	65 mm
Width	138 mm
Height	27 mm
