Video Intercom Villa Door Station User Manual
28

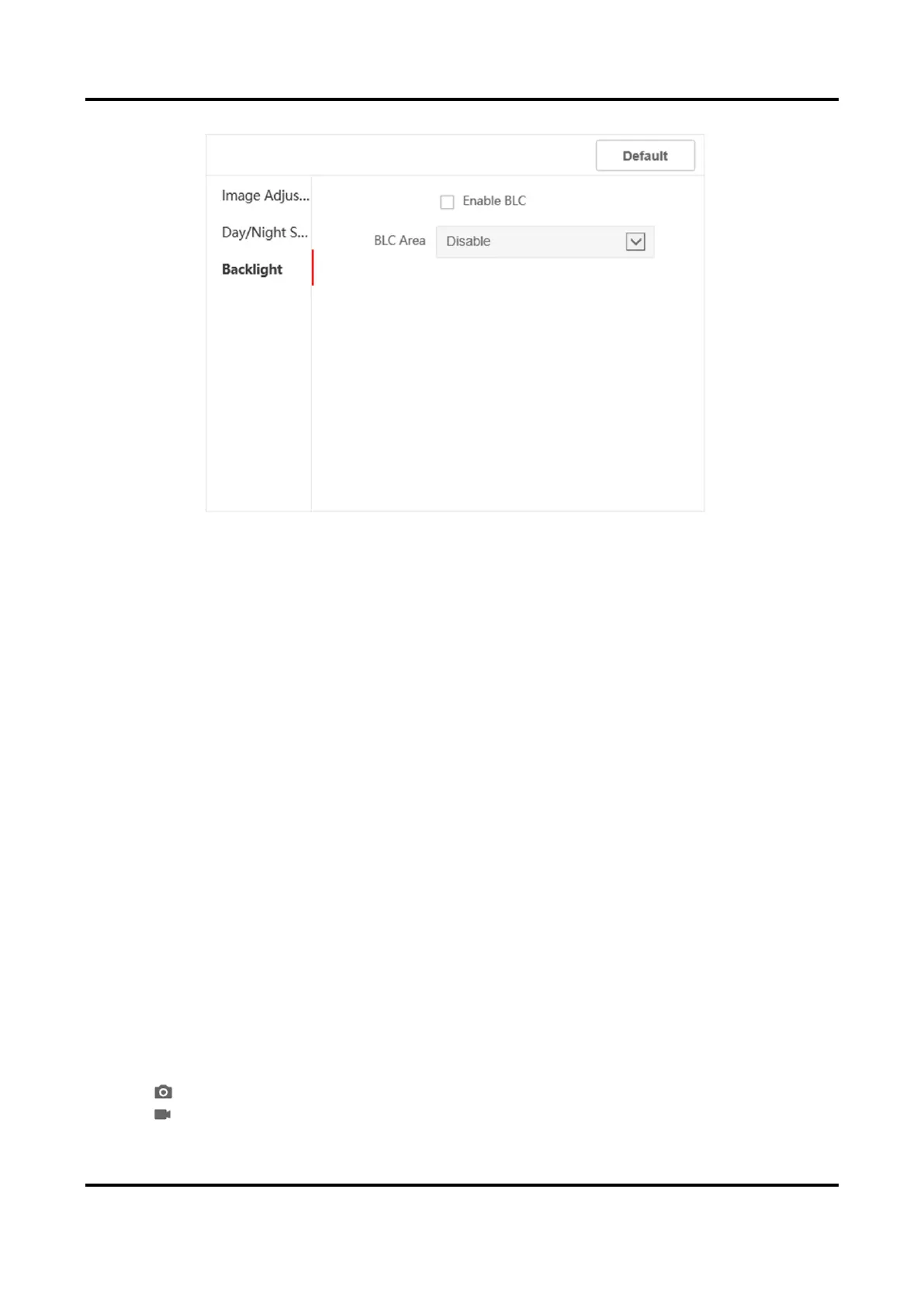

Figure 5-12 Backlight
1) Check the checkbox to enable BLC.
2) Select BLC Area.
6. Click Save to enable the settings.
OSD Settings
You can customize the camera name, time/date format, display mode, and OSD size displayed on
the live view.
Steps
1. Click Image → OSD Settings to enter the settings page.
2. Check the corresponding checkbox to select the display of camera name, date or week if
required.
3. Edit the Camera Name.
4. Select from the drop-down list to set the Time Format and Date Format.
5. Adjust the OSD position.
6. Click Save to enable the settings.
Target Cropping
Steps
1. Click Image.
2. Enable target cropping.
3. Click " " to crop photo.
4. Click " " to crop video.

HIKVISION DS-KV6113-PE1 Specifications

General

Color	-
Wall mountable	Yes
Connectivity technology	Wired
Megapixel	2 MP
Supported video modes	720p, 1080p
Viewing angle, vertical	75 °
Maximum video resolution	1920 x 1080 pixels
Viewing angle, horizontal	129 °
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RTSP
Product color	Black, Grey
International Protection (IP) code	IP65
LED type	IR
Indoor unit included	No
Outdoor unit power type	DC
Power consumption (typical)	10 W
Operating temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	- \
Operating system installed	Embedded LINUX

Weight and Dimensions

Depth	65 mm
Width	138 mm
Height	27 mm
