HIKVISION DS-KV8102-IM - Installation of DS-KV8102-XP; Installation Plate for DS-KV8102-XP

Video Intercom Door Station·Quick Start Guide
6
M4 Screw

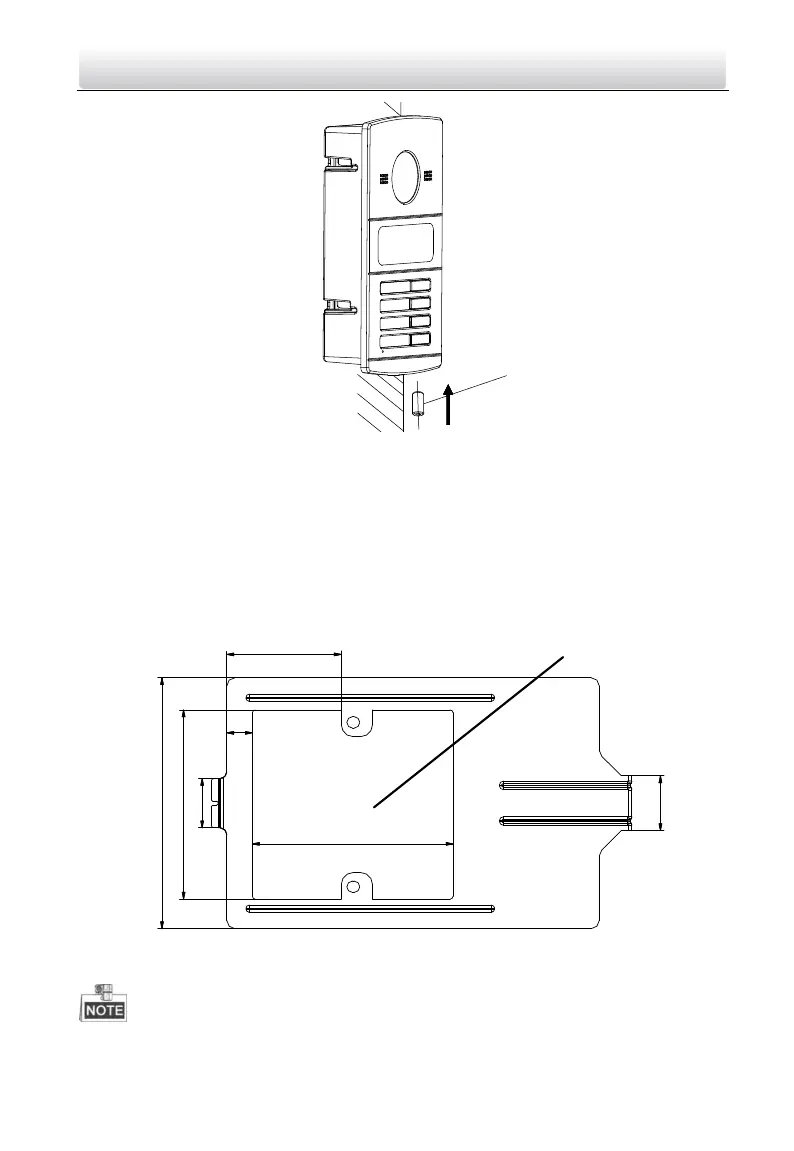

Figure 3-4 Secure the Door Station (DS-KV8X02-IM)
3.2 Installation of DS-KV8102-XP
3.2.1 Installation Plate for DS-KV8102-XP
To install the DS-KV8102-XP model onto the wall, an installation plate and a gang box are
required.
20
69
18
41.48
9.3
72.7
Hollow Area
91.6
Figure 3-5 Dimensions of Installation Plate (DS-KV8102-XP)
