HIKVISION DS-KV8102-IP Quick Start Guide

Video Intercom Door Station·Quick Start Guide
15
 When you edit network parameters remotely, the device should be in the same
network segment.
5.3 Adding Device
The software provides 3 ways for adding the door station (V series). You can add the
active online devices within your subnet, add devices by IP address, or add devices by IP
segment.
Adding online devices and adding device by IP address will be introduced in the quick
start guide. For another way (adding devices by IP segment), please refer to the user
manual in the disk.
5.3.1 Adding Online Devices
Steps:
1. Run the software to enter the main interface of video intercom batch configuration
tool software.

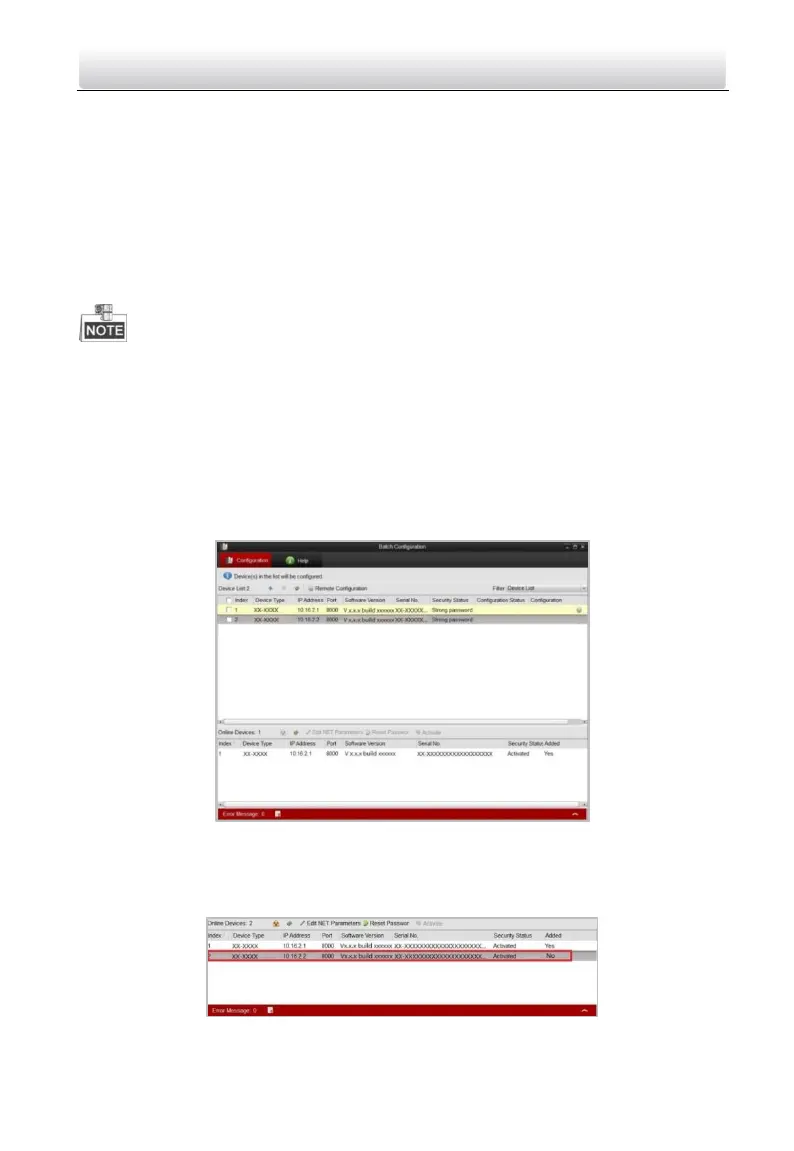

Figure 5-4 Main Interface of Batch Configuration Software
2. Select an online device or hold the Ctrl or Shift key to select multiple devices in the
online devices list in the lower part of the batch configuration software interface.
Figure 5-5 Online Devices Interface

HIKVISION DS-KV8102-IP Specifications

General

Color	Yes
Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	1 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Megapixel	1.3 MP
Sensor type	CMOS
Maximum frame rate	25 fps
Maximum video resolution	1280 x 720 pixels
Proper use	Outdoor
Product color	Gray
Outdoor unit housing material	Plastic
International Protection (IP) code	IP65
LED type	IR
Outdoor unit power type	AC/DC
Power consumption (typical)	12 W
Operating relative humidity (H-H)	10 - 90 %
Door station operating temperature (T-T)	-40 - 70 °C
Operating system installed	Linux
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Indoor unit included	No

Weight and Dimensions

Depth	54.4 mm
Width	97 mm
Height	164 mm
Door station dimensions (WxDxH)	97 x 54.4 x 164 mm
