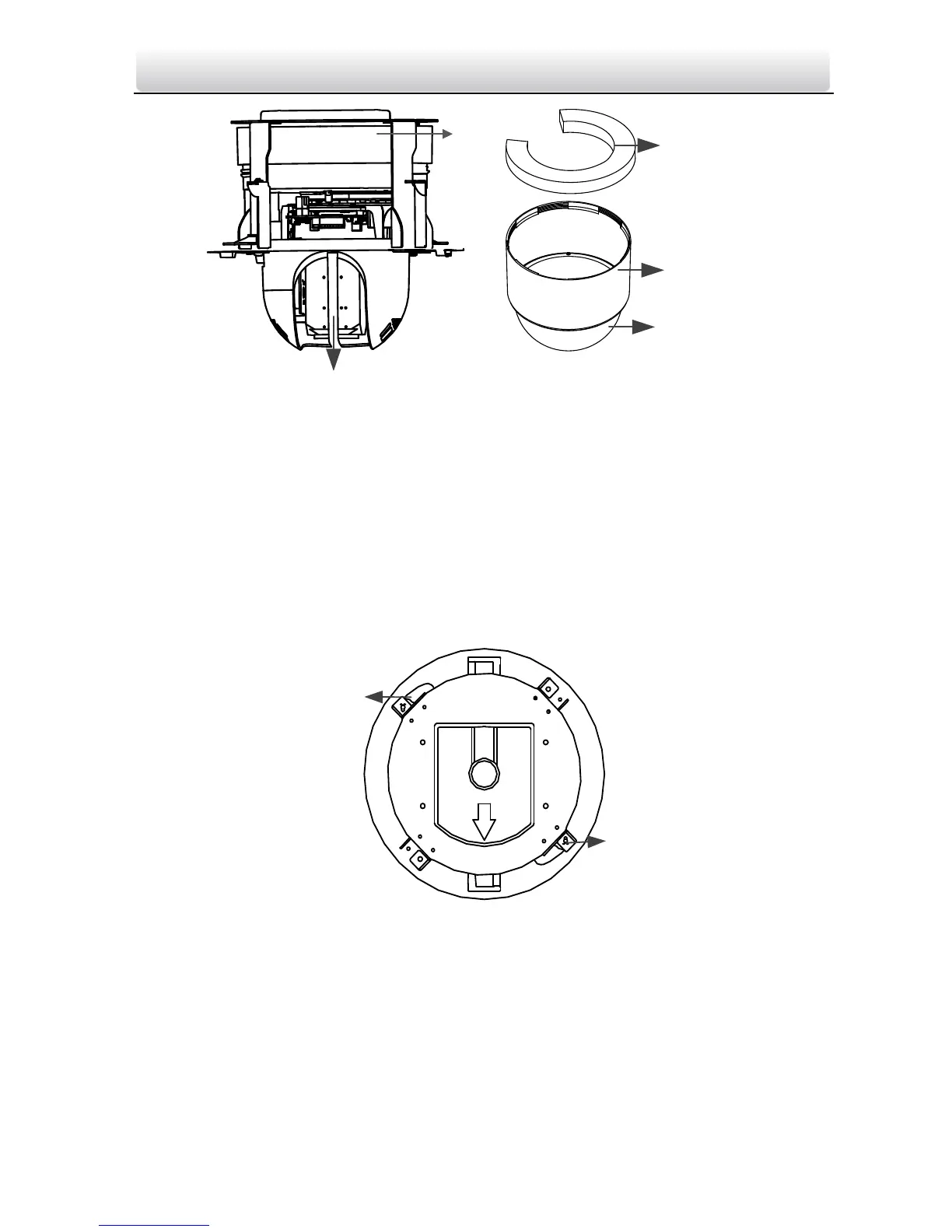

Figure 2-27 Remove the Protective Accessory
5. Connect the cables.
Connect the power cable and the red LED indicator turns on when the power is on.
Note: Please turn the power off after checking the speed dome.
6. Install the speed dome.
Steps:
1). Loosen the two lock screws on both sides of the back box and make the locks in internal
position, as shown in the following figure:
Figure 2-28 Locks and Lock Screws
2). Push the back box into the mounting hole in the ceiling
3). Tighten the lock screws with the screwdriver and the locks will automatically rotate
outwards to secure the in-ceiling mount to the ceiling.
