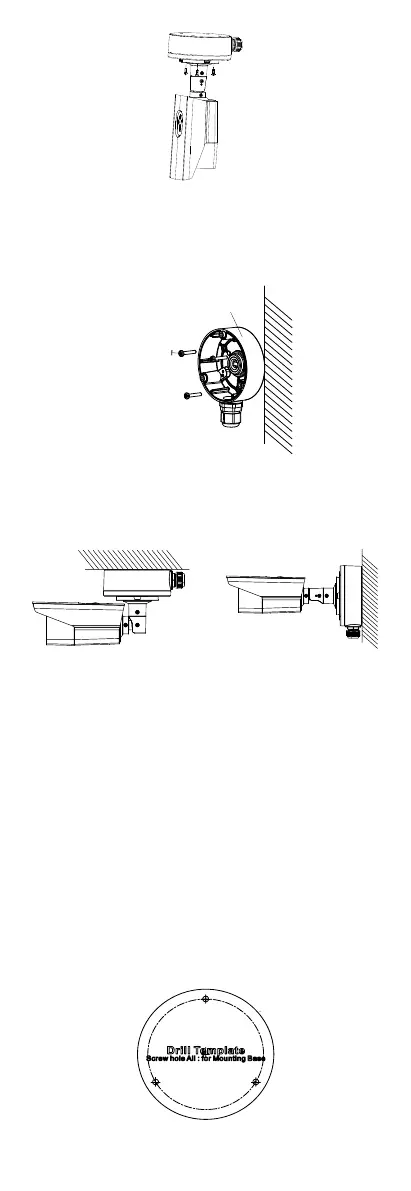

Figure 2-5 Fix the Camera with the Junction Box
5. Attach the junction box’s body to the ceiling by
aligning the screw holes of the junction box.
6. Secure the junction box’s body with supplied screws
on the ceiling.
Figure 2-6 Fix the Camera to the Ceiling
7. Route the cables through the cable hole, or the side
opening of the junction box.
8. Combine the junction box cover with its body.
Figure 2-7 Fix the Junction Box Cover back to its Body
9. Refer to step 6 of 2.1.1 Ceiling Mounting without
Junction Box to complete the installation.
2.2 Installation of Type II Camera
2.2.1 Ceiling Mounting without Junction Box
Before you start:
Both wall mounting and ceiling mounting are suitable for
the turret camera. Ceiling mounting will be taken as an
example in this section. And you can take steps of ceiling
mounting as a reference for wall mounting.
Steps:
1. Paste the drill template to the place where you want
to install the camera.
2. Drill the screw holes according to the drill template
and the cable hole (optional) in the ceiling.
Figure 2-8 Drill Template
