Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
3. Loosen screws to remove the clip plate, and take out
the main body.

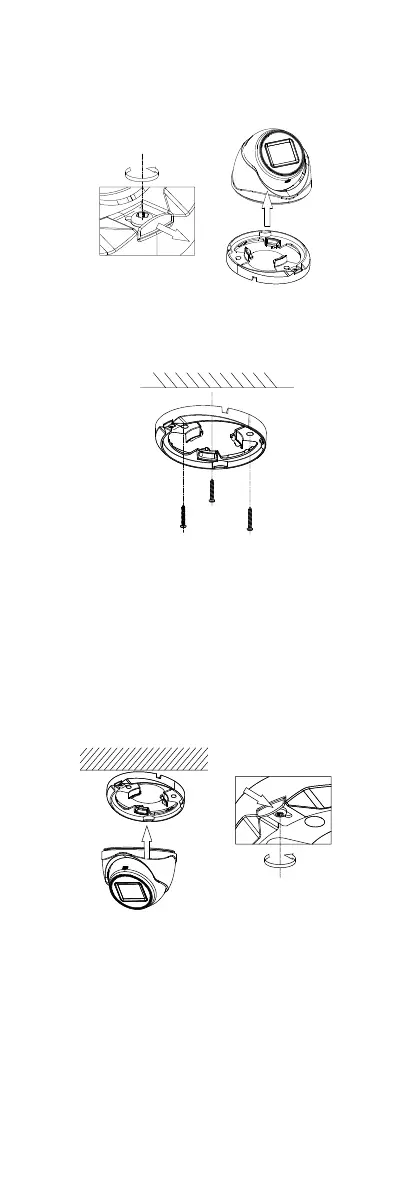

Figure 2-9 Remove the Clip Plate
4. Fix the mounting base on the ceiling with supplied
screws.
Figure 2-10 Fix the Mounting Base on the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall, expansion bolts are required to fix the
camera. For wooden wall, self-tapping screws are
required.
5. Route the cables through the cable hole, or the side
opening.
6. Install the main body to the mounting base and insert
the clip plate.
Figure 2-11 Install the Turret Camera
7. Tighten the screws with the screw driver.
8. Connect the corresponding cables, such as power
cord, and video cable.
9. Power on the camera to check whether the image on
the monitor is gotten from the optimum angle. If not,
adjust the camera according to the figure below to get
an optimum angle.
