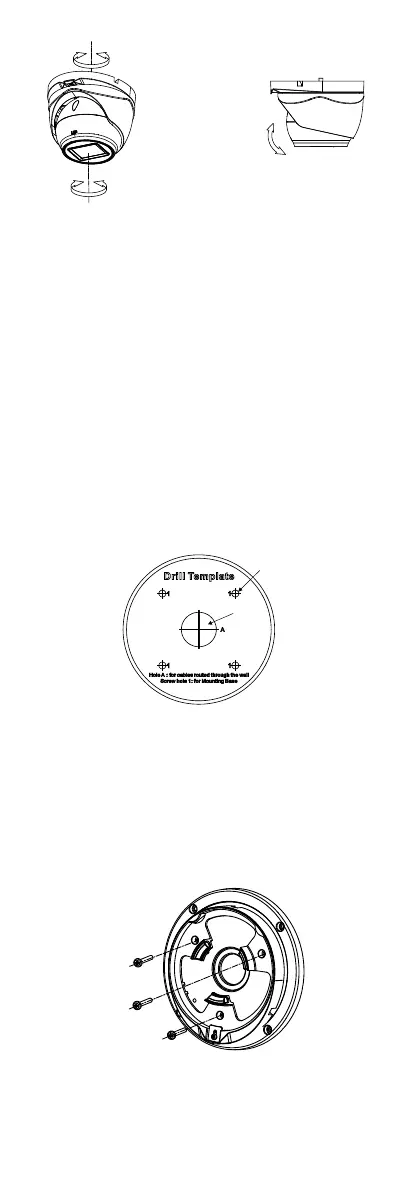

Figure 2-12 3-axis Adjustment
1). Hold the camera body and rotate the enclosure to
adjust the pan position [0° to 360°].
2). Move the camera body up and down to adjust the
tilt position [0° to 75°].
3). Rotate the camera body to adjust the rotation
position [0° to 360°].
2.2.2 Ceiling Mounting with Junction Box
Before you start:
You need to purchase a junction box separately.
Both wall mounting and ceiling mounting are suitable
for the turret camera. Ceiling mounting will be taken as
an example in this section. And you can take steps of
ceiling mounting as a reference for wall mounting.
Steps:
1. Paste the junction box’s drill template on the ceiling.
2. Drill screw holes and the cable hole (optional) in the
ceiling according to the holes of the drill template.
Figure 2-13 Drill Template of the Junction Box
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
3. Refer to step 3 of 2.2.1 Ceiling Mounting without
Junction Box to take out the camera’s main body.
4. Take apart the junction box, and align the screw holes
of the camera with those on the junction box’s cover.
5. Fix the camera’s mounting base on the junction box’s
cover with three PM4 × 10 screws.
Figure 2-14 Secure Screws on Junction Box’s Cover
6. Secure the junction box’s body on the ceiling with four
PA4 × 25 screws.
