HIKVISION HD Series User Manual

Quick Start Guide of Digital Video Recorder
16
DS-7300HFHI-SL
DS-7300HFHI-ST
DS-8100HFHI-SL
DS-8100HFHI-ST

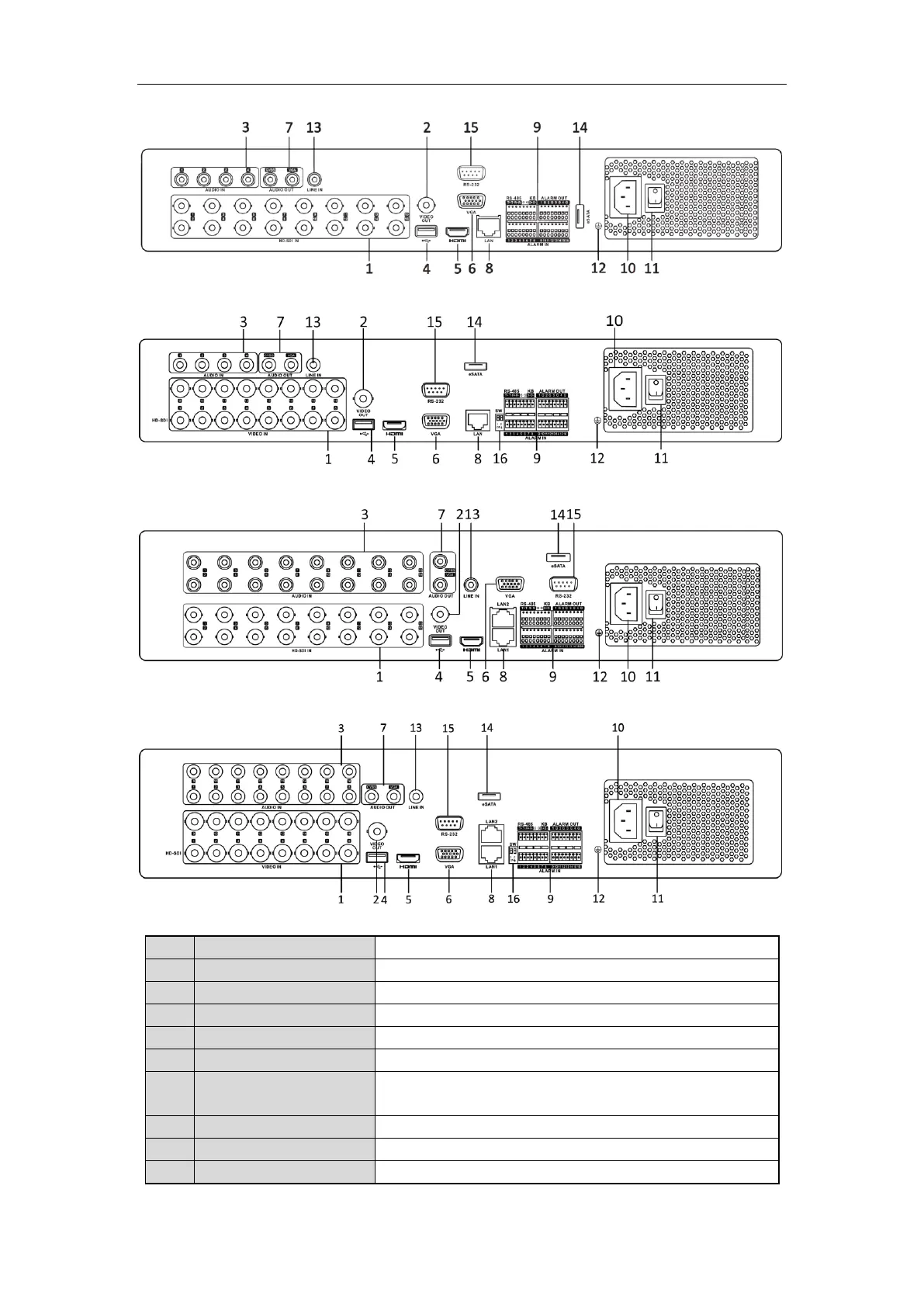

No.
Item
Description
1
VIDEO IN
HD-SDI interface for video input.
2
VIDEO OUT
BNC connector for video output.
3
AUDIO IN
RCA connector
4
USB Port
Universal Serial Bus (USB) port for additional devices.
5
HDMI
HDMI video output connector.
6
VGA
DB15 connector for VGA output. Display local video output and
menu.
7
AUDIO OUT
RCA connector
8
Network Interface
Connector for network
9
RS-485 Interface
Connector for RS-485 devices. T+ and T- pins connect to R+ and R-

HIKVISION HD Series Specifications

General

Operating System	Embedded Linux
Video Input	4/8/16 channels
Video Output	1 channel VGA, 1 channel HDMI
Recording Resolution	1080p
Hard Drive Support	SATA
Audio Input/Output	1 channel input, 1 channel output
Network Interface	RJ45 10/100 Mbps self-adaptive Ethernet interface
USB Interface	USB 2.0
Channels	4/8/16
Compression	H.264+/H.264
Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
