HIKVISION HD Series User Manual

Quick Start Guide of Digital Video Recorder

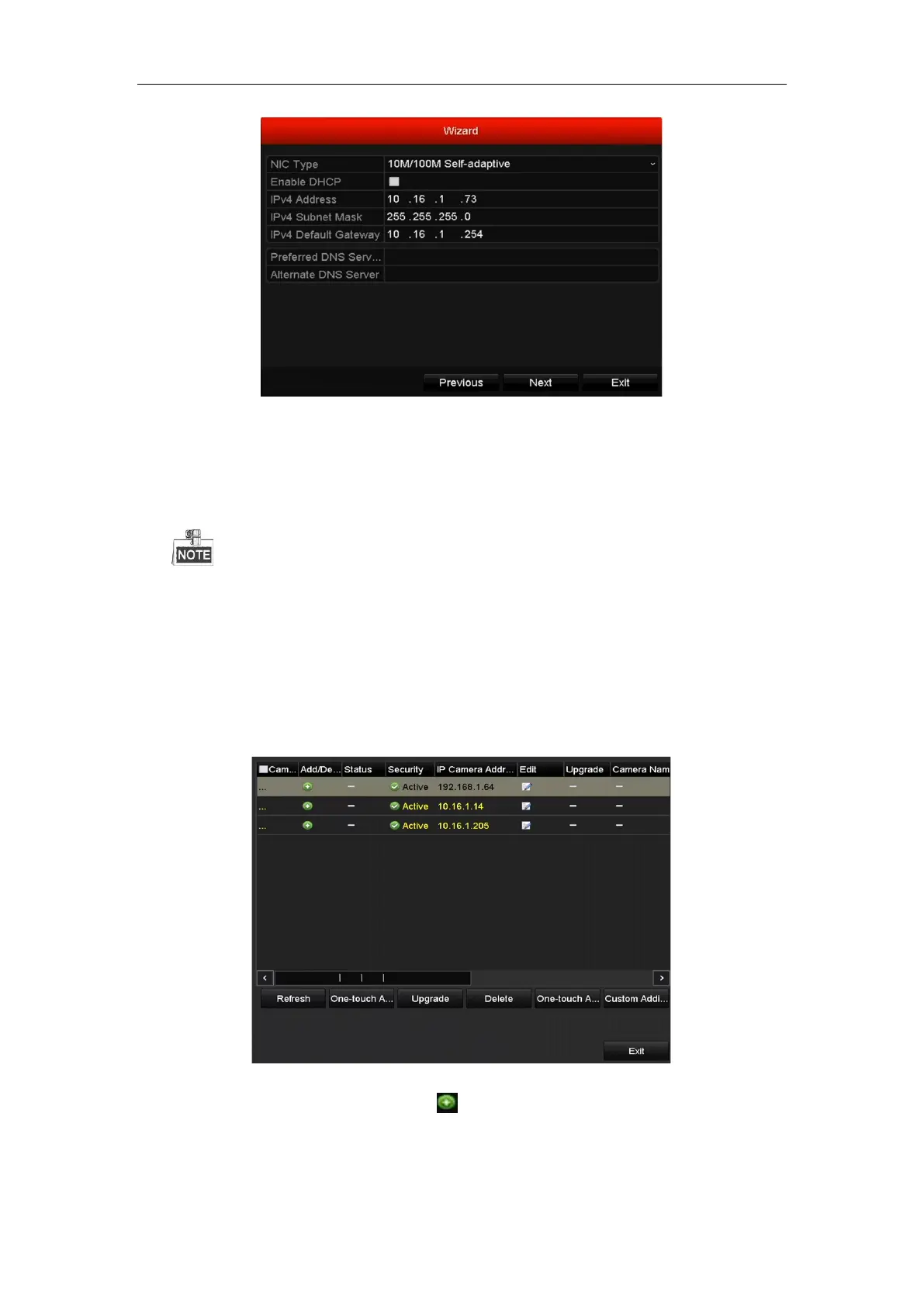

26
2. Select the General tab.
3. In the General Settings interface, you can configure the following settings: Working mode (applicable for
DS-8100HFHI-ST&SL only), NIC Type, IPv4 Address, IPv4 Gateway, MTU and DNS Server.
If the DHCP server is available, you can check the checkbox of DHCP to automatically obtain an IP address
and other network settings from that server.
The valid value of MTU is from 500 to 1500.
4. After having configured the general settings, click the Apply button to save the settings.
Adding IP Cameras
 OPTION 1:
Steps:
1. Select the Add IP Camera option from the right-click menu in live view mode or click Menu> Camera>
Camera to enter the IP camera management interface.
2. The online cameras with same network segment will be detected and displayed in the camera list.
3. Select the IP camera from the list and click the button to add the camera (with the same admin password
of the DVR’s). Or you can click the One-touch Adding button to add all cameras (with the same admin
password) from the list.

HIKVISION HD Series Specifications

General

Operating System	Embedded Linux
Video Input	4/8/16 channels
Video Output	1 channel VGA, 1 channel HDMI
Recording Resolution	1080p
Hard Drive Support	SATA
Audio Input/Output	1 channel input, 1 channel output
Network Interface	RJ45 10/100 Mbps self-adaptive Ethernet interface
USB Interface	USB 2.0
Channels	4/8/16
Compression	H.264+/H.264
Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
