HIKVISION HD Series User Manual

Quick Start Guide of Digital Video Recorder
27
Make sure the camera to add has already been actiavted by setting the admin password, and the admin
password of the camera is the same with the DVR’s.

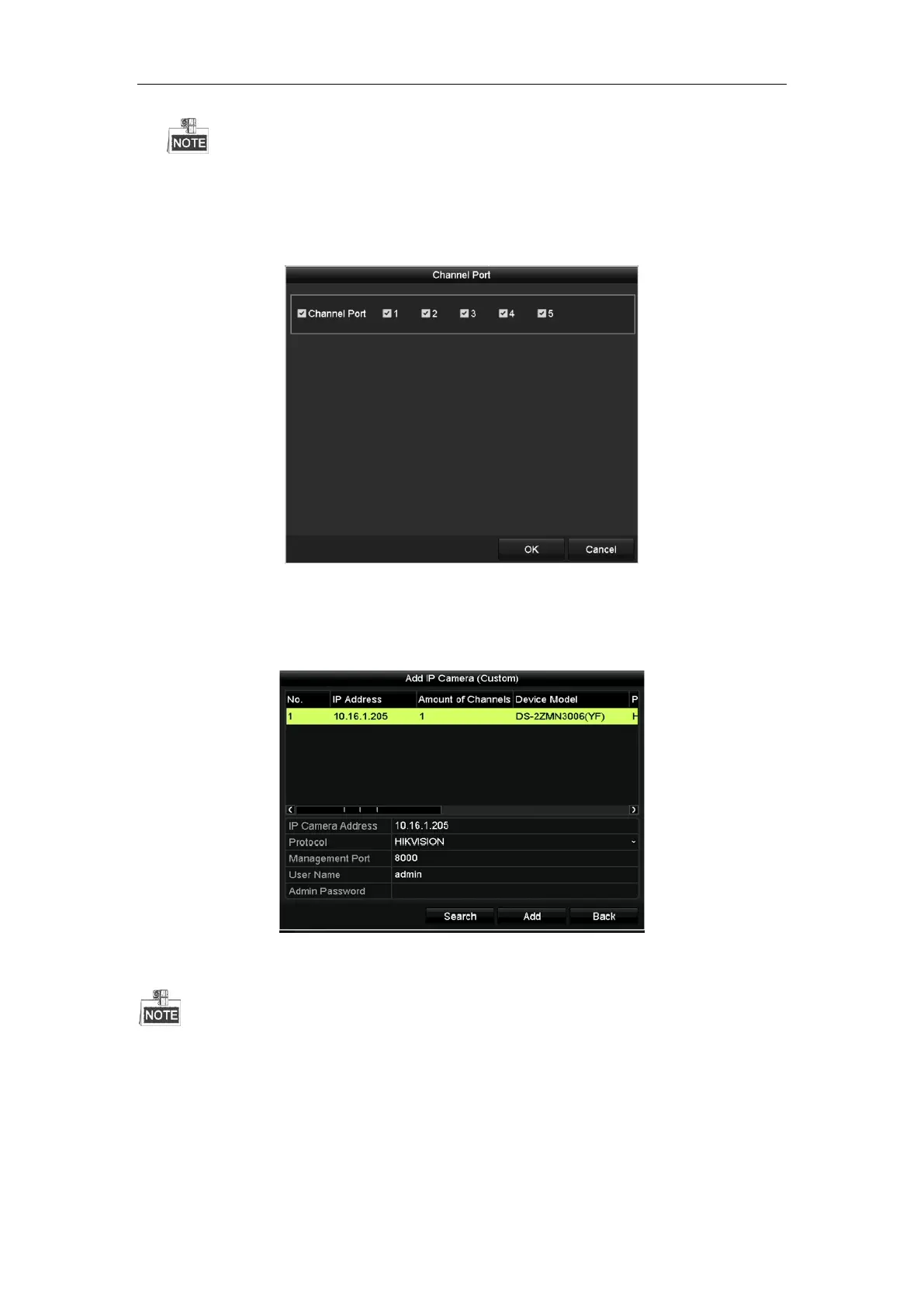

4. (For the encoders with multiple channels only) check the checkbox of Channel Port in the pop-up window, as
shown in the following figure, and click OK to add multiple channels.
 OPTION 2:
Steps:
1) On the IP Camera Management interface, click the Custom Adding button to pop up the Add IP Camera
(Custom) interface.
2) You can edit the IP address, protocol, management port, and other information of the IP camera to be
added.
If the IP camera to add has not been actiavated, you can activate it from the IP camera list on the camera
management interface.
3) Click Add to add the camera.
For the successfully added IP cameras, the Security status shows the security level of the password of camera:
strong password, weak password and risk password.

HIKVISION HD Series Specifications

General

Operating System	Embedded Linux
Video Input	4/8/16 channels
Video Output	1 channel VGA, 1 channel HDMI
Recording Resolution	1080p
Hard Drive Support	SATA
Audio Input/Output	1 channel input, 1 channel output
Network Interface	RJ45 10/100 Mbps self-adaptive Ethernet interface
USB Interface	USB 2.0
Channels	4/8/16
Compression	H.264+/H.264
Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
