HIKVISION HD Series User Manual

Quick Start Guide of Digital Video Recorder
19
3. Connect pluggable block back into terminal block.

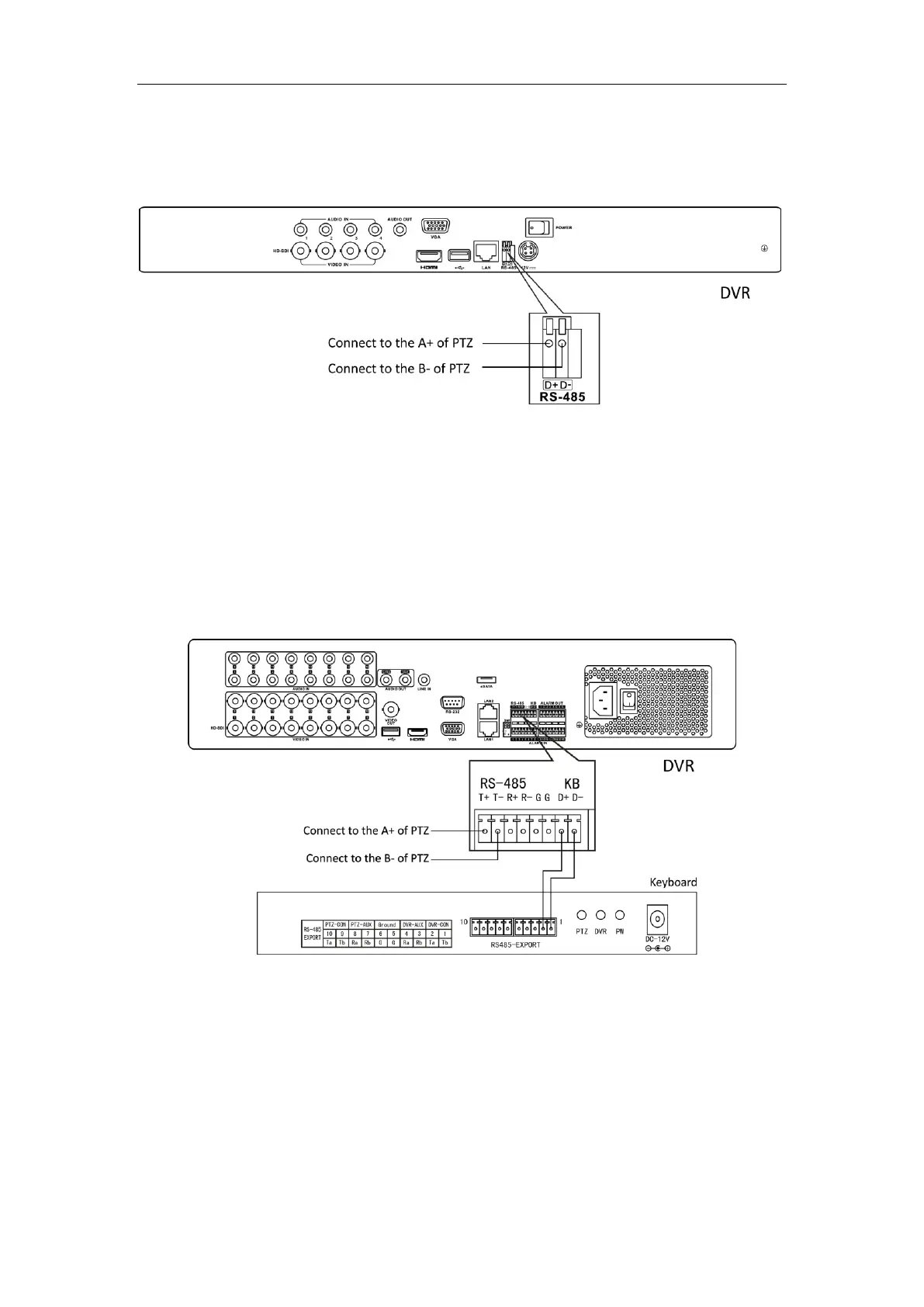

RS-485 and Controller Connection
For DS-7200HFHI-SL, DS-7200HFHI-SE & DS-7200HFHI-ST
To connect PTZ to the DVR:
1. Disconnect pluggable block from the RS-485 terminal block.
2. Press and hold the orange part of the pluggable block; insert signal cables into slots and release the orange
part. Ensure signal cables are in tight.
3. Connect A+ on PTZ to D+ on terminal block and B- on controller to D- on terminal block. Fasten stop
screws.
4. Connect pluggable block back into terminal block.
For DS-7300HFHI-ST&SL & DS-8100HFHI-ST&SL
To connect PTZ to the DVR:
1. Disconnect pluggable block from the RS-485 terminal block.
2. Press and hold the orange part of the pluggable block; insert signal cables into slots and release the orange
part. Ensure signal cables are in tight.
3. Connect A+ on PTZ to T+ on terminal block and B- on controller to T- on terminal block. Fasten stop
screws.
4. Connect pluggable block back into terminal block.
To connect a controller to the DVR:
1. Disconnect pluggable block from the KB terminal block.

HIKVISION HD Series Specifications

General

Operating System	Embedded Linux
Video Input	4/8/16 channels
Video Output	1 channel VGA, 1 channel HDMI
Recording Resolution	1080p
Hard Drive Support	SATA
Audio Input/Output	1 channel input, 1 channel output
Network Interface	RJ45 10/100 Mbps self-adaptive Ethernet interface
USB Interface	USB 2.0
Channels	4/8/16
Compression	H.264+/H.264
Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
