Digital Video Recorder User Manual
114
Chapter 8 Alarm Settings
8.1 Setting Motion Detection
Step 1 Go to Menu > Camera > Motion.

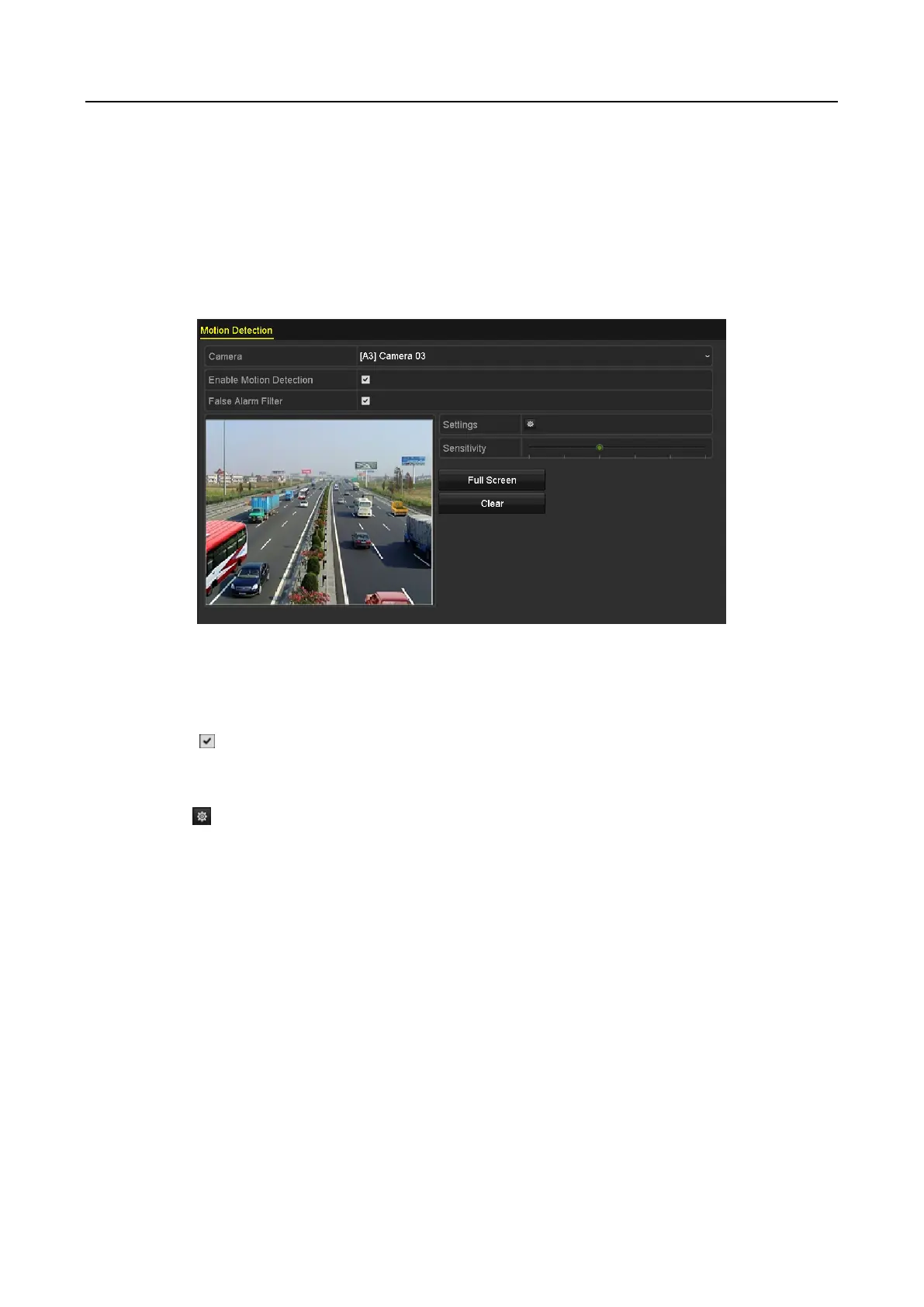

Figure 8-1 Motion Detection Setup Interface
Step 2 Select a camera you want to set up motion detection.
Step 3 Set detection area and sensitivity.
Check checkbox to enable motion detection. Use the mouse to draw detection area(s) or
click Full Screen to set the detection area to be the full screen and drag the sensitivity bar to
set sensitivity.
Click to set alarm response actions.
