Digital Video Recorder User Manual
119

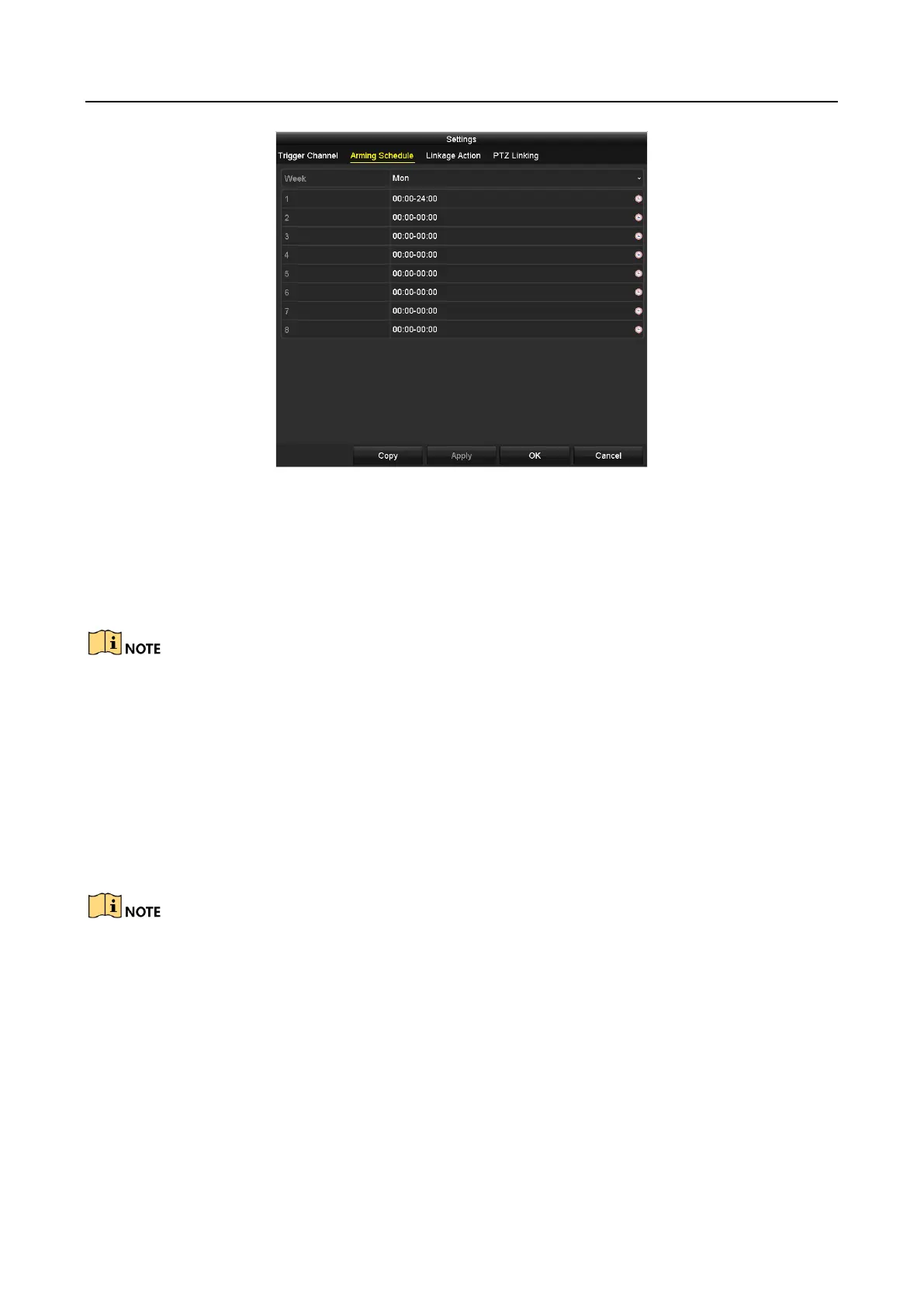

Figure 8-8 Set Arming Schedule of Alarm Input
Step 11 Select Trigger Channel tab and select one or more channels which will start to record or
become full-screen monitoring when an external alarm input is triggered.
Step 12 Select Arming Schedule tab to set the channel’s arming schedule.
Select one day of a week and maximum eight time periods can be set within each day.
Time periods shall not be repeated or overlapped.
Step 13 Select Linkage Action tab to set up alarm response actions of the alarm input (Refer to
Chapter 8.8 Setting Alarm Response Actions).
Repeat the above steps to set up arming schedule of other days of a week. You can also use
Copy button to copy an arming schedule to other days.
Step 14 (Optional) Select PTZ Linking tab and set PTZ linkage of the alarm input.
Set PTZ linking parameters and click the OK button to complete the settings of the alarm
input.
Check whether the PTZ or speed dome supports PTZ linkage.
One alarm input can trigger presets, patrol or pattern of more than one channel. But presets, patrols
and patterns are exclusive.
