Digital Video Recorder User Manual
31
3) (Optional) Check the checkbox of Enable Pattern Unlock and draw the unlock pattern.
Or click of Draw Unlock Pattern to change the pattern. Refer to Chapter 2.3
Using the Unlock Pattern for Login for reference.
4) (Optional) Click of Export GUID to export GUID to the connected USB flash
drive for resetting password. Refer to Chapter 17.5.3 Editing a User for reference.

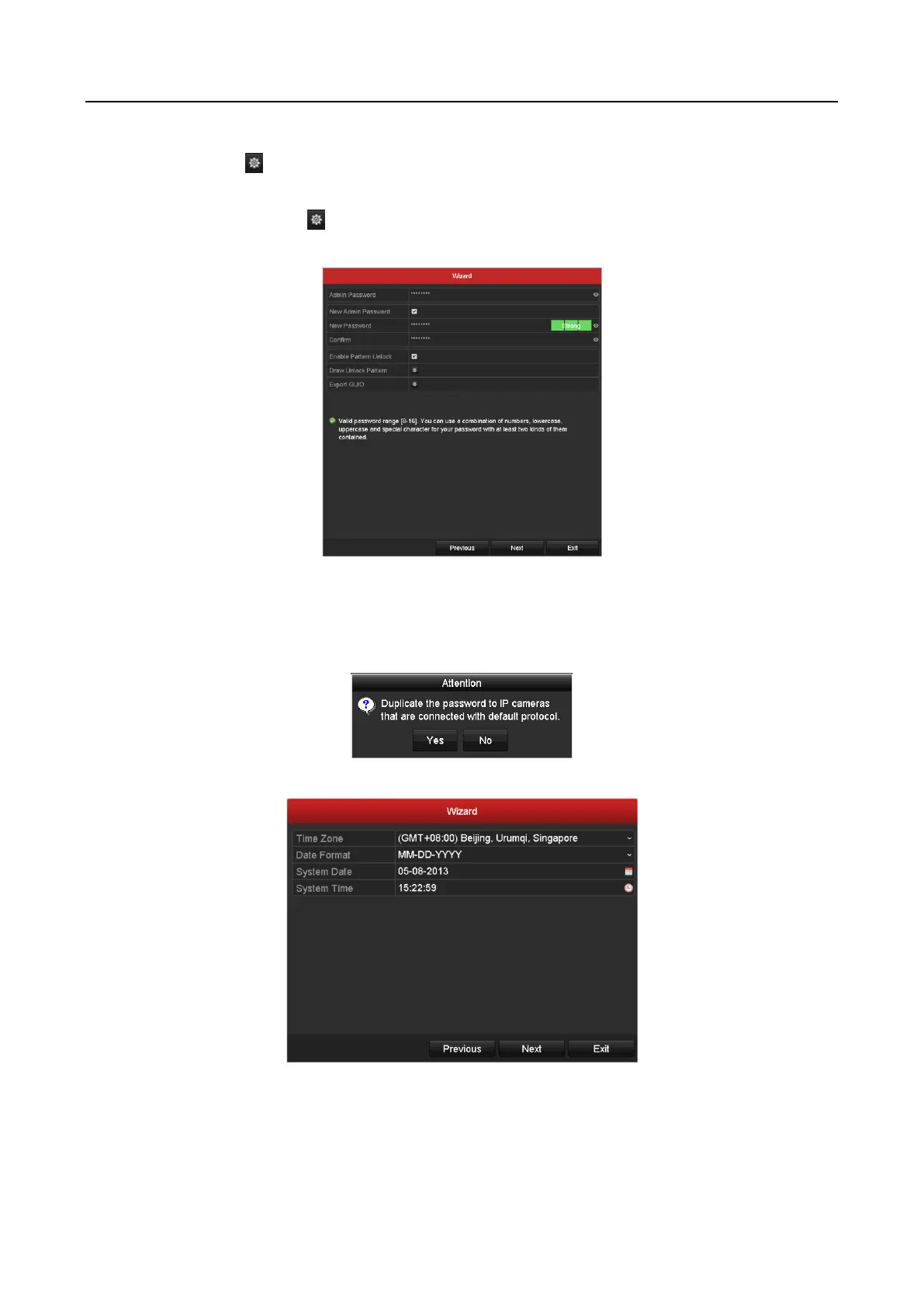

Figure 2-17 Change the Password
Step 3 Click Next button and the Attention box pops up as shown below. Click Yes to duplicate the
password of the device to IP cameras that are connected with default protocol. Or click No
to enter the Date and Time Settings interface.
Figure 2-18 Duplicate the Password
Figure 2-19 Date and Time Settings
Step 4 After the time settings, click Next button to enter the General Network Setup Wizard
interface as shown below.
