Figure 2-12 Fix the Body of Inclined Base on Ceiling/Wall
6. Combine the cover of inclined base with its body with supplied
screws.
7. Repeat steps 5 to 8 of 2.2 Ceiling Mounting to complete the
installation.
Wall Mounting
Note:
You need to purchase a wall mounting bracket separately.
Steps:
1. Drill four Ø10 mm screw holes in the wall according to the holes
of the bracket.
2. Install the bracket on the wall by aligning the four screw holes of
the bracket with M6 expansion screws on the wall.

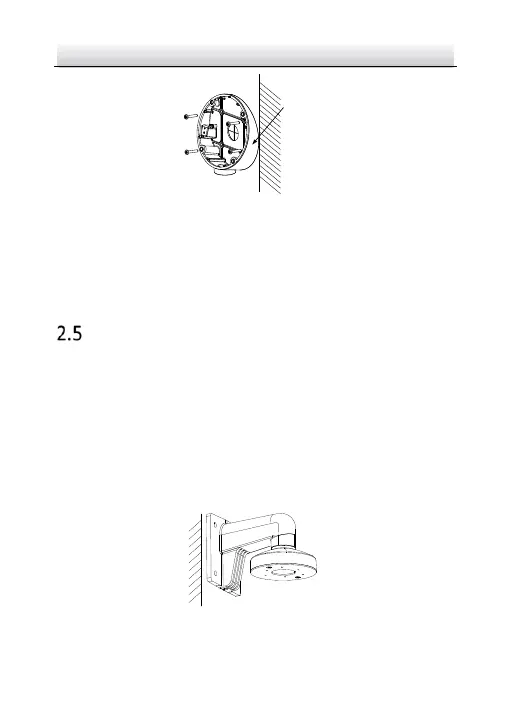

Figure 2-13 Install the Wall Mounting Bracket
