1) Align the head cover with the bracket, and rotate the head cover clockwise or
anticlockwise, then secure the two lock screws with the wrench as shown in
Figure 2-12.

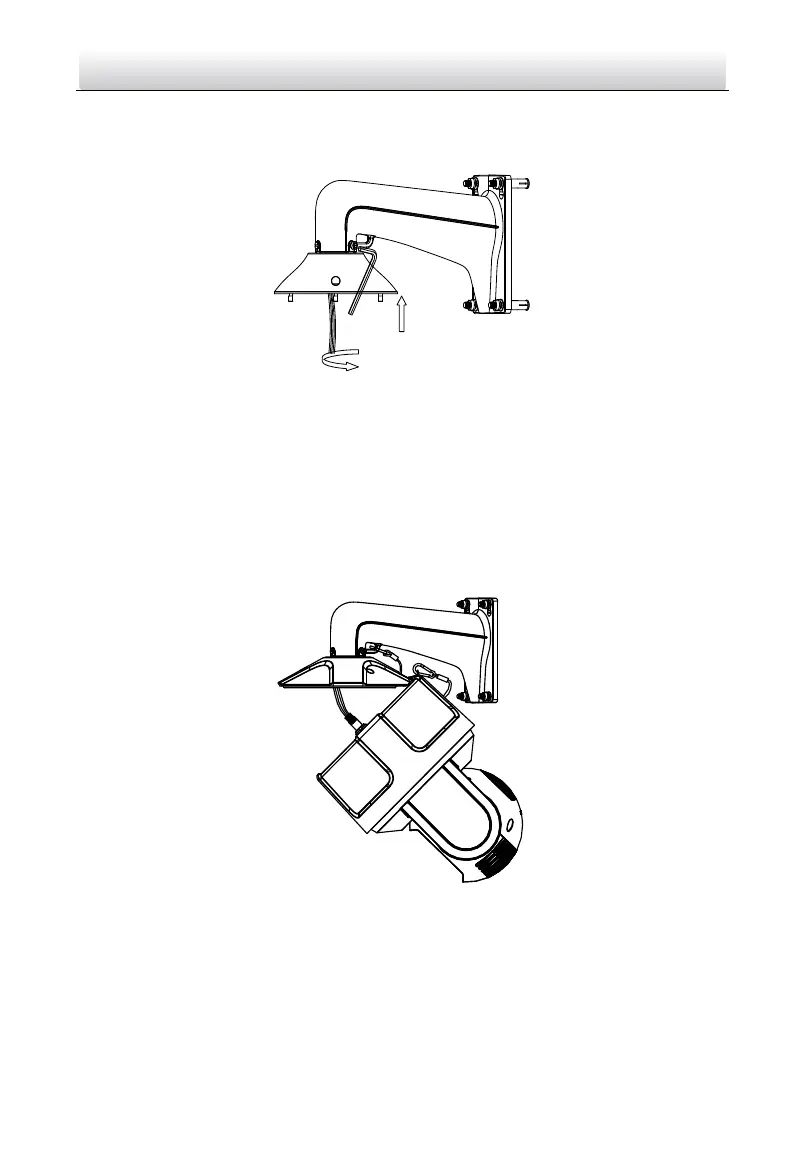

Figure 2-12 Install the Head Cover
2) Hang the safety rope to the speed dome and the hook on the bracket.
3) Hitch the speed dome onto the head cover with the hook on the back box.
4) Route the cables through the head cover and the bracket body, and connect the
corresponding cables.
Notes:
Water-proof treatment is required for cable connectors. Refer to Section 2.5
and 2.6 for details.
After cable connection, put the cables into the head cover.
Figure 2-13 Hang the Speed Dome
5) Align the back box of the speed dome with the head cover.
6) Tighten the lock screws to secure the speed dome with the wrench.
To Next Page
