HIKVISION iDS-9600NXI-I16/4F Series Quick Start Guide

Network Video Recorder Quick Start Guide
23
1.2.6 iDS-9600NXI-I8/4F(B)

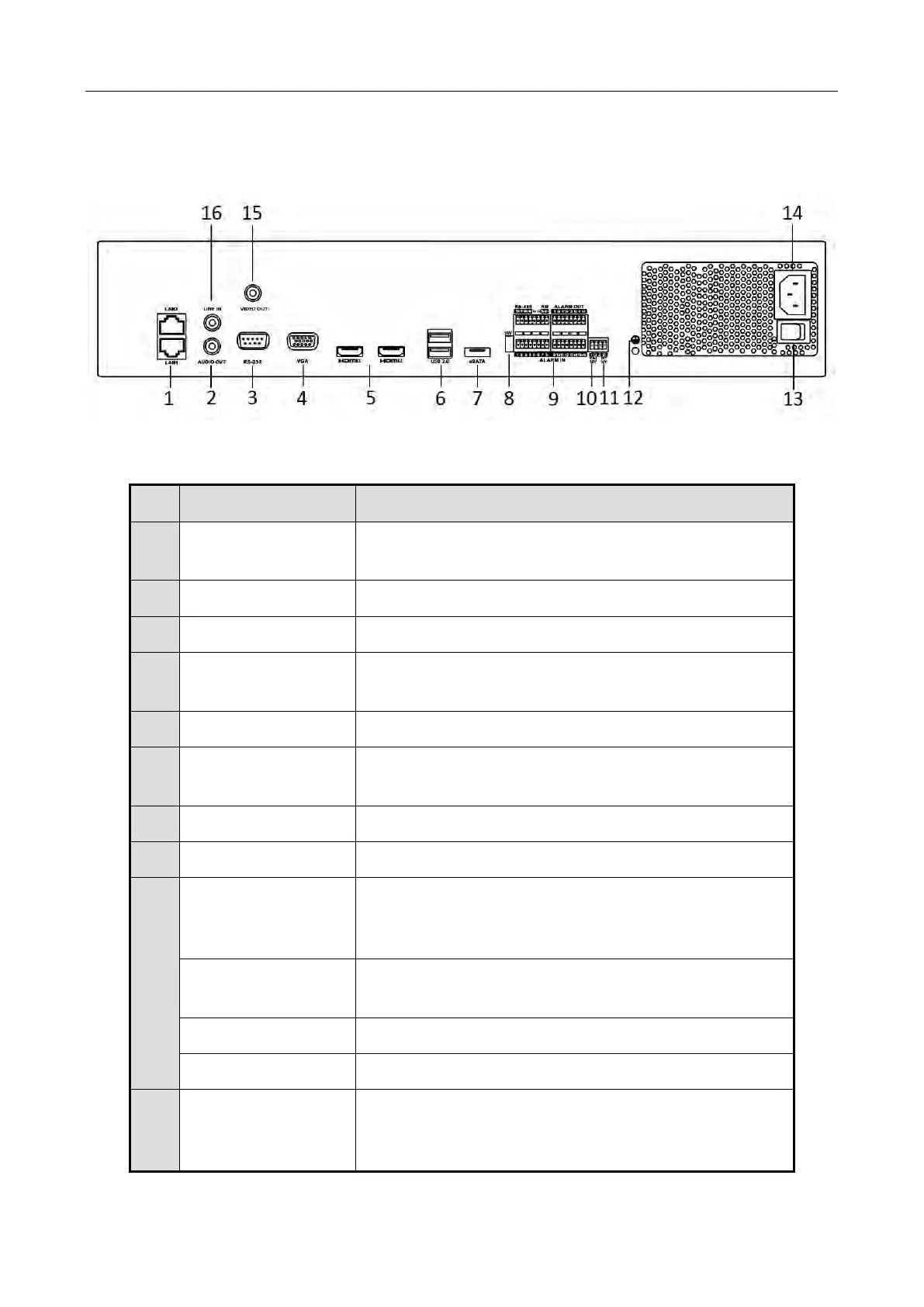

Figure 1-16 Rear Panel
Table 1-14 Panel Description
No.
Name
Description
1
LAN1/LAN2 interface
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interfaces provided.
2
AUDIO OUT
2 RCA connectors for audio output.
3
RS-232 interface
Connector for RS-232 devices.
4
VGA
DB9 connector for VGA output. Display local video
output and menu.
5
HDMI1/HDMI2
HDMI video output connector.
6
USB 3.0 interfaces
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
7
eSATA
Connects external SATA HDD, CD/DVD-RM.
8
SW
SW dial switch
9
Controller port
D+, D- pin connects to Ta, Tb pin of controller. For
cascading devices, the first NVR’s D+, D- pin should be
connected with the D+, D- pin of the next NVR.
RS-485
RS-485 serial interface; connect to pan/tilt unit, speed
dome, etc.
ALARM IN
Alarm input interface.
ALARM OUT
Alarm output interface.
10
Ctrl 12V
Controllable 12 VDC, 1 A power output for external
alarm device. The power will be turned on when the
alarm output is triggered.
