HIKVISION KD3 Series Quick Start Guide

Video Intercom Door Station·Quick Start Guide
11

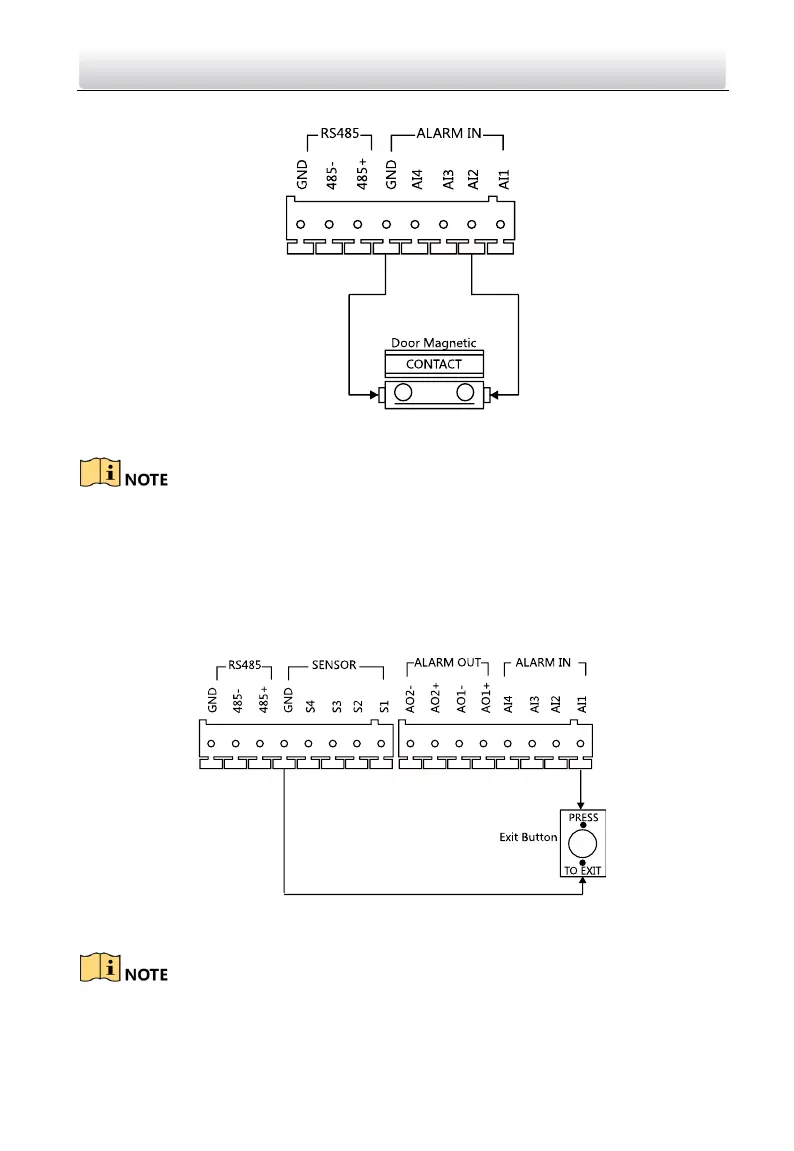

Door Magnetic Wiring for DS-KD3002-VM
Figure 2-6 Door Magnetic Wiring for DS-KD3002-VM
To connect the door magnetic, it is required to set the output of terminal AI2 to be
door magnetic with Batch Configuration Tool or iVMS-4200.
2.2.3 Exit Button Wiring
Exit Button Wiring for DS-KD8102-V/DS-KD8002-VM
For DS-KD8102-V/DS-KD8002-VM, there are two optional ways of exit button wiring.
Figure 2-7 Exit Button Wiring for DS-KD8102-V/DS-KD8002-VM (1)
To connect the exit button, it is required to set the output of terminal AI1 to be exit
button with Batch Configuration Tool or iVMS-4200.
