HIKVISION N4225IH-DE User Manual

Digital Video Recorder User Manual
188
Chapter 14 DVR Management and Maintenance
14.1 Viewing System Information
Step 1 Go to Menu > Maintenance > System Info.
Step 2 You can click the Device Info, Camera, Record, Alarm, Network and HDD tabs to view
the system information of the device.

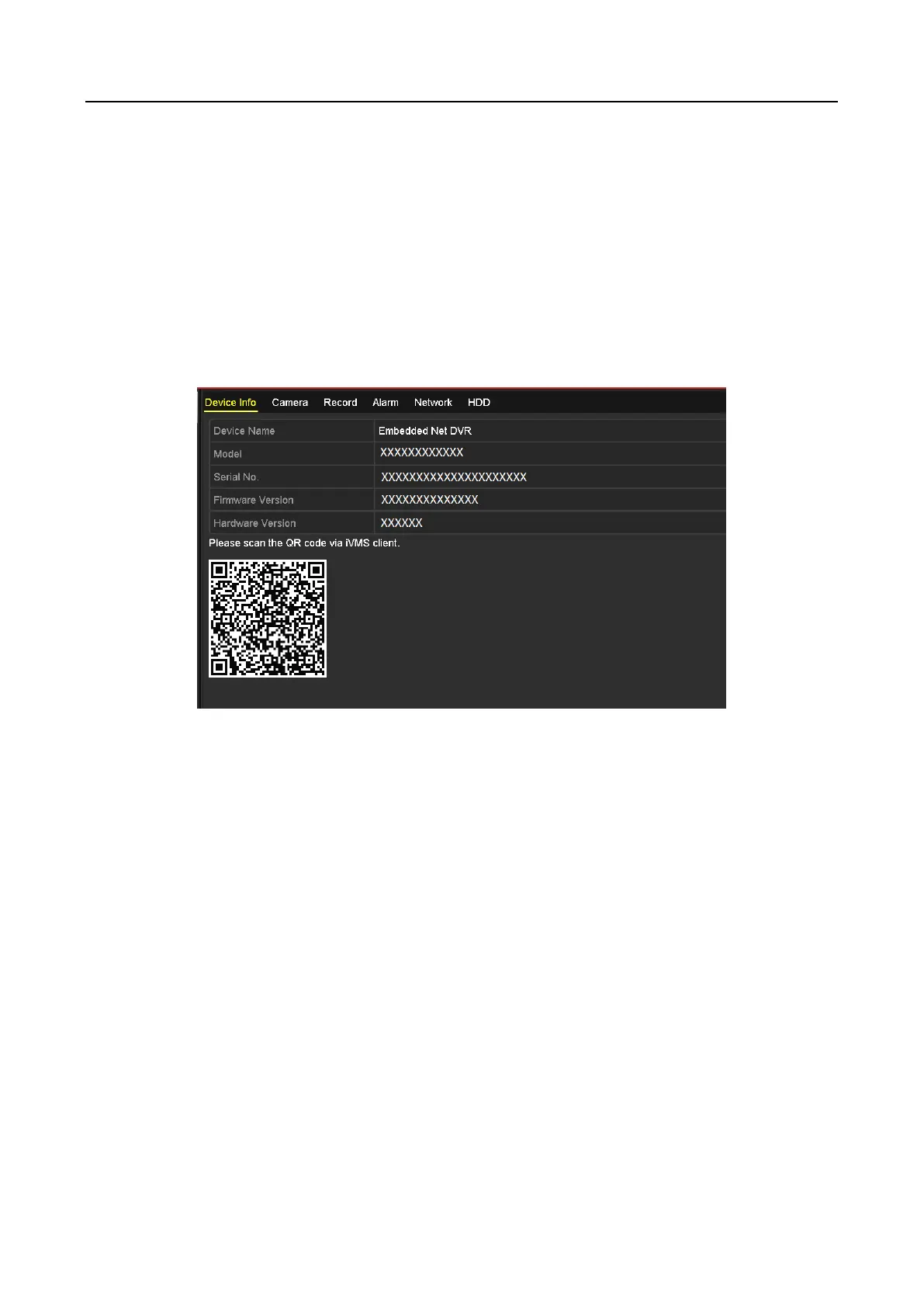

Figure 14-1 System Information Interface
14.2 Searching Log Files
Purpose
The operation, alarm, exception and information of the DVR can be stored in log files, which can be
viewed and exported at any time.
Step 1 Go to Menu > Maintenance > Log Information.

HIKVISION N4225IH-DE Specifications

General

Model	N4225IH-DE
Category	Security Camera
IR Range	Up to 30m
WDR	120dB
Video Compression	H.265+/H.265/H.264+/H.264
Ingress Protection	IP67
Image Sensor	1/2.8" Progressive Scan CMOS
Lens	2.8 mm
Power Supply	12 VDC ± 25%
Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F), humidity: ≤ 95%, non-condensing
Network Interface	RJ45 10M/100M Ethernet
Day/Night	ICR
