HIKVISION Network Dome Camera User Manual

Installation Manual of Network Dome Camera
4

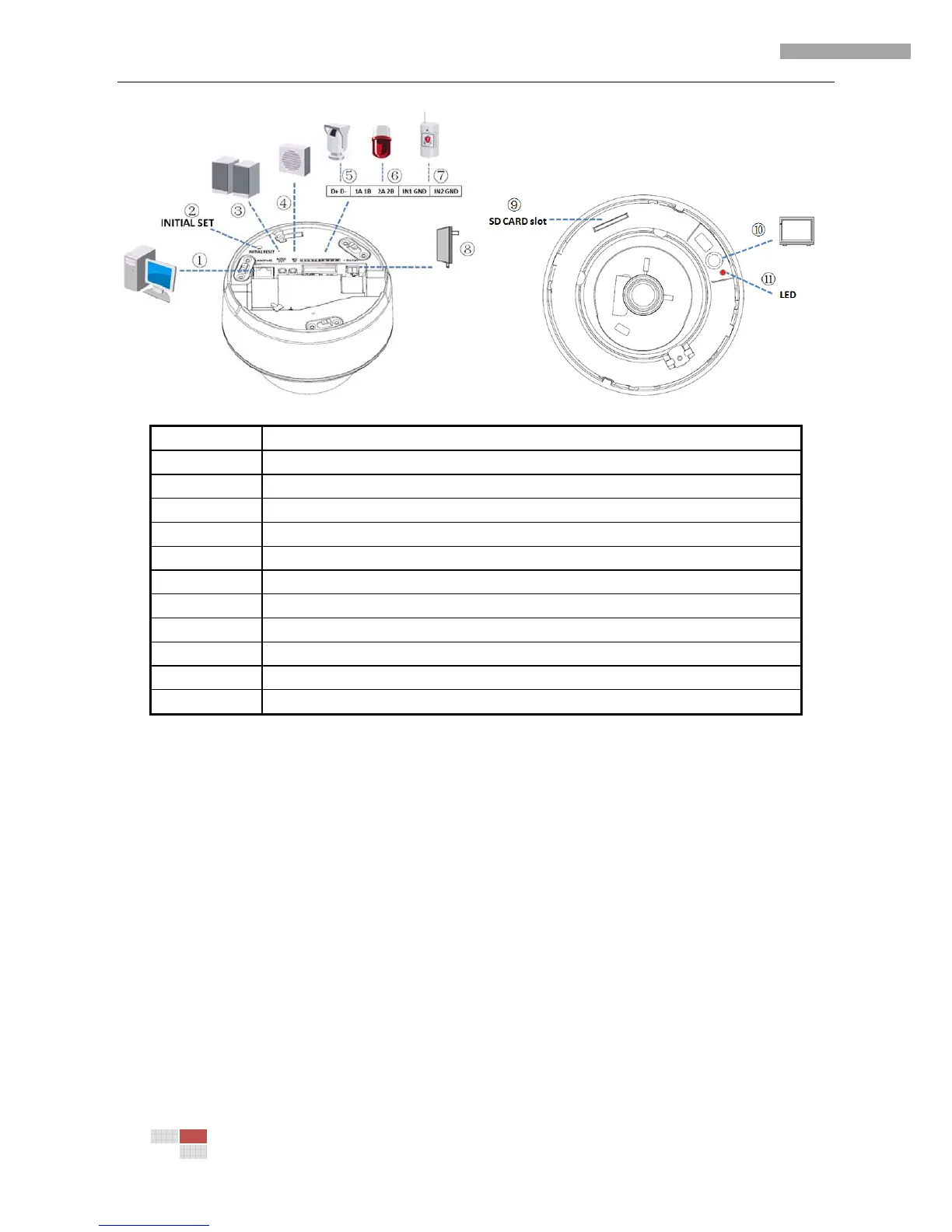

Serial NO. Description
1 LAN(PoE): 10M/100M self-adaptive Ethernet interface
2 INITIAL SET: Reset all parameters to factory default settings.
3 AUDIO OUT: Audio output interface
4 MIC IN: Audio input interface
5 D+, D-: RS-485 interface
6 1A 1B, 2A 2B: Alarm output interface
7 IN1 GND, IN2 GND: Alarm input interface
8 Power supply
9 SD card slot
10 Video output interface
11 Power LED indicator, which turns red when power is applied to the unit
NOTE:
When the camera is power up, press the “INITIAL SET” button for about 10 seconds,
then all parameters, including user name, password, IP address, port number, etc., will
be reset to the factory default settings.
The alarm input is a NO/NC relay. If the input is not a NO/NC relay, follow the
connection diagram below:
Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©

HIKVISION Network Dome Camera Specifications

General

Lens	Varies by model (e.g., 2.8mm, 4mm, 6mm fixed lens; varifocal lens options available)
IR Range	Up to 30m (varies by model)
Video Compression	H.265+/H.265/H.264+/H.264
Power Supply	PoE (802.3af)
Operating Conditions	-30°C to 60°C (-22°F to 140°F)
Wide Dynamic Range (WDR)	120 dB
Ingress Protection	IP67
Vandal Resistance	IK10
Network Interface	RJ45 10/100Mbps Ethernet
Humidity	95% or less (non-condensing)
