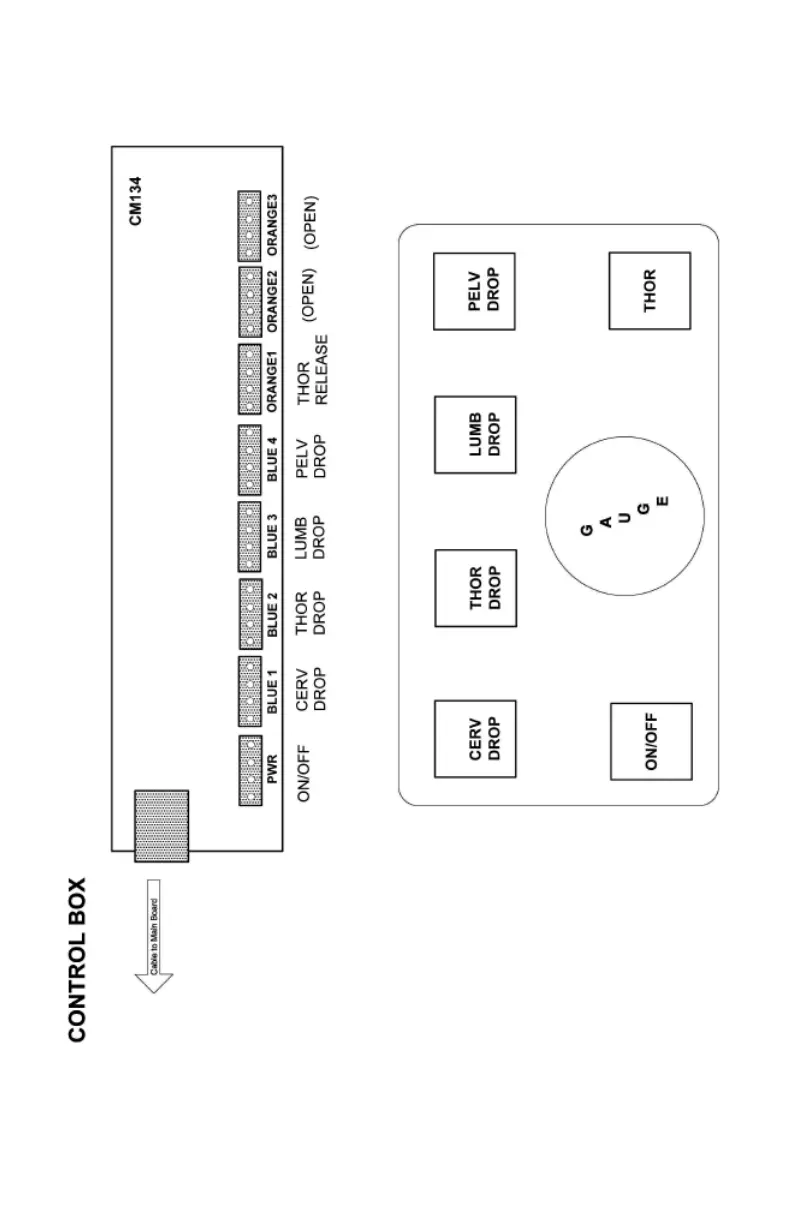

Wiring Diagram - AFT, 24VDC, Part 2
Air System for all AFT Models.
Important:
Air functions on this table are controlled by a circuit board and
low voltage valves. Since electrical spikes, surges and undervolt-
age can be detrimental to electronic components, we recom-
mend protecting your table with an automatic voltage regulator.
While a voltage regulator will not guareantee parts against failure,
it could save you the cost of parts as well as table downtime.
The APC LE1200 voltage regulator is one example of a device
that would provide a minimum level of protection.
To Next Page
