Operations

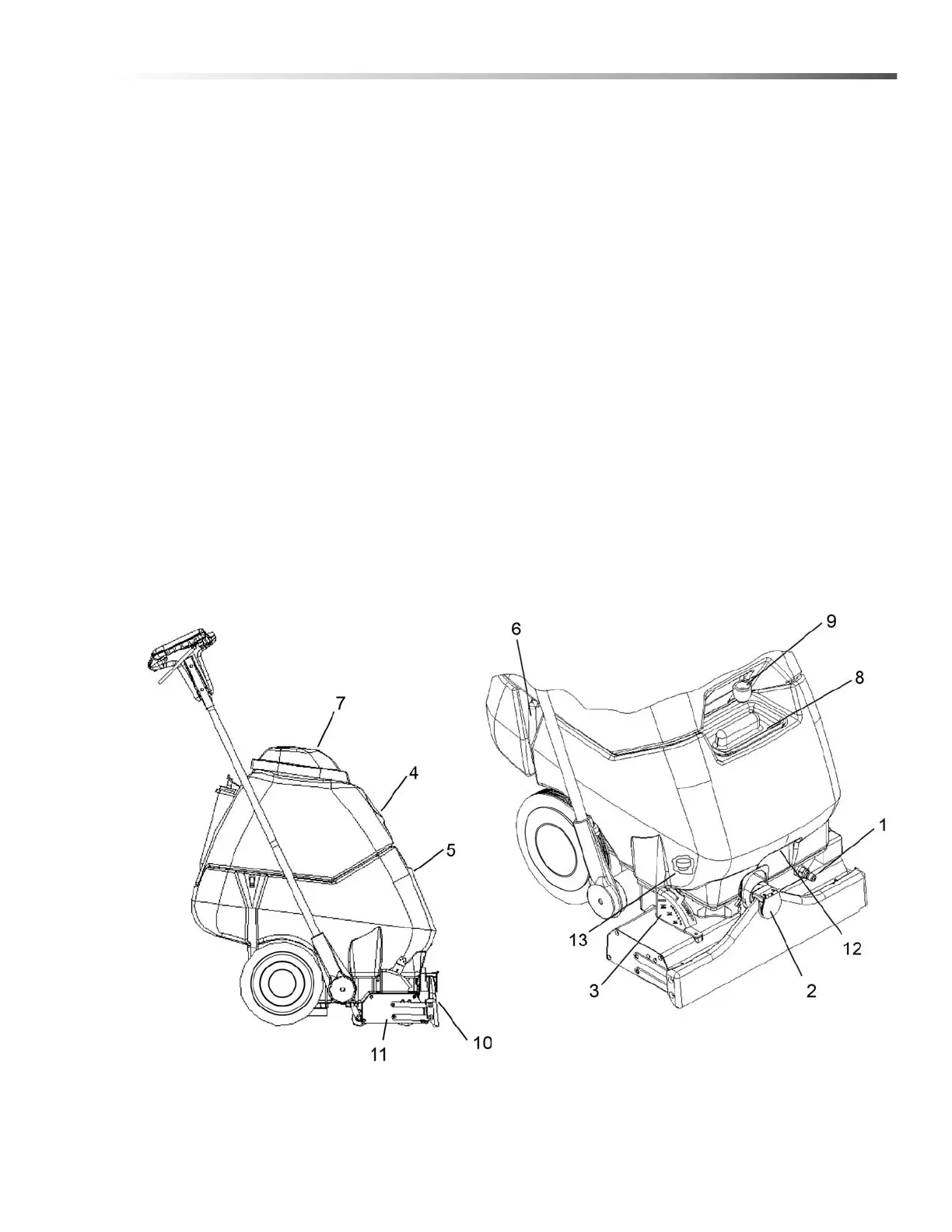

Components
1. Solution Accessory Tool Hookup. Used for
various auxiliary cleaning tools.
2. Vacuum Hose Door. Used to connect various
auxiliary 1 ½ inch cleaning tool vacuum hoses.
3. Brush Height Adjustment. Used to regulate
brush height from storage position to various
carpet heights.
4. Recovery Tank. Used to collect dirty cleaning
solution.
5. Solution Tank. Used to hold cleaning solution.
6. Solution Dump Hose. Facilitates draining excess
cleaning solution from solution tank.
7. Recovery Tank Dome.
8. Solution Tank Lid.
9. Solution Tank Fill Hose.
10. Vacuum Shoe.
11. Brush Housing.
12. Front Lifting Handle.
13. Cleaning Solution Filter.
HIL56086 - Operators Manual - Trident EX12
