14
Operations

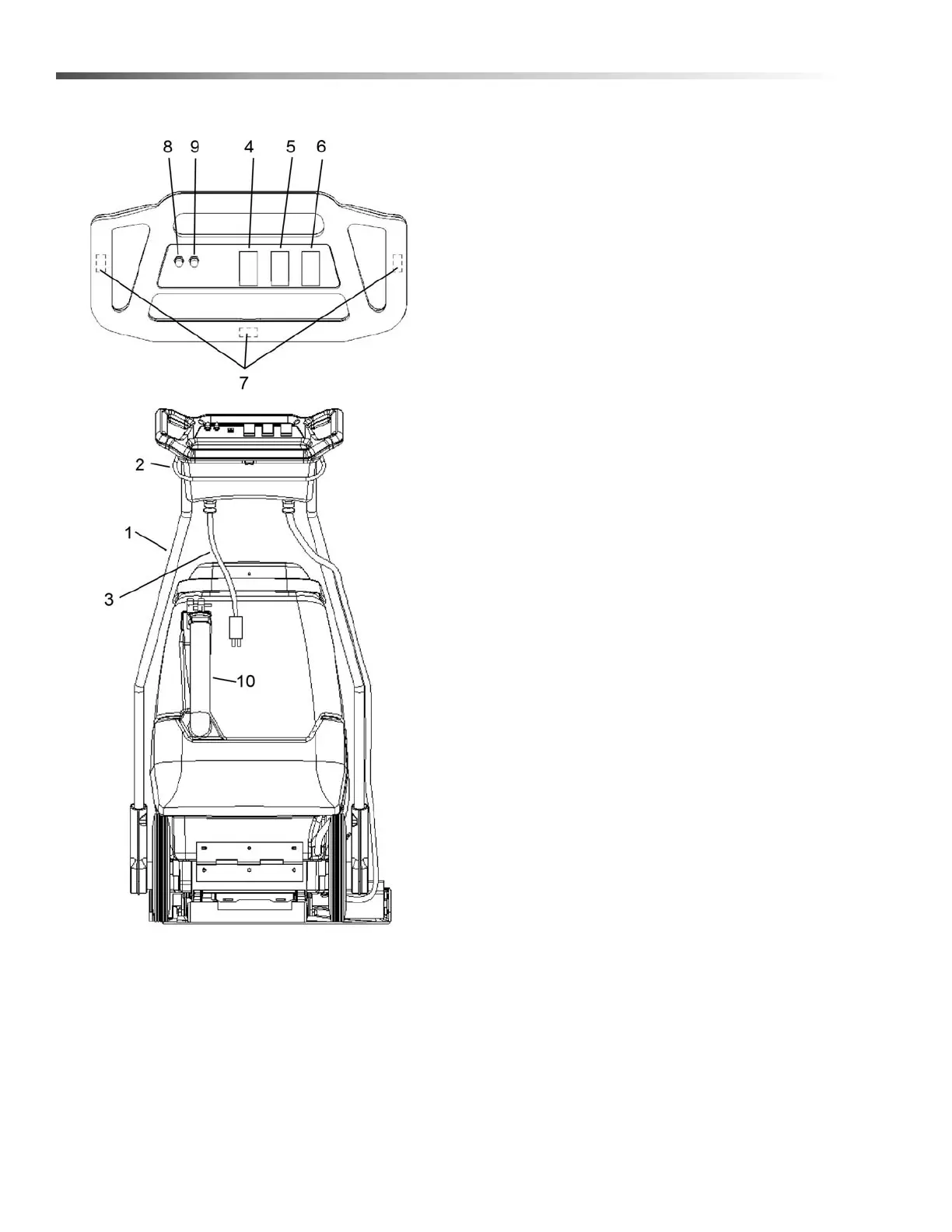

Components / Controls Locations
1. Main Handle. Used to pull and maneuver
machine.
2. Handle Adjustment. Used to adjust height of
handle, and allow machine to be used in "PUSH"
or "PULL orientation.
3. Electrical Cord.
4. Solution Switch. Turns on pump. Continuous
position (bottom) activates electro-valve to
dispense solution to floor through jets. Intermittent
position (up) requires operator to depress 1 of 3
trigger switches to dispense solution. Center
position is off.
5. Brush Motor Switch. Turns on brush motor.
6. Vacuum Motor Switch. Turns on vacuum motor.
7. Trigger Switches. Activates electro-valve to
dispense solution to floor through jets when
solution switch is in the intermittent position.
8. Brush Motor Circuit Breaker. 6 amp. Breaker
protecting brush motor.
9. Vacuum Motor Circuit Breaker. 15 amp. Breaker
protecting vacuum motor.
10. Recovery Dump Hose. Facilitates draining dirty
cleaning solution.
HIL56086 - Operators Manual - Trident EX12
