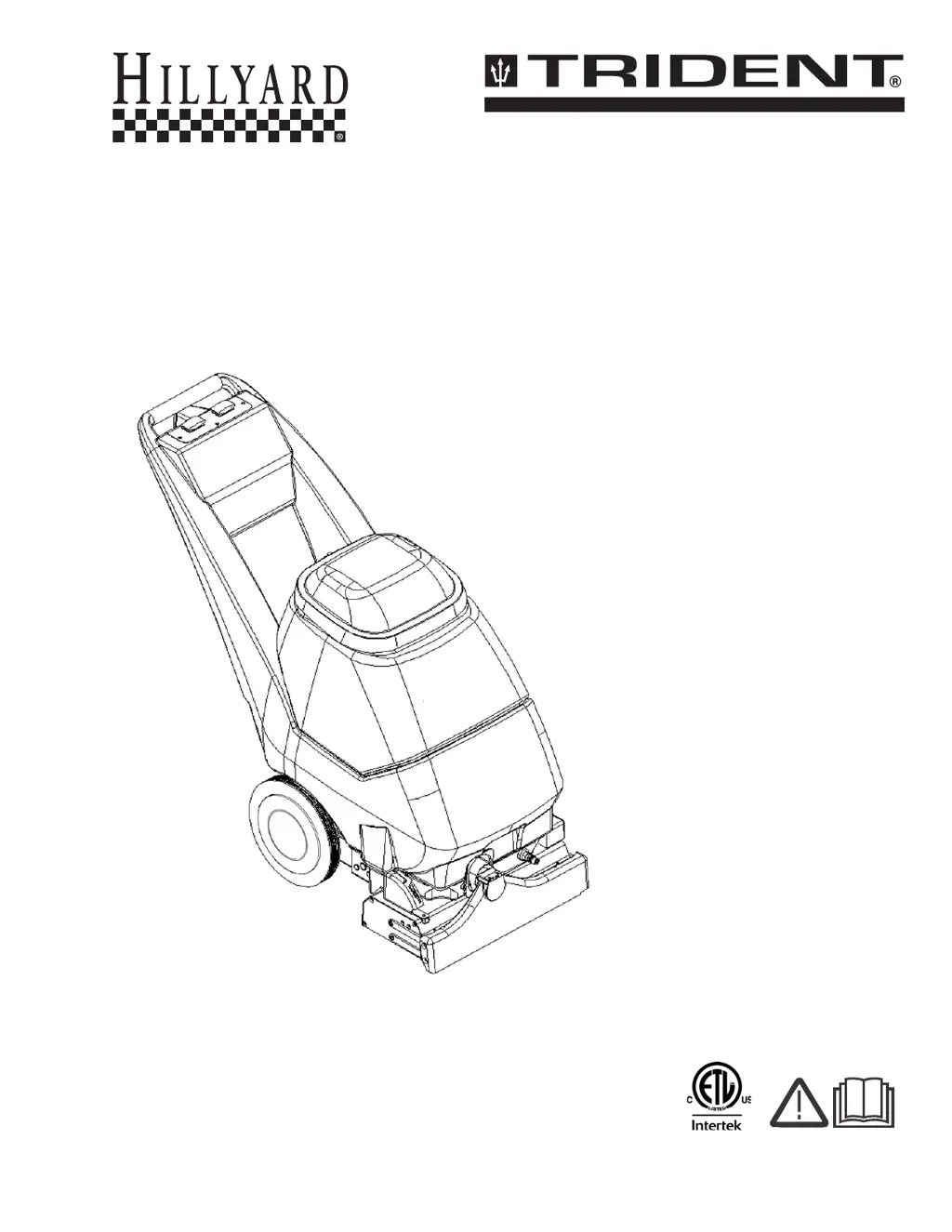

Hillyard TRIDENT EX7 - User Manual

Questions and Answers

K
Katherine WarrenAug 7, 2025
Why Hillyard Floor Machine has no power and nothing runs?
- D
  Denise DennisAug 7, 2025
  If your Hillyard Floor Machine isn't powering on, here are a few things to check: * **Check the power cord:** Make sure the cord is securely plugged into an outlet. * **Check the circuit breaker:** See if a circuit breaker has tripped in the building and reset it, if necessary. * **Faulty switch or power cord:** If these steps don't resolve the issue, there may be a faulty switch or power cord. In this case, call for service.
J
Joseph JohnstonAug 13, 2025
What to do if Hillyard TRIDENT EX7 vacuum motor runs but suction is poor?
- J
  Janet FloydAug 13, 2025
  If the vacuum motor on your Hillyard Floor Machine is running, but the suction is poor, consider the following: * **Check for debris:** Debris might be lodged in the vac shoe. If so, remove it. * **Inspect the dome gasket:** The dome gasket might be defective or missing. Replace it if necessary. * **Check the vacuum hose:** Look for cracks in the vacuum hose or a loose hose cuff. Replace or repair as needed. * **Recovery tank status:** The recovery tank might be full, or the float ball might be stuck in the up position. Turn off the vacuum motor and drain and rinse the recovery tank.
M
Mr. Johnny Martinez MDAug 18, 2025
How to fix poor or no water flow and streaky carpet with Hillyard TRIDENT EX7?
- K
  Kevin NguyenAug 18, 2025
  If you're experiencing poor or no water flow and streaky carpet with your Hillyard Floor Machine, here's what you can do: * **Main pump switch:** Ensure the main pump switch is turned on. * **Check jets:** Clean clogged jets using a vinegar/water solution or replace them if missing. * **Solution filter:** Drain the solution tank and clean the solution filter.
P
pcruzAug 26, 2025
What to do if vacuum motor will not run on Hillyard TRIDENT EX7 Floor Machine?
- O
  Olivia RobinsonAug 26, 2025
  If the vacuum motor on your Hillyard Floor Machine won't run, here are a few things to consider: * **Check the vacuum circuit breaker:** Reset the breaker if it has tripped. * **Carbon brushes worn:** See "Brush Replacement" in maintenance section. * **Faulty main vacuum switch, loose wiring or faulty vac motor:** In these cases, call for service.
M
Michael GriffinAug 31, 2025
Why Hillyard TRIDENT EX7 Floor Machine brush does not spin?
- G
  Gabriel TaylorAug 31, 2025
  If the brush on your Hillyard Floor Machine isn't spinning, try the following: * **Brush switch:** Make sure the brush switch is turned on. * **Circuit breaker:** Check if the brush circuit breaker has tripped and reset it if necessary. * **Brush belt:** Replace the brush belt if it's broken. * **Faulty brush motor:** If these steps don't work, call for service as there may be a faulty brush motor.

Summary

Safety

Electrical Requirements

Details the machine's power requirements and voltage specifications.

Extension Cord Guidelines

Specifies the recommended wire size and length for extension cords.

Grounding Instructions

Explains the importance and procedures for proper machine grounding.

Important Safety Instructions

Lists critical precautions for safe machine operation and use.

Hazard Intensity Levels

Defines signal words (WARNING, CAUTION) and hazard levels for operator safety.

Safety Labels

Shows the location of safety labels on the machine for user awareness.

Operations

Technical Specifications

Details the machine's physical dimensions, capacity, and performance data.

Machine Dimensions

Illustrates and defines the machine's height, length, and width.

Controls Overview

Identifies and describes the function of all machine controls and switches.

Machine Components

Lists and explains the purpose of the main parts of the machine.

Machine Components - Continued

Details additional components of the machine not covered previously.

Filling the EX7

Provides instructions and chemical compatibility for filling the solution tank.

Filling the EX7 - Continued

Continues the step-by-step process for filling the machine's tanks.

Machine Operation

Step-by-step guide for starting, operating, and using the machine.

Cleaning Procedure

Details the process for cleaning carpets with the machine.

Accessory Tool Usage

Instructions on how to use auxiliary cleaning tools with the machine.

Maintenance

Service Schedule

Outlines daily, weekly, and quarterly maintenance tasks for upkeep.

Periodic Maintenance

Monthly maintenance procedures to prevent build-up and ensure system integrity.

Daily; Regular Maintenance

Essential daily checks and cleaning steps for optimal machine performance.

Vacuum Motor Replacement

Step-by-step guide for replacing the vacuum motor.

Belt Replacement

Instructions for replacing the drive belt on the machine.

Solution Pump Replacement

Procedures for replacing the solution pump.

Troubleshooting Chart

Lists common problems, their causes, and solutions for quick reference.

Hillyard TRIDENT EX7 Specifications

General

Model	TRIDENT EX7
Category	Floor Machine
Voltage	120 V
Amperage	15 A
Brush Motor	0.75 HP
Power Cable	Not applicable
Productivity	15, 000 sq ft/hr
Pad Size	17 inches
Cord Length	50 ft
