Operations
Components

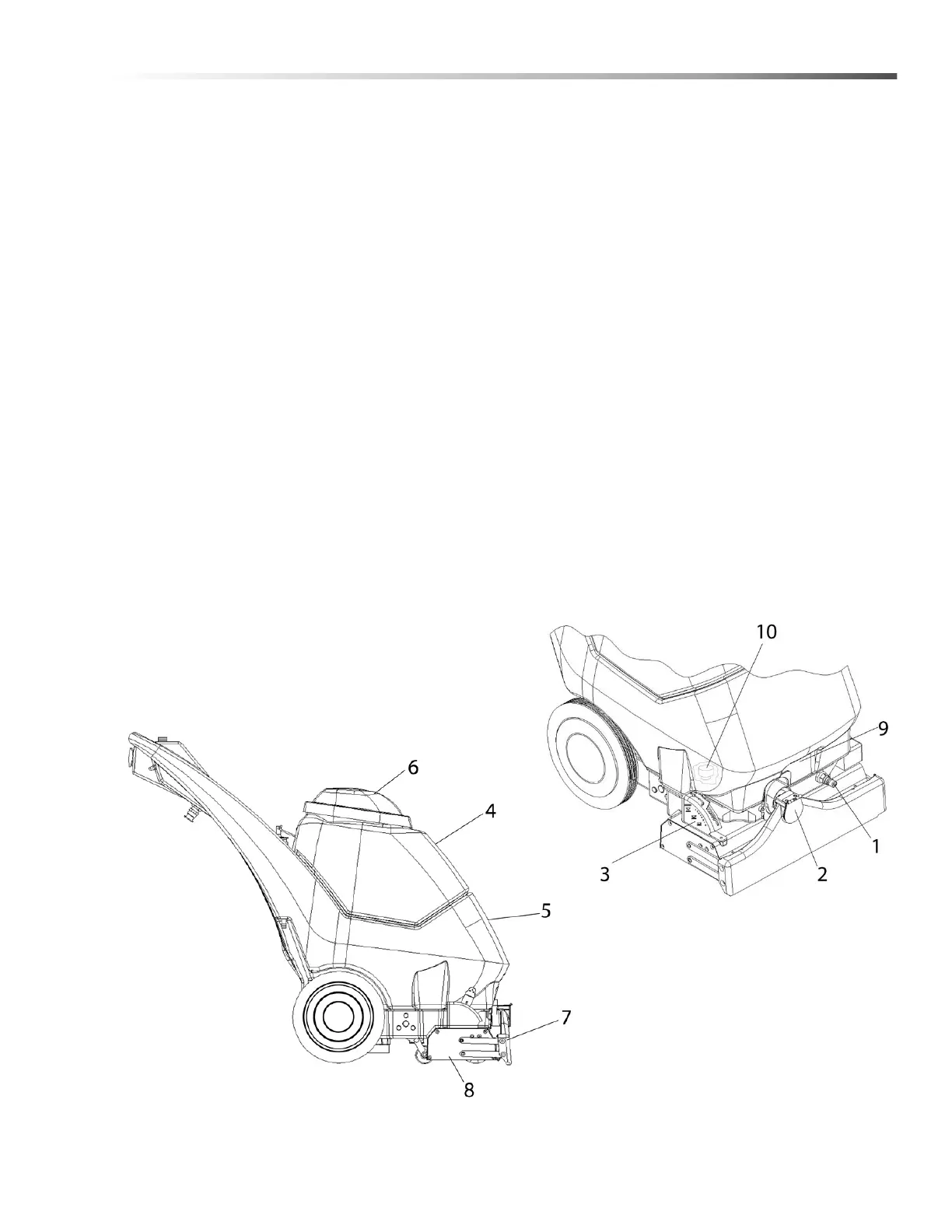

1. Solution Accessory Tool Hookup. Used for
various auxiliary cleaning tools.
2. Vacuum Hose Door. Used to connect various
auxiliary 1 1/2 inch cleaning tool vacuum hoses.
3. Brush Height Adjustment. Used to regulate
brush height from storage position to various
carpet heights.
4. Recovery Tank. Used to collect dirty cleaning
solution.
5. Solution Tank. Used to hold cleaning solution.
6. Recovery Tank Dome.
7. Vacuum Shoe.
8. Brush Housing.
9. Front Lifting Handle.
10. Cleaning Solution Filter.
