16 English
2. If the following conditions are met, also take this action:
Conditions: The depth gauge (accessory) is fitted.
▶ Remove the depth gauge. → page 17
CAUTION
Risk of breakage and irreparable damage. If the spindle lockbutton is pressed while the spindle is rotating,
this may cause the disc to work loose or detach from the power tool.
▶ Press the spindle lockbutton only when the spindle has stopped rotating.
3. Press and hold down the arbor lockbutton.
4. Use the hex key to slacken the clamping nut.
5. Remove the clamping nut, the clamping flange, the cutting disc and the reversible flange from the arbor,
one after the other.

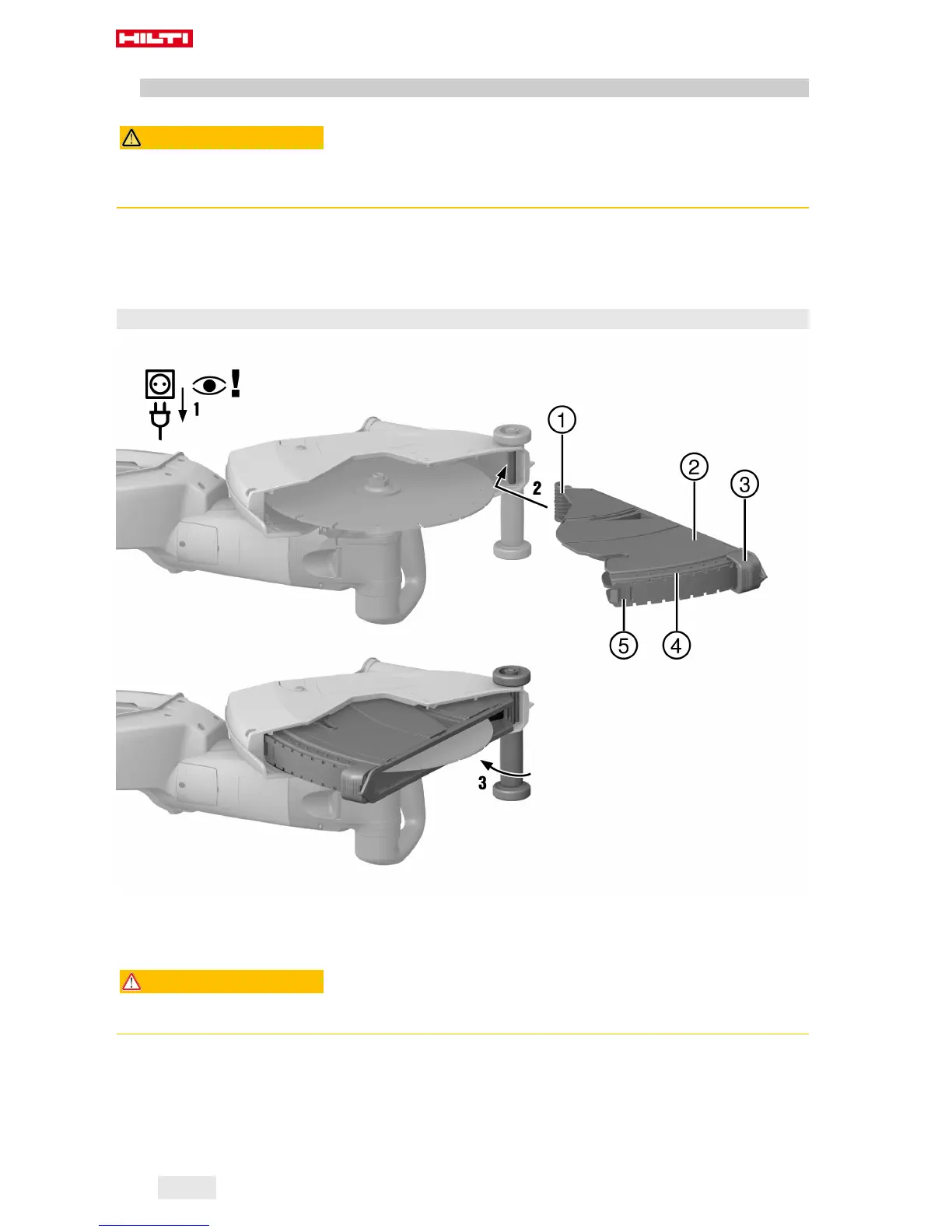

5.5 Fitting the depth gauge (optional)
@
Hook
;
Hood extension
=
Cutting depth indicator slider
%
Cutting depth scale
&
Stop
ATTENTION
Risk of damage. The depth gauge (accessory) will be damaged by flying sparks.
▶ Do not fit the depth gauge when you wish to use the power tool for working on metal.
1. Disconnect the supply cord plug from the power outlet.
2. Place the hook over the guide wheel axle.
3. Pivot the hood extension into the hood until the catch is heard to engage.
Printed: 02.02.2018 | Doc-Nr: PUB / 5398464 / 000 / 00
