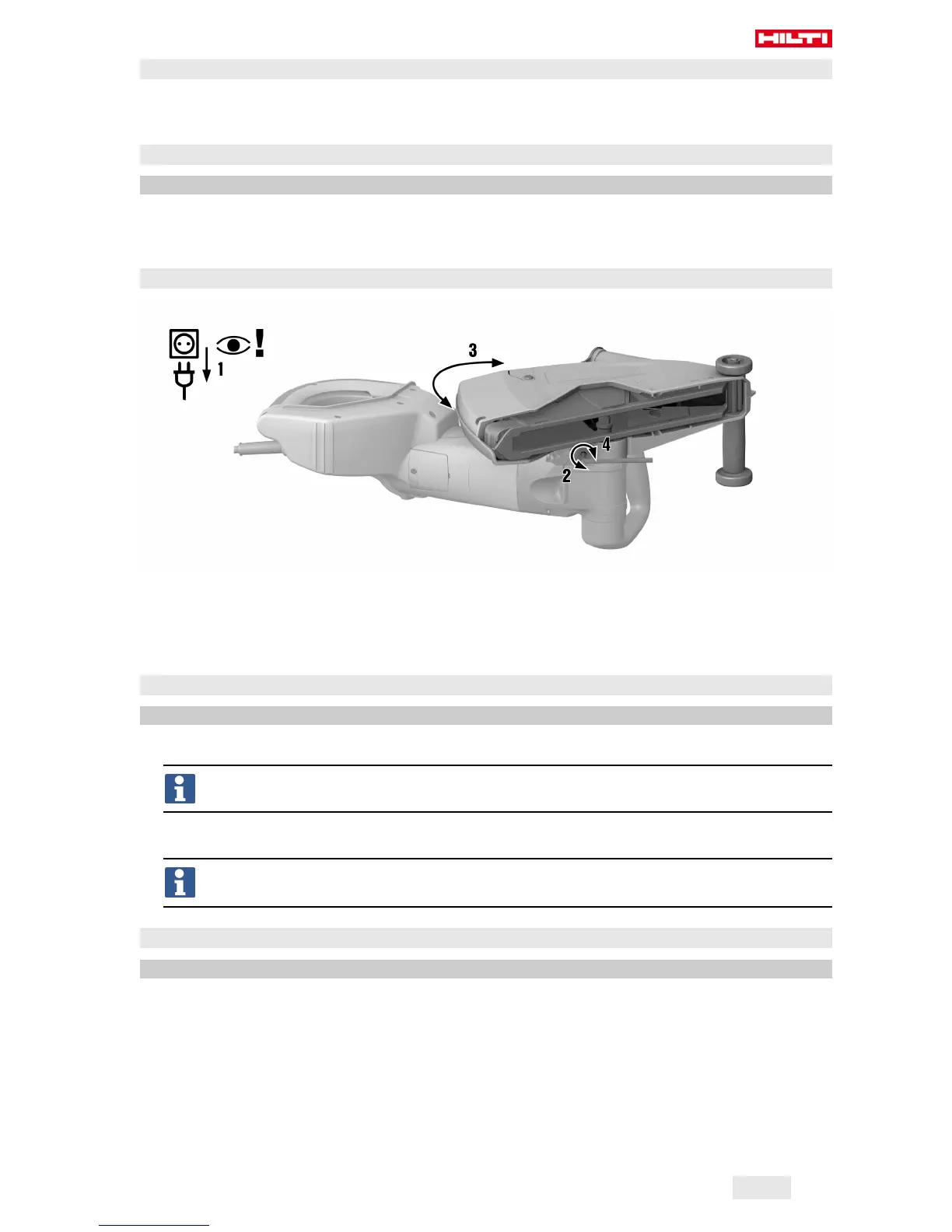

5.6 Removing the depth gauge
1. Disconnect the mains plug from the power outlet.
2. Press the catch and pivot the hood extension away from the hood.
5.7 Setting the cutting depth on the depth gauge
Conditions: The depth gauge (accessory) is fitted.
1. Press the cutting depth indicator slider and move the slider until the mark is at the desired cutting depth.
2. Release the cutting depth indicator slider.
5.8 Adjusting the guard
1. Unplug the supply cord from the power outlet.
2. Use the hex key to slacken the clamping screw.
3. Rotate the guard into the desired position.
4. Use the hex key to tighten the clamping screw.
5.9 Connecting the water supply
DCH 300–X
1. Connect a water hose to a water supply pipe.
The maximum permitted water supply pressure is 3 bar.
2. Close the water regulator valve to shut off the water supply to the cutter.
3. Connect the water hose to the water supply connector (proprietary system).
Regularly check hoses for damage and make sure that the maximum permissible water supply
pressure of 3 bar is not exceeded.
5.10 Adjusting the water flow rate
DCH 300–X
▶ Turn the water regulator valve until the desired water flow rate is set.
