Himoinsa STANDARD - Technical Data and Specifications

GENERIC DESCRIPTION | PAG. 9
• 4levelling jacks, two of them extensible to ensure the perfect
stability of the tower in any working surface. It cancels the risk of
overturn in adverse environmental conditions.
• Spirit level, located in the upper part of the set, to ensure a perfect
levelling of the tower.
• Exhaust outlet.
• Light Sensor, located on the bonnet of the generator set (OPTIONAL).
• Inclination of lights, using a servo motor, with possibility of turning by
up to 30ºC (OPTIONAL).
3. Mobile equipment:
• Transportation kit, the tower is ready for road transport. Including
as standard: jockey wheel, straight drawbar with ball coupling and
connections for signalling lights (brake lights, indicators), as well as
position and handbrake reectors. As optional we have swan neck
and adjustable drawbars available, as well as the ring type hitches
(See Fig. 1, 2 and 3).
• Includes forklift pockets to move it with a forklift.
• Fixing rings for the transport that ensure a perfect immobilization
avoiding possible damage during the transport.

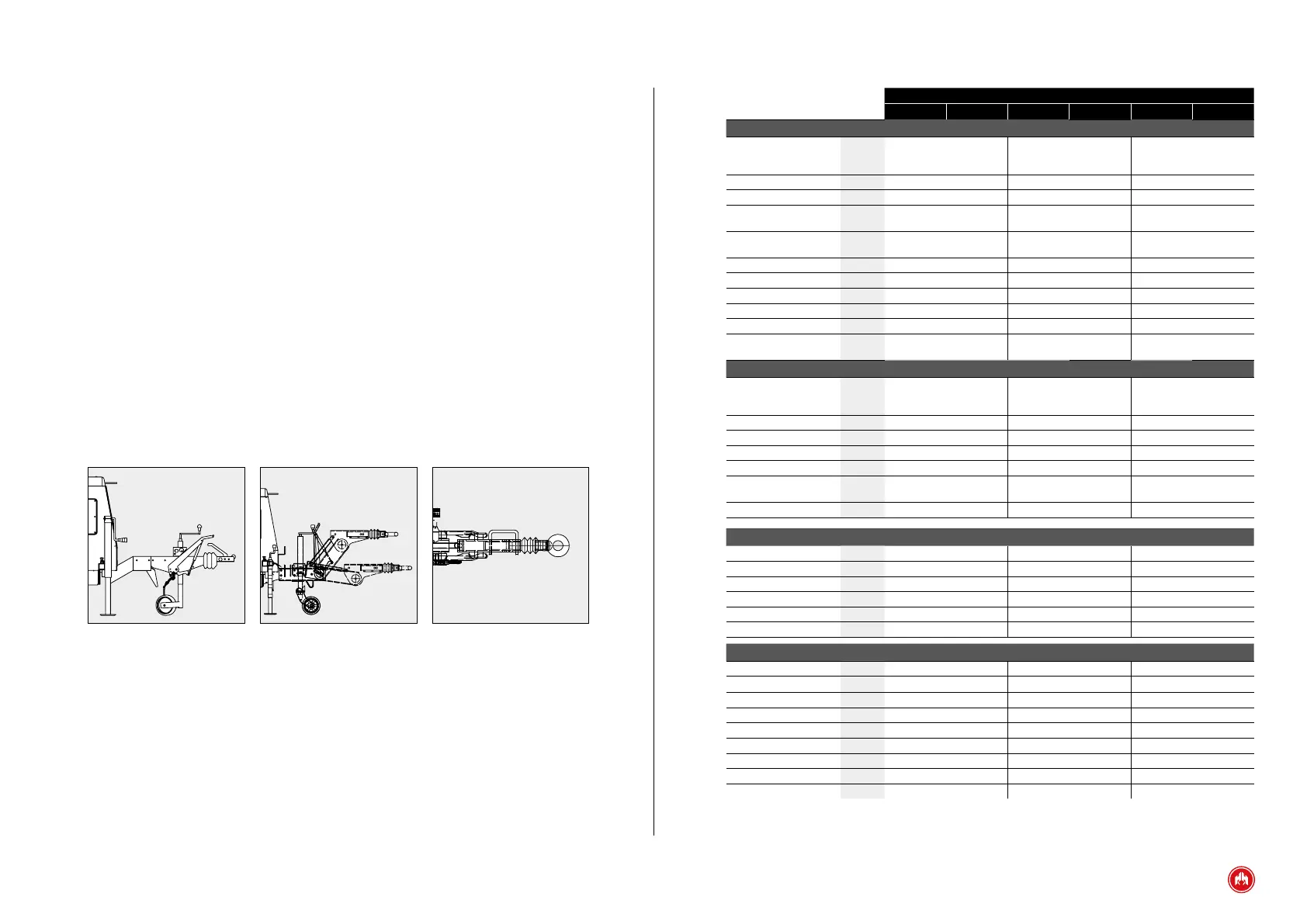

Fig. 1
Swan neck type drawbar
Fig.2
Adjustable type drawbar
Fig.3
Ring type hitch
3.2 TECHNICAL DATA
STANDARD HEAVY DUTY ECO
50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz
LIGHTING TOWER
Tower Model
APOLO
COMPACT
STD M5
APOLO
COMPACT
STD M6
APOLO
COMPACT
HD M5
APOLO
COMPACT
HD M6
APOLO
COMPACT
ECO M5
APOLO
COMPACT
ECO M6
Power (P.R.P.) kVA 6,4 7,2 6,4 7,2 4,5 5,2
Voltage (3P + N + T) V 230 240 230 240 230 240
Maximum dimensions -
mm. (in working position)
(LxWxH) 2,425 x 2,634 x 9,219 2,457 x 2,645 x 9,298 2,425 x 2,634 x 9,219
Minimum dimensions -
mm. (in transport mode)
(LxWxH) 2,425x1,340x2,033 2,457x1,340x2,155 2,425x1,340x2,033
Weight Kg 911 911 749
Type of fuel Diesel Diesel Diesel
Tank capacity L 100 100 100
Filling of the tank External External External
Running time Hr 63 54 63 54 166
Noise level (power - at
7m)
90LWA-
65dB(A)
92LWA-
67dB(A)
90LWA-
65dB(A)
92LWA-
67dB(A)
90LWA-
65dB(A)
92LWA-
67dB(A)
ENGINE
Model
YANMAR
- 3TNV76 -
GGEH
YANMAR
- 3TNV76 -
GGEH
YANMAR
- 3TNV76 -
GGEH
YANMAR
- 3TNV76 -
GGEH
YANMAR -
L100N6
YANMAR -
L100N6
Cylinders 3L 3L 1
Aspiration Natural Natural Natural
Operating regime r.p.m. 1500 1,800 1500 1,800 3.000 3.600
Cooling system Liquid Coolant Liquid Coolant Air
Fuel consumption (only
the lights)
L/Hr 1,59 1,84 1,59 1,84 0,4 - 0,7
Governor Mechanical Mechanical Mechanical
ALTERNATOR
Poles Nº 4 4 2
Type Brushless Brushless Brushless
Voltage governor AVR (electronic) AVR (electronic) AVR (electronic)
Insulation Class H Class H Class H
Bearings 1 1 1
Coupling SAE5-7.5” SAE5-7.5” SAE J609a B/6
MAST
Mast type Hydraulic Hydraulic Hydraulic
Mast sections 9 9 9
Rotation 360º manual 360º manual 360º manual
Double safety block Standard Standard Standard
Spotlights Nº 4 x 1000 W 4 x 1000 W 4 x 350W
Type of spotlights Metal Halide Metal Halide LED
Total lumens lm 4 x 100,000 = 400,000 4 x 100,000 = 400,000 4 x 47,955=191,820
Light eld 33,000 m
2
33,000 m
2
16,000m
2
Remaining power 2.3kW 3.2kW 2.3kW 3.2kW 3.06kW 3.76kW
