Hinkley HOVER FLUSH 60 - Installation of the Blades; Installing the Adapter Plate

INSTALLATION OF THE BLADES
INSTALLING THE ADAPTER PLATE
Remove one of the three screws on the mounting hub located on
the fan motor.
Loosen the other two screws.
Install adapter plate to mounting hub.
Line up the two slotted holes with the two loose screws on the
mounting hub located on fan motor.
Re-install the third screw removed and tighten all three.
1
2
4
5
3
©2019 Hinkley Lighting, Inc.
|
hinkley.com
|
09

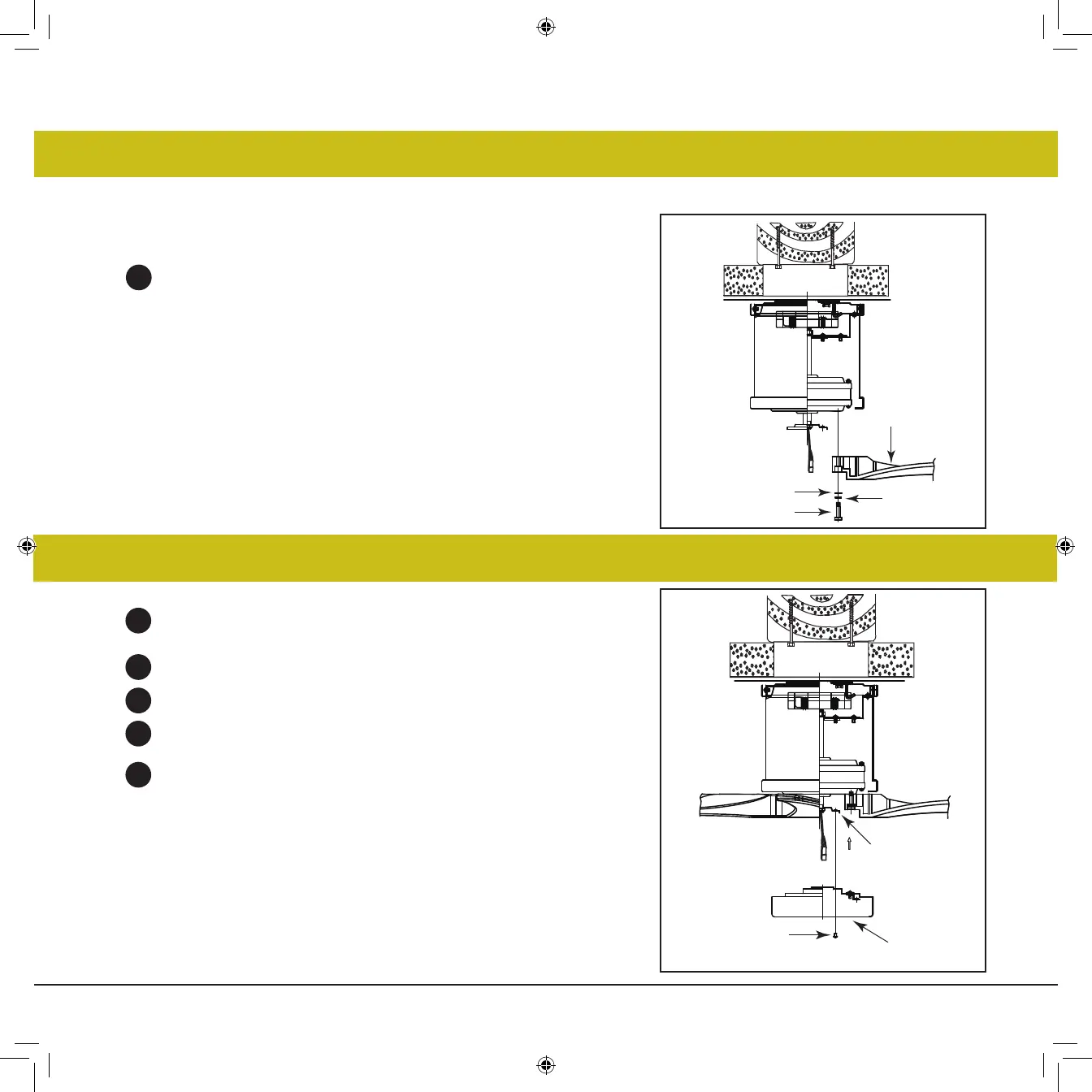

Lock Washer
Screws
Flat Washer
Blades
Mounting Hub
Screws
Adapter Plate
WARNING: To reduce the risk of personal injury, do not bend the blades
while installing, balancing the blades, or cleaning the fan.
Insert the blade through the slot in the housing. Align the holes in
the blade and the fan motor assembly and secure with a blade
attachment screw and flat washer.
Repeat this procedure with the remaining blades.
1
