ENGINE (J05E)/TROUBLESHOOTING 2–65

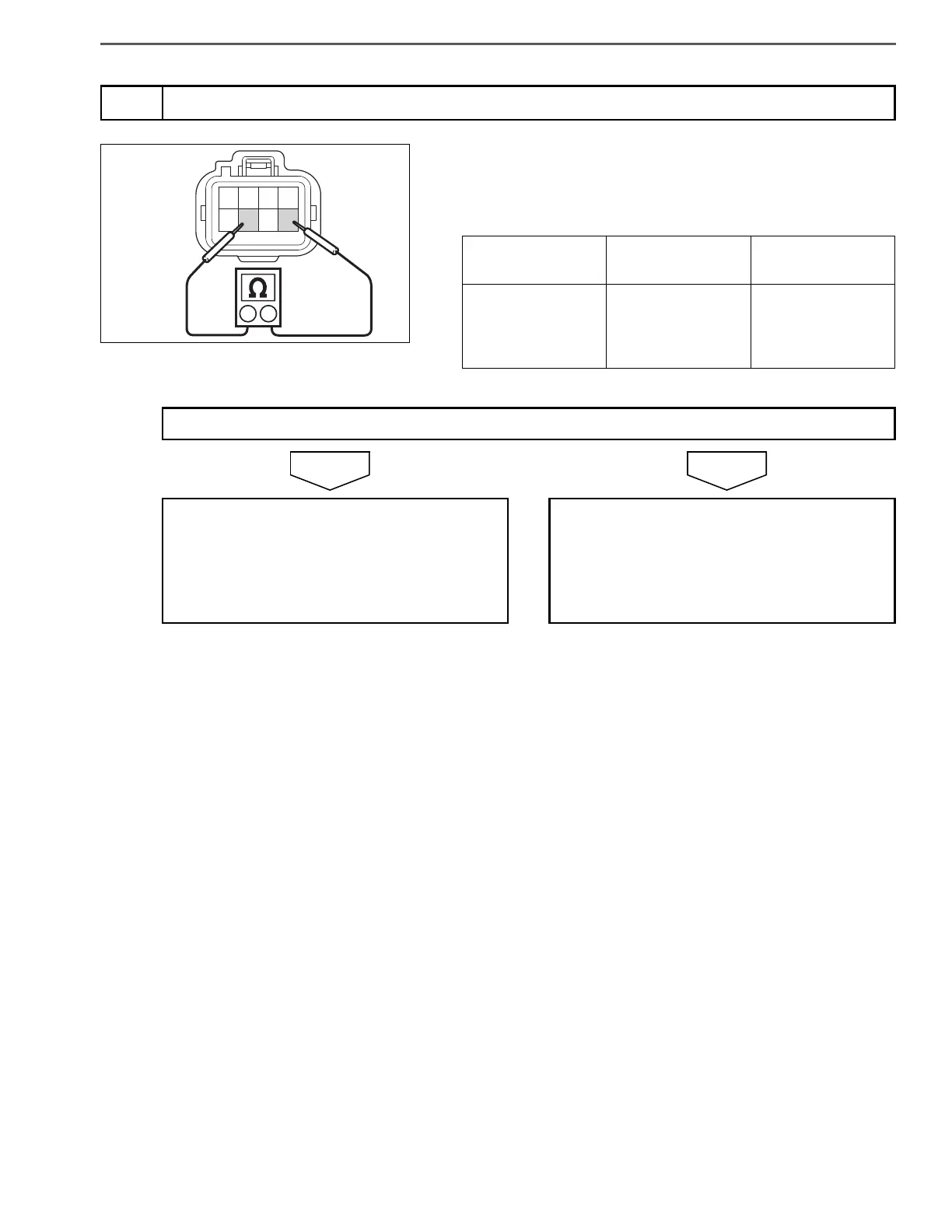

1. Disconnect the J/C_ENG_CAN connector.
2. Use electrical tester to measure the resistance between No.6
(CANH) terminal and No.8 (CANL) terminal at the CAN_J/C1 con-
nector.
4
Check harness in CAN bus line between J/C_ENG_CAN and J/C_HV2 (Failure Site 9)
Measurement
conditions
Tester
connections
Standard values
Starter key: LOCK
J/C_ENG_CAN
connector
No.6 (CANH) –
No.8 (CANL)
110 – 130
Do the measurements meet the standard value?
Connect the J/C_ENG_CAN connector, and
go to step 5.
CAN bus line disconnection between J/
C_ENG_CAN and the J/C_HV2
Repair or replace the harness.
Perform After-inspection work. (Clear all past
DTC. Check no DTC is stored after test
drive.)
To Next Page
