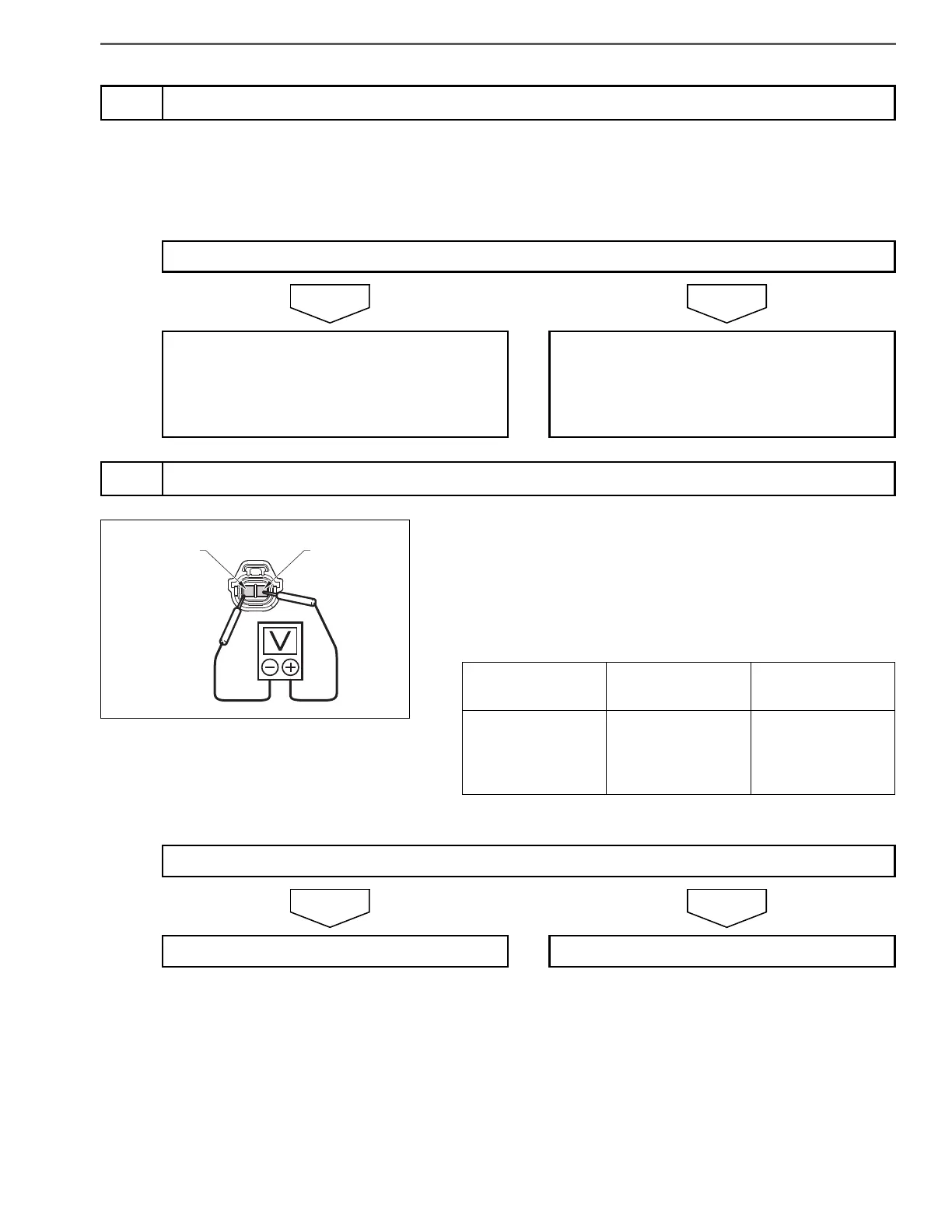

ENGINE (J05E)/TROUBLESHOOTING 2–361
1. Check the installation of the engine speed main sensor.
2. Make sure there is no dirt, damage or clogging in the sensing unit
of the engine speed main sensor.
NOYES
1. Set the starter key to the "LOCK" position.
2. Disconnect the engine speed main sensor connector.
3. Set the starter key to the "ON" position.
4. Use the electrical tester to measure the voltage between the termi-
nals of the engine speed main sensor vehicle side connector.
NOYES
3
Check the engine speed main sensor
Was any failure found?
Clean the sensing unit and install it properly.
If damaged, replace the engine speed main
sensor.
Perform "After-inspection work" of INFOR-
MATION section.
Go to step 4.
4
Inspect the engine speed main sensor power supply
SHTS021270300324
Measurement
conditions
Tester
connections
Standard values
Starter key: ON
Engine speed
main sensor vehi-
cle side connector
NE+ NE-
4.5 5.5 V
Do the measurements meet the standard value?
Go to step 7. Go to step 5.
