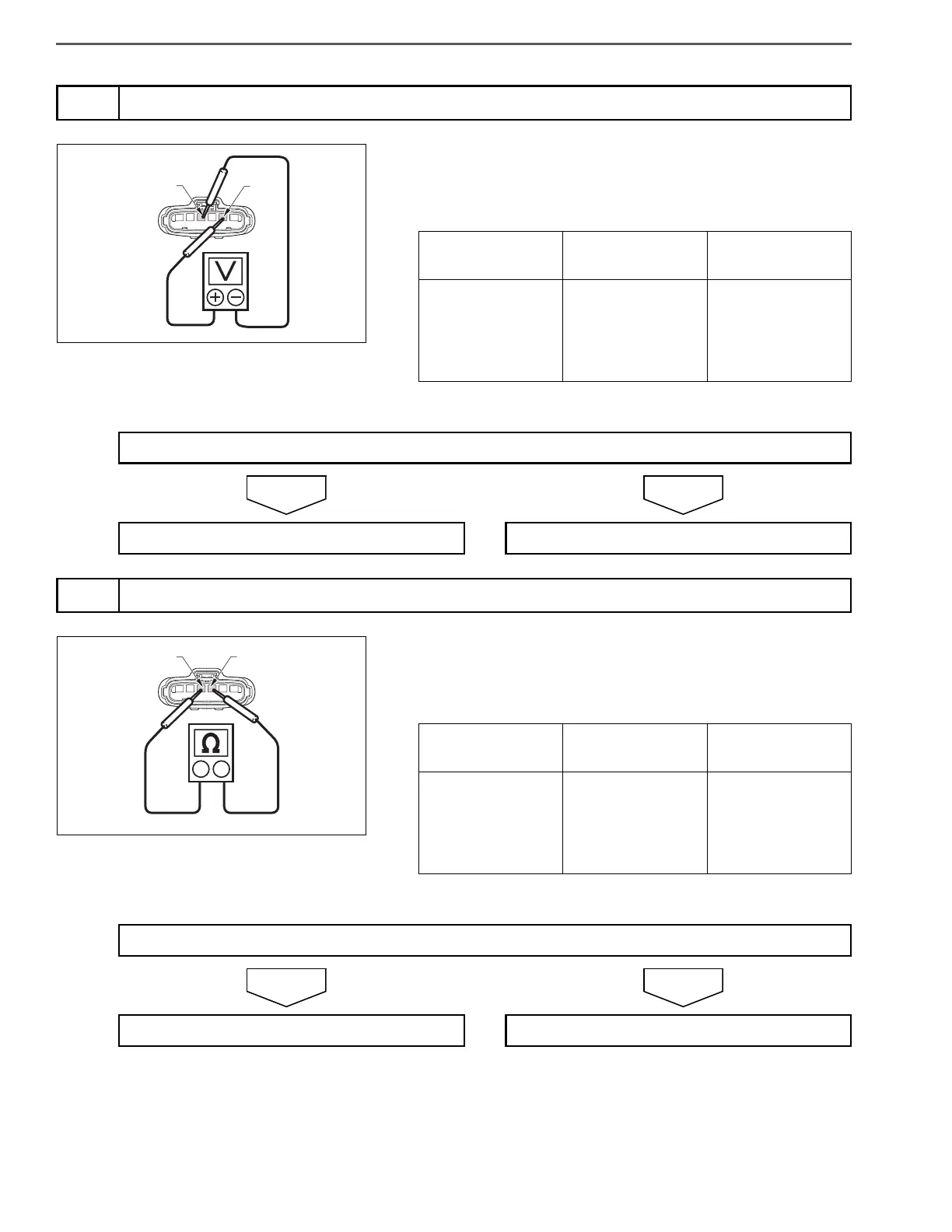

ENGINE (J05E)/TROUBLESHOOTING2–372
1. Set the starter key to the "ON" position.
2. Use the electrical tester to measure the voltage between the termi-
nals of the intake throttle valve position sensor 2 vehicle side con-
nector.
NOYES
1. Set the starter key to the "LOCK" position.
2. Use the electrical tester to measure the resistance between the
terminals of the intake throttle valve position sensor 2 vehicle side
connector.
NOYES
4
Inspect the intake throttle valve position sensor 2 power supply
VC
E2
SHTS021270300333
Measurement
conditions
Tester
connections
Standard values
Starter key: ON
Intake throttle
valve position
sensor 2 vehicle
side connector
VC – E2
4.5 – 5.5 V
Do the measurements meet the standard value?
Go to step 5. Go to step 6.
5
Inspect the intake throttle valve position sensor 2 signal circuit
VTA2
E2
SHTS021270300334
Measurement
conditions
Tester
connections
Standard values
Starter key: LOCK
Intake throttle
valve position
sensor 2 vehicle
side connector
VTA2 – E2
25 – 35 k
Do the measurements meet the standard value?
Go to step 8. Go to step 6.
