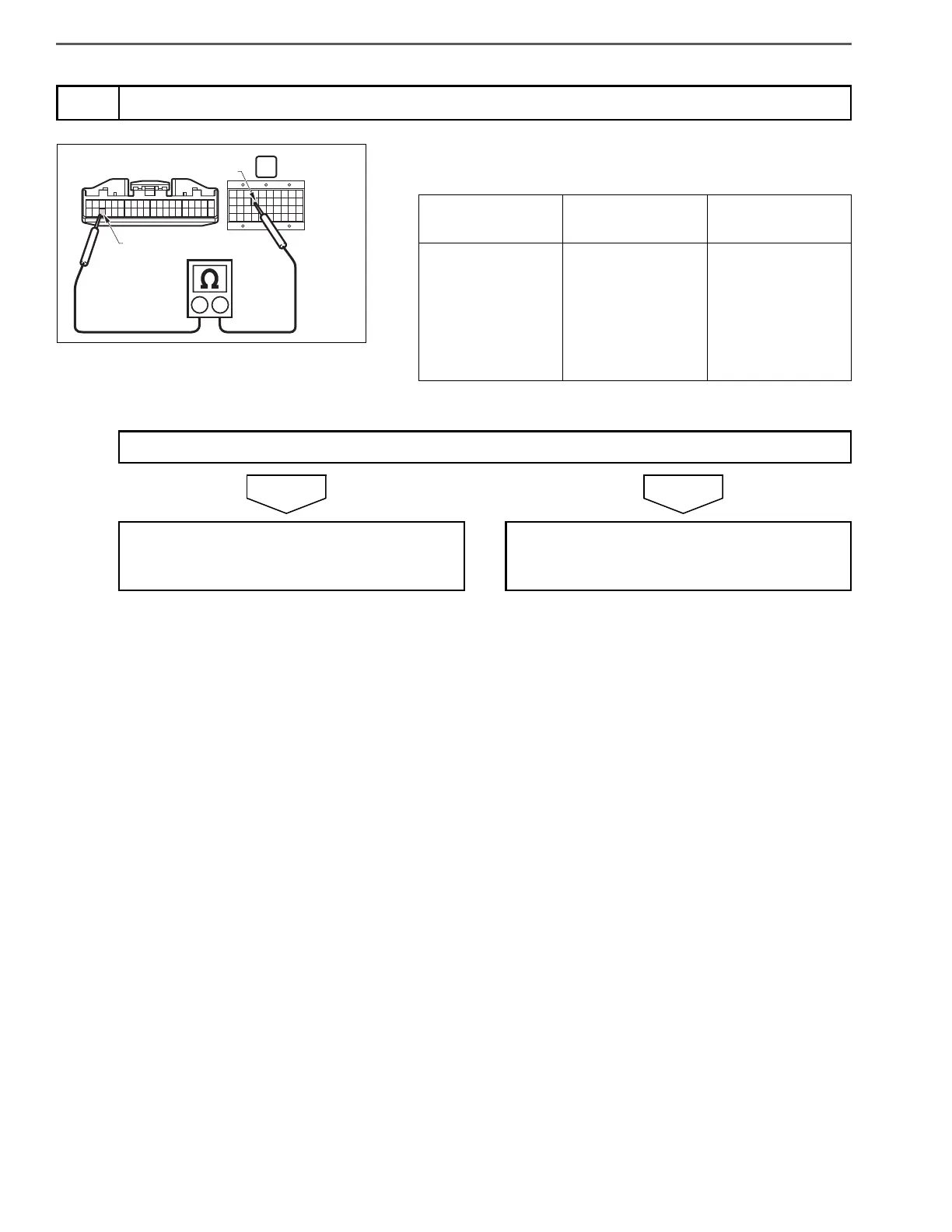

ENGINE (J05E)/TROUBLESHOOTING2–568
1. Use the electrical tester to measure the resistance between the
combination meter vehicle side connector terminal and engine
ECU (signal check harness) terminal.
4
Inspect for disconnection in wire harness of vehicle speed signal circuit
A
SPD2
V14
Measurement
conditions
Tester
connections
Standard values
Starter key: LOCK
Combination
meter vehicle side
connector –
engine ECU (sig-
nal check har-
ness)
SPD2 – V14 (SP1)
Less than 1
Do the measurements meet the standard value?
Replace the combination meter.
Perform "After-inspection work" of INFOR-
MATION section.
Repair or replace the harness.
Perform "After-inspection work" of INFOR-
MATION section.
To Next Page
