Hirschmann HC3901 User Manual

Operator’s Manual
8

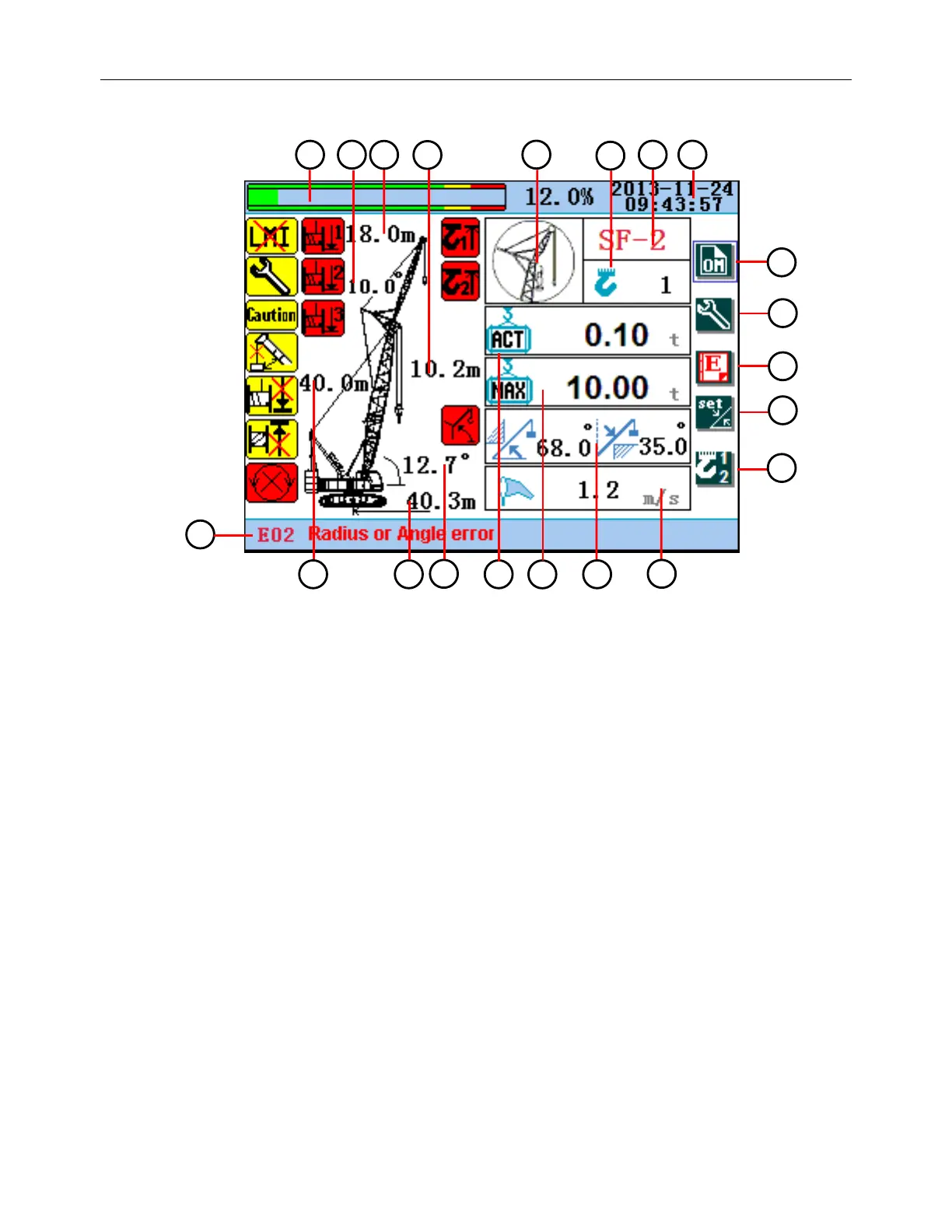

4.1 Data display（values are only for example）
1. Height status bar and percentage display
2. Jib angle
3. Jib length
4. Height
5. OM information display
6. Reeving
7. OM code
8. Date and Time
display(year/month/day/hour/minute/second)
9. OM information setting
10. Function setting key symbol
11. Error code information key symbol
12. Upper and low angle setting
13. Main Hook/ Subhook Switch
14. Wind speed
15. Upper and low angle
16. Rated load weight
17. Actual load weight
18. Boom angle
19. Radius
20. Boom length
21. Error code information
16 15
1
17
2
18
19
21
3
4
5
6
7 8
9
10
11
12
13
14
20
