3.3 Force Sensor
Force sensor KMD is perfectly designed for static and dynamic tensile force measurements.
The sensor stands out for high overload capacity, high fatigue strength, good corrosion resistance
and maintenance-free operation.
Technical data:
Nominal load range: from 1T up to 500T
Charge of measuring body: 200%
Charge of measuring body up to flow limit: 300%
Safe to breaking point: 500%
Linearity: < 0.3% typ.
Hysteresis: < 0.5% typ.
Protection class: IP65
Operating temperature range: -40℃ to +70℃
Installation
KMD force sensor is measuring unit, it should require the conscientious and careful treatment.
Be sure to obtain the fittings and the relative tolerance data suggested by KMD force sensor.
Observe the installation situation to make sure that no elastic parts are used in the force transmission
which might affect the measurements.
The bores in the locking pins must be in alignment.
Make sure force sensor not to bear side force.

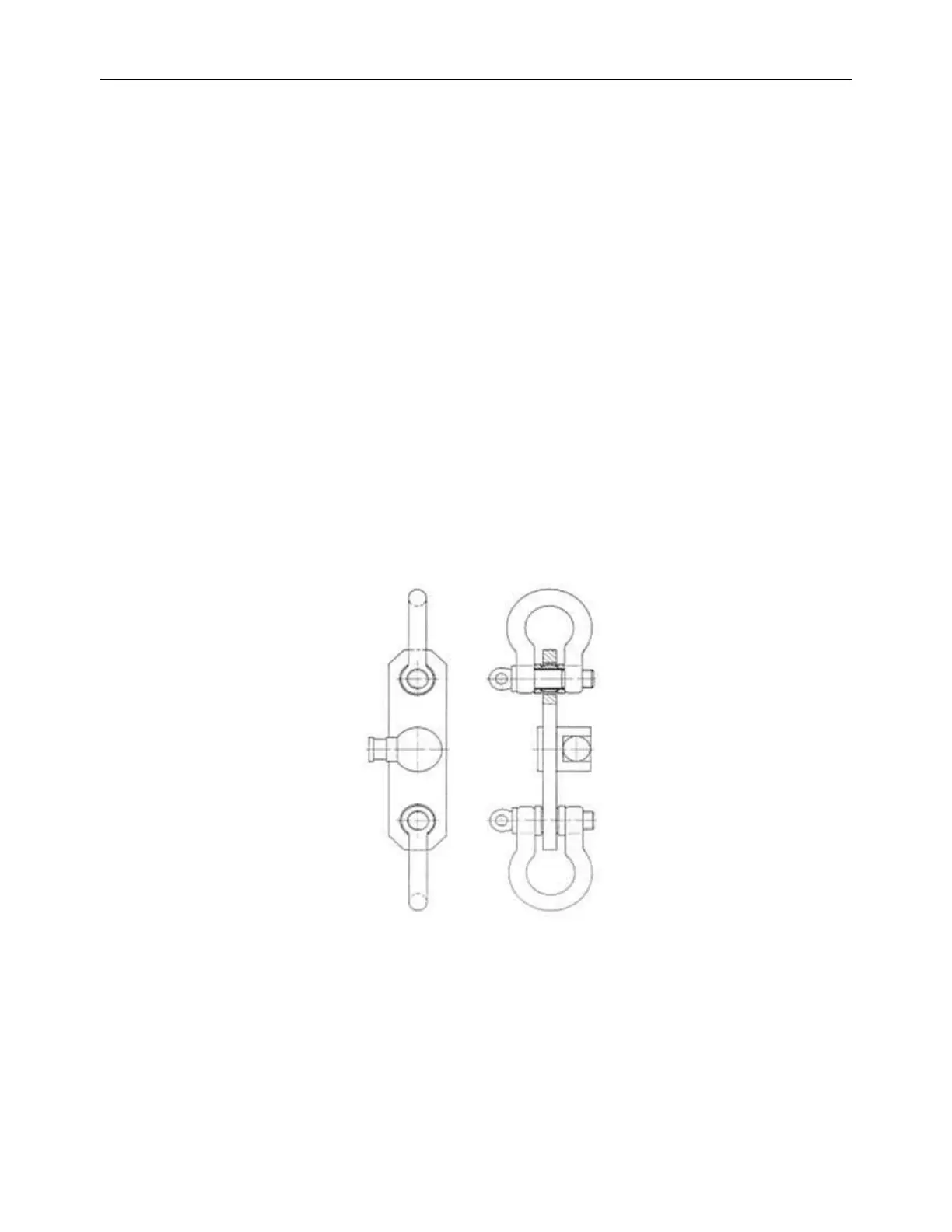

KMD Force Sensor Installation Graph
