Installation MSP30/32/40/42 and MSM20/22/24/40/42/46/50
Release 12 06/2018
 Media modules MSM40
The combo port media module MSM40-C1C1C1C1... has 4 twisted pair
ports and 4 F/O slots (connection option with SFP transceivers).
You have the option of alternatively connecting a twisted pair cable via a
RJ45 socket or an optical fiber via a SFP transceiver to a combo port.
By inserting a SFP transceiver, you deactivate automatically the
corresponding twisted pair interface.

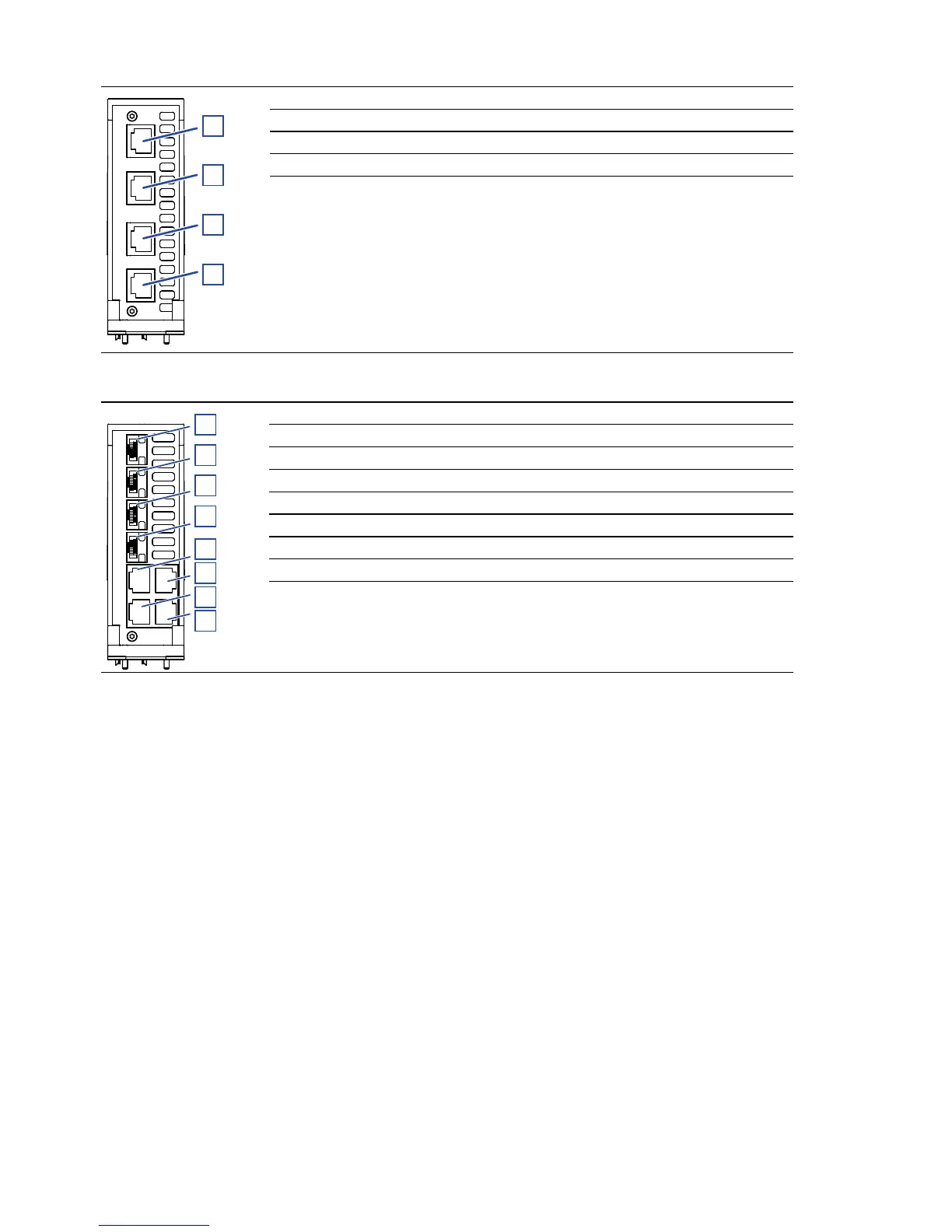

1 Port 1 (Twisted Pair)
2 Port 2 (Twisted Pair)
3 Port 3 (Twisted Pair)
4 Port 4 (Twisted Pair)
Table 14: MSM40-T1T1T1T1...
1 Port 1 (F/O)
2 Port 2 (F/O)
3 Port 3 (F/O)
4 Port 4 (F/O)
5 Port 1 (Twisted Pair)
6 Port 2 (Twisted Pair)
7 Port 3 (Twisted Pair)
8 Port 4 (Twisted Pair)
Table 15: MSM40-C1C1C1C1...
1
2
3
4
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
