Hirschmann OCTOPUS OS20 - Page 110

Diagnostics
110
7.4 Port Mirroring
RM Web L2B
Release 5.3 05/2012
Note: When port mirroring is active, the specified destination port is used
solely for reviewing, and does not participate in the normal data traffic.

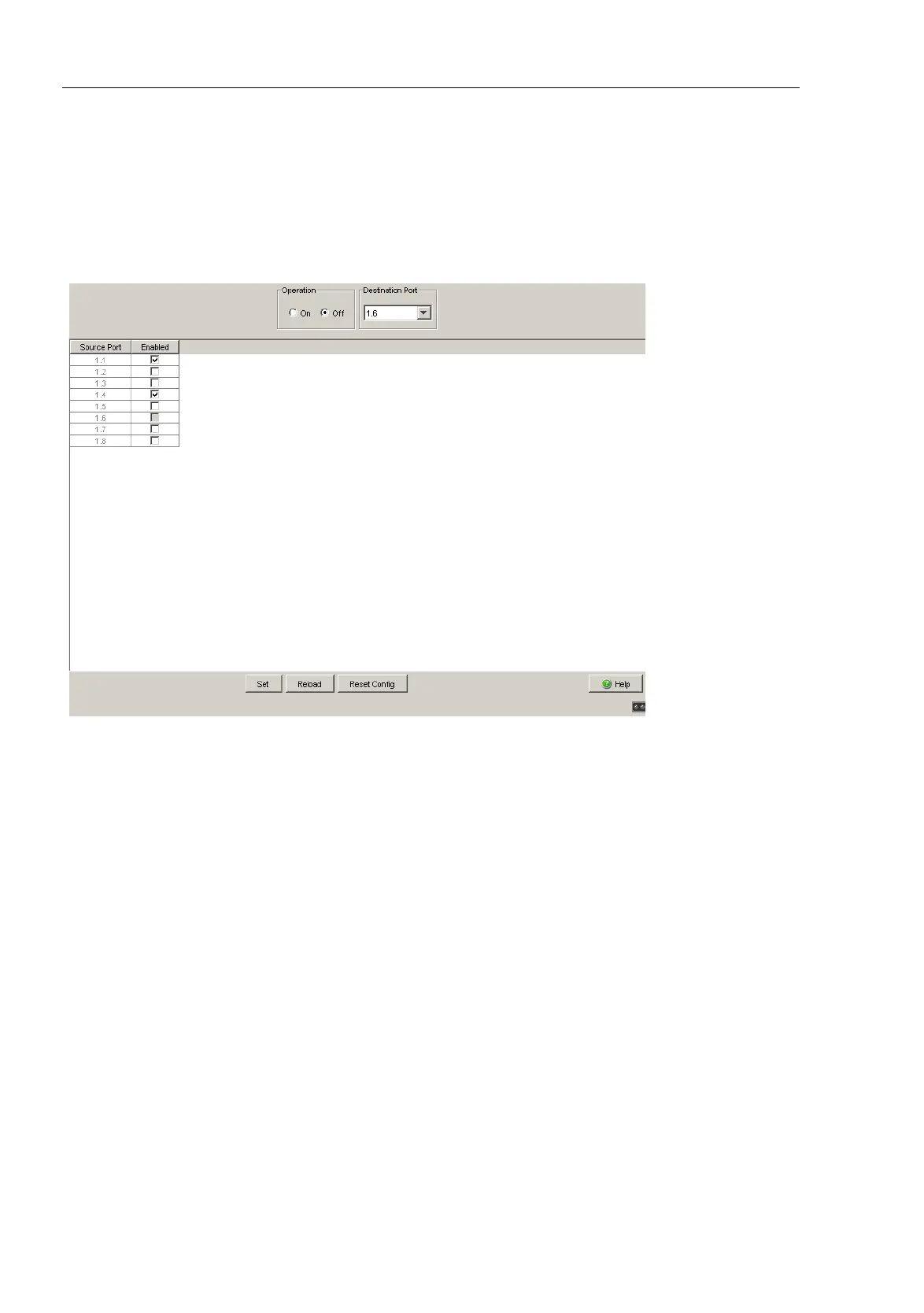

Figure 35: Port Mirroring dialog
