Basic Settings
32
1.5 Power over ETHERNET
RM Web L2B
Release 5.3 05/2012
 The "Class" column indicates the class of the connected device:
Class: Maximum delivered power
0: 15.4 W
1: 4.0 W
2: 7.0 W
3: 15.4 W
4: 30.0 W
 The column „Consumption [W]“ displays the current power delivered at
the respective port.
 The “Name” column indicates the name of the port, see
Basic settings:Port configuration.

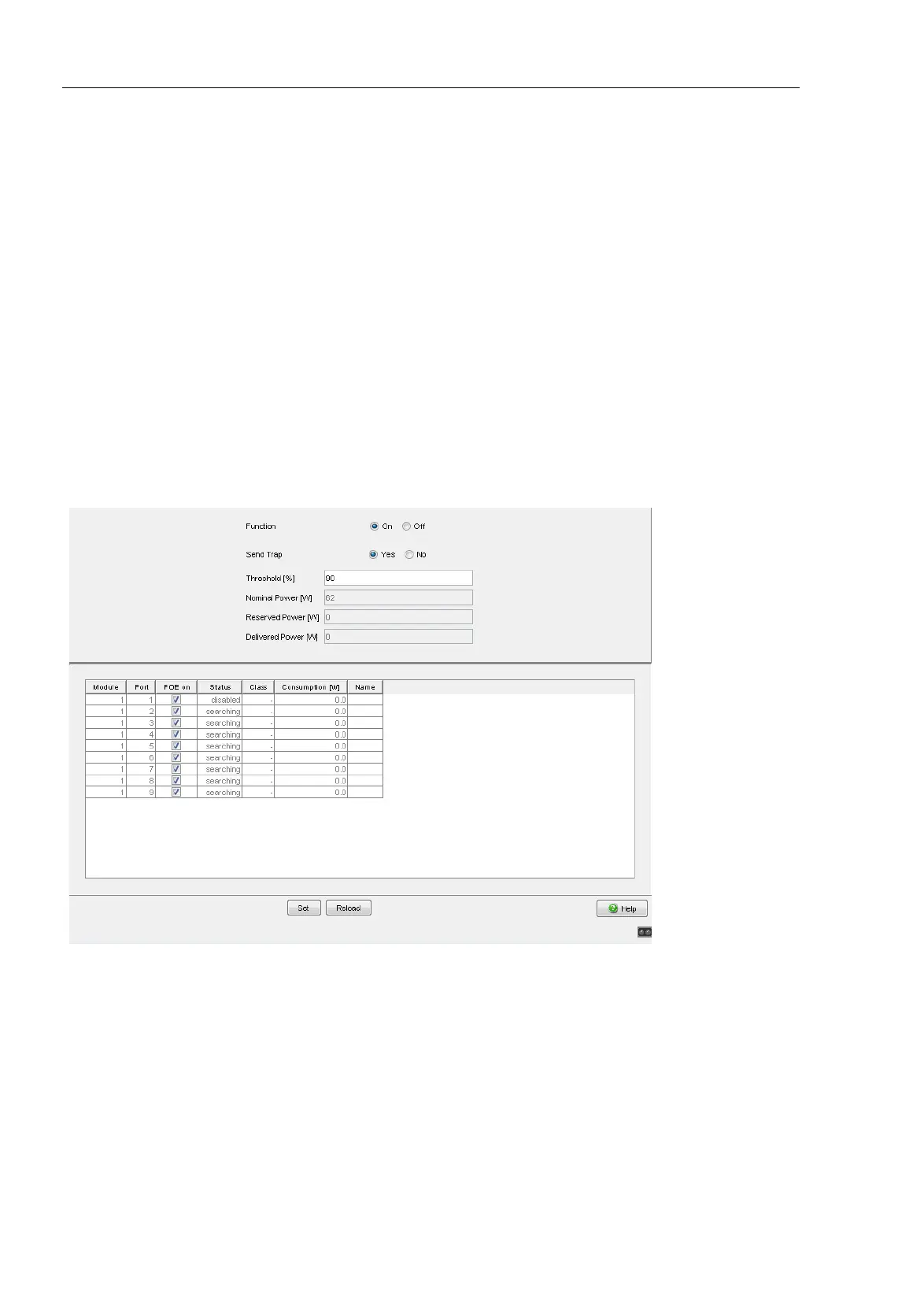

Figure 11: Power over Ethernet dialog
