Hirschmann RS20 series User Manual

Installation RS20/22/30/32/40
Release 05 12/2015
33

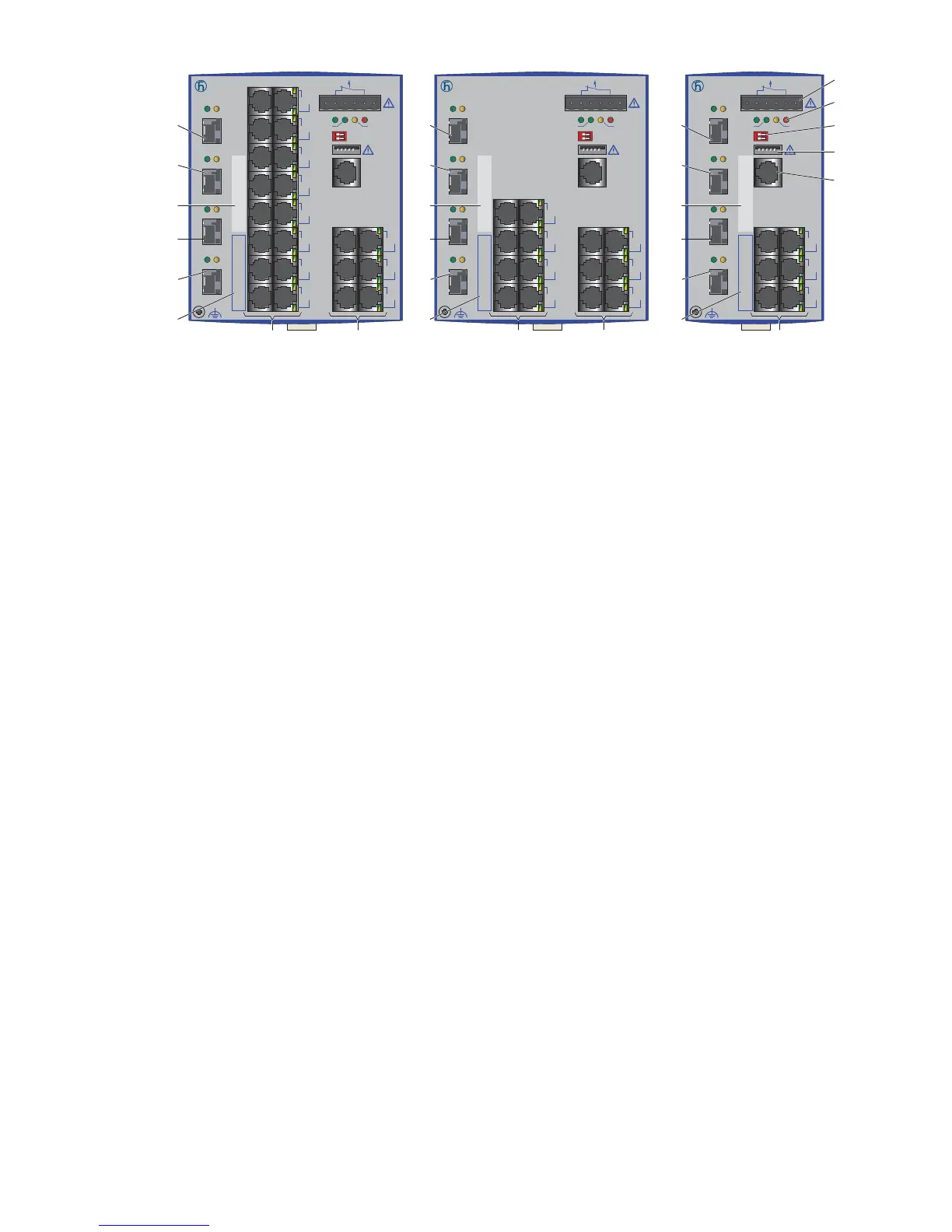

Figure 9: Device variants with 4 uplink ports
1 to 6 – see figure 6
7 – MAC address field
8 – port 3 + port 4:
ZZ: FX, SFP slot, 100 Mbit/s
9 – IP address field
10 – port 1 + port 2:
OO: FX/SX/LX, SFP slot, 100/1000 Mbit/s
RS30
+24V(P1) 0V 0V
FAULT
+24V(P2)
5
7
9
11
13
15
17
19
6
8
10
12
14
16
18
20
21
23
25
22
24
26
RS30
+24V(P1) 0V 0V
FAULT
+24V(P2)
5
7
9
11
6
8
10
12
13
15
17
14
16
18
RS30
+24V(P1) 0V 0V
FAULT
+24V(P2)
5
7
9
6
8
10
LS DA
1
LS DA
2
LS DA
3
LS DA
4
LS DA
1
LS DA
2
LS DA
3
LS DA
4
LS DA
1
LS DA
2
LS DA
3
LS DA
4
RM
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
V.24
USB
P
Stand by
FAULT
RM
ON
RM
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
V.24
USB
P
Stand by
FAULT
RM
ON
RM
Stand by
Aufkleber MAC-Adresse
IP-ADDRESS
V.24
USB
P
Stand by
FAULT
RM
ON
1
2
3
4
5
66666
7
8
8
9
10
10
7
8
8
9
10
10
7
8
8
9
10
10
RS30-2402OOZZ...D... RS30-1602OOZZ...D... RS30-0802OOZZ...D...

Hirschmann RS20 series Specifications

General

Port Count	Up to 24 ports
Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-forward
Port Type and Speed	10/100BASE-TX, 100BASE-FX
Power Supply	24 V DC or 110-230 V AC
Certifications	CE, UL, cUL, DNV, GL, ABS, IECEx, ATEX
Management	Web, SNMP, CLI
Redundancy	MRP, RSTP
Dimensions	Varies depending on model
Weight	500 g
