Installation RS20/22/30/32/40

Release

12/2015

1.3 Ethernet ports

You can connect end devices and other segments to the device ports using

twisted pair cables or optical fibers (F/O).

1.3.1 10/100/1000 Mbit/s twisted pair port

This port is an RJ45 socket.

The 10/100/1000 Mbit/s twisted pair port offers you the ability to connect

network components according to the IEEE 802.3 10BASE-T/100BASE-

TX/1000BASE-T standard.

This port supports:

 Autonegotiation

 Autopolarity

 Autocrossing (if autonegotiation is activated)

 1000 Mbit/s full duplex

 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode

 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode

Delivery state: Autonegotiation activated

The socket housing is electrically connected with the front panel.

The pin assignment corresponds to MDI-X.

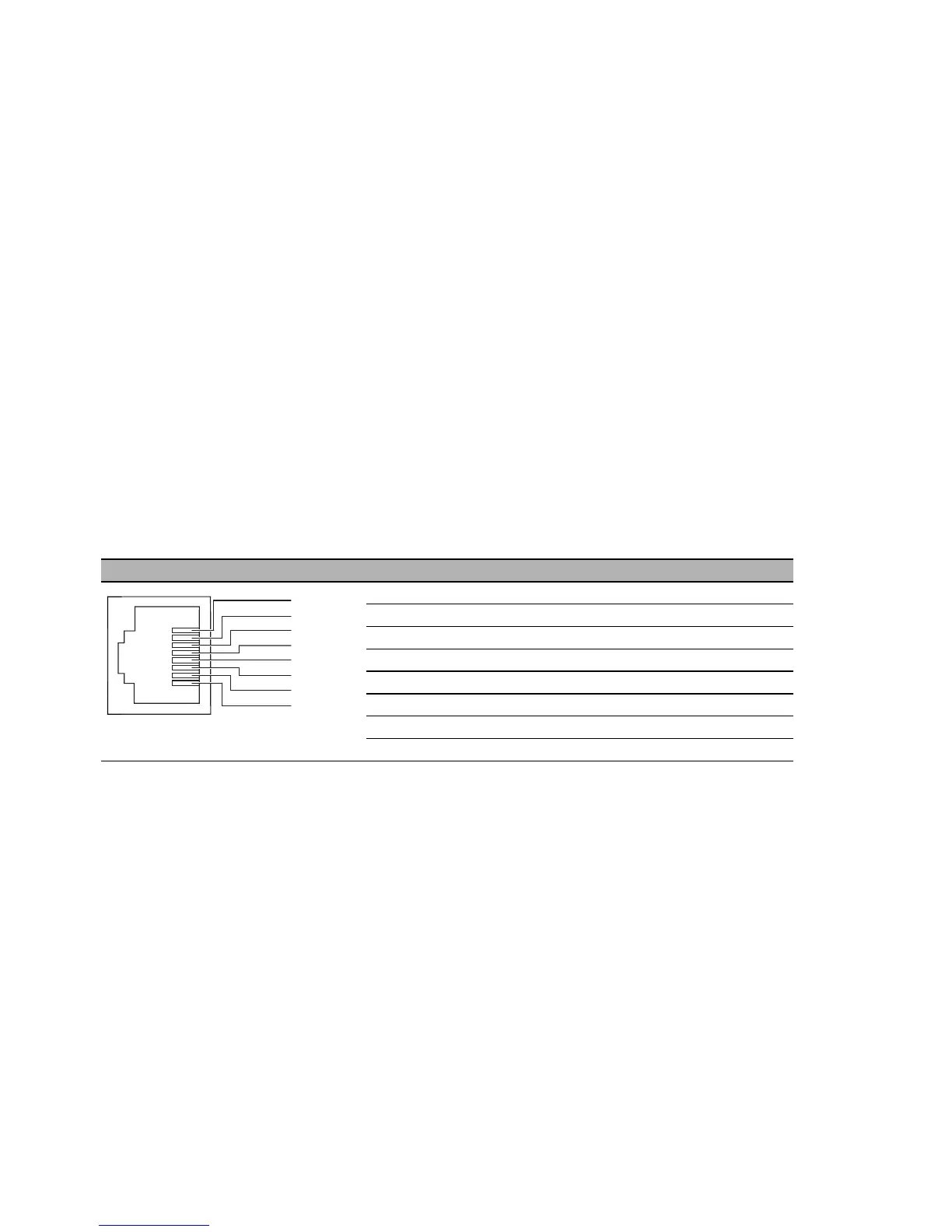

Pin Function

1BI_DB+

2BI_DB−

3BI_DA+

4 BI_DD+

5BI_DD−

6BI_DA−

7 BI_DC+

8BI_DC−

Table 7: Pin assignment of 10/100/1000 Mbit/s twisted pair port, RJ45 socket,

1000 Mbit/s mode, MDI-X mode
