Installation RS20/22/30/32/40
Release
05
12/2015
47

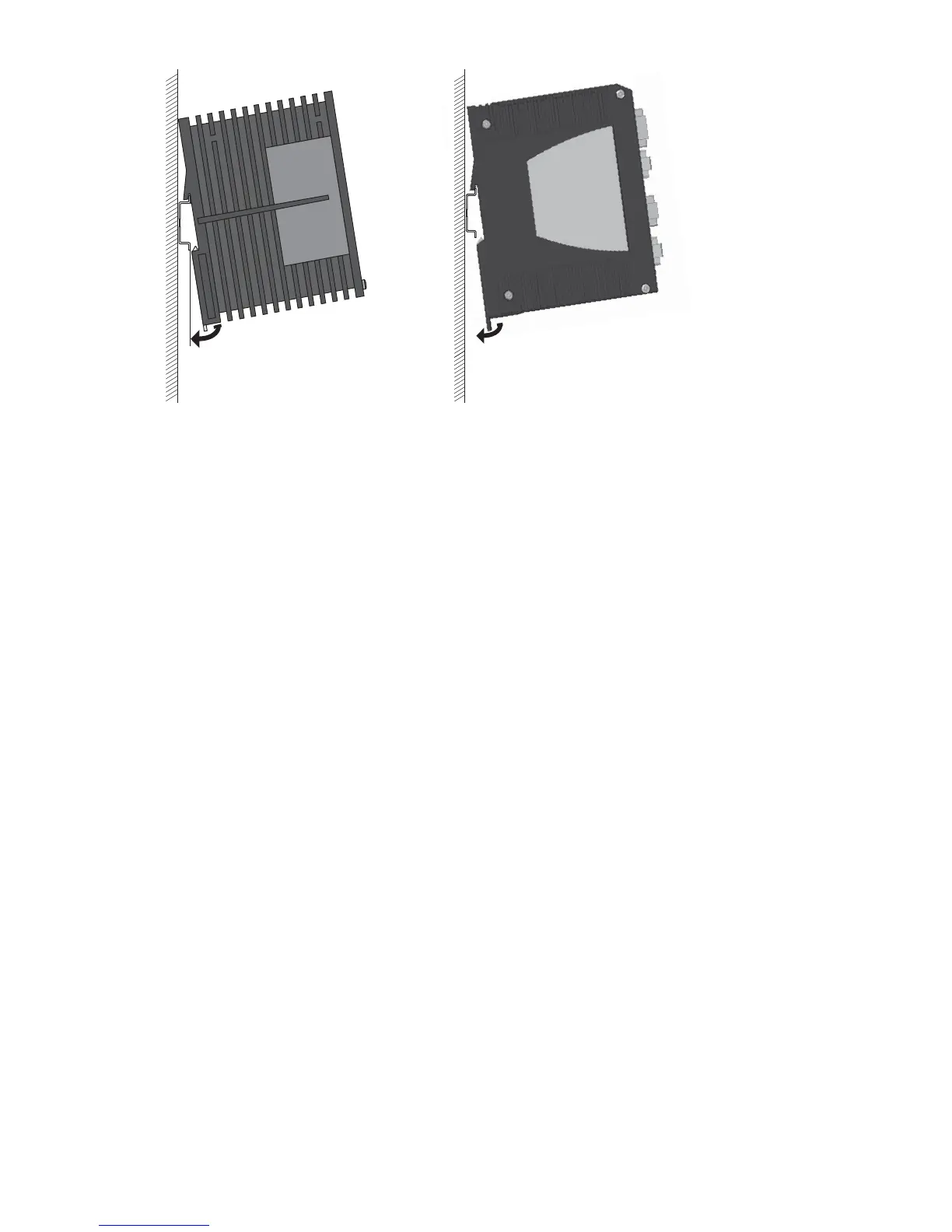

To mount the device onto a horizontally mounted 35 mm DIN rail according
to DIN EN 60715, proceed as follows:
Slide the upper snap-in guide of the device into the DIN rail.
Pull down the locking gate using a screwdriver and press the lower part
of the device against the DIN rail.
Snap in the device by releasing the locking gate.
Note: The overall shield of a connected shielded twisted pair cable is
connected to the ground connector on the front panel as a conductor.
