7.2.2 Network load
This table displays the network load of the individual ports. The network load
is the data quantity that the port received in the previous 30 s, compared to
the maximum possible data quantity at its currently configured data rate.
In the “Upper Threshold[%]” column you enter the top threshold value for the
network load. If this threshold value is exceeded, the device sets a check
mark in the “Alarm” field.
In the “Lower Threshold [%]” column you enter the lower threshold value for
network load. If this threshold value is not met, the device removes the check
mark previously set.

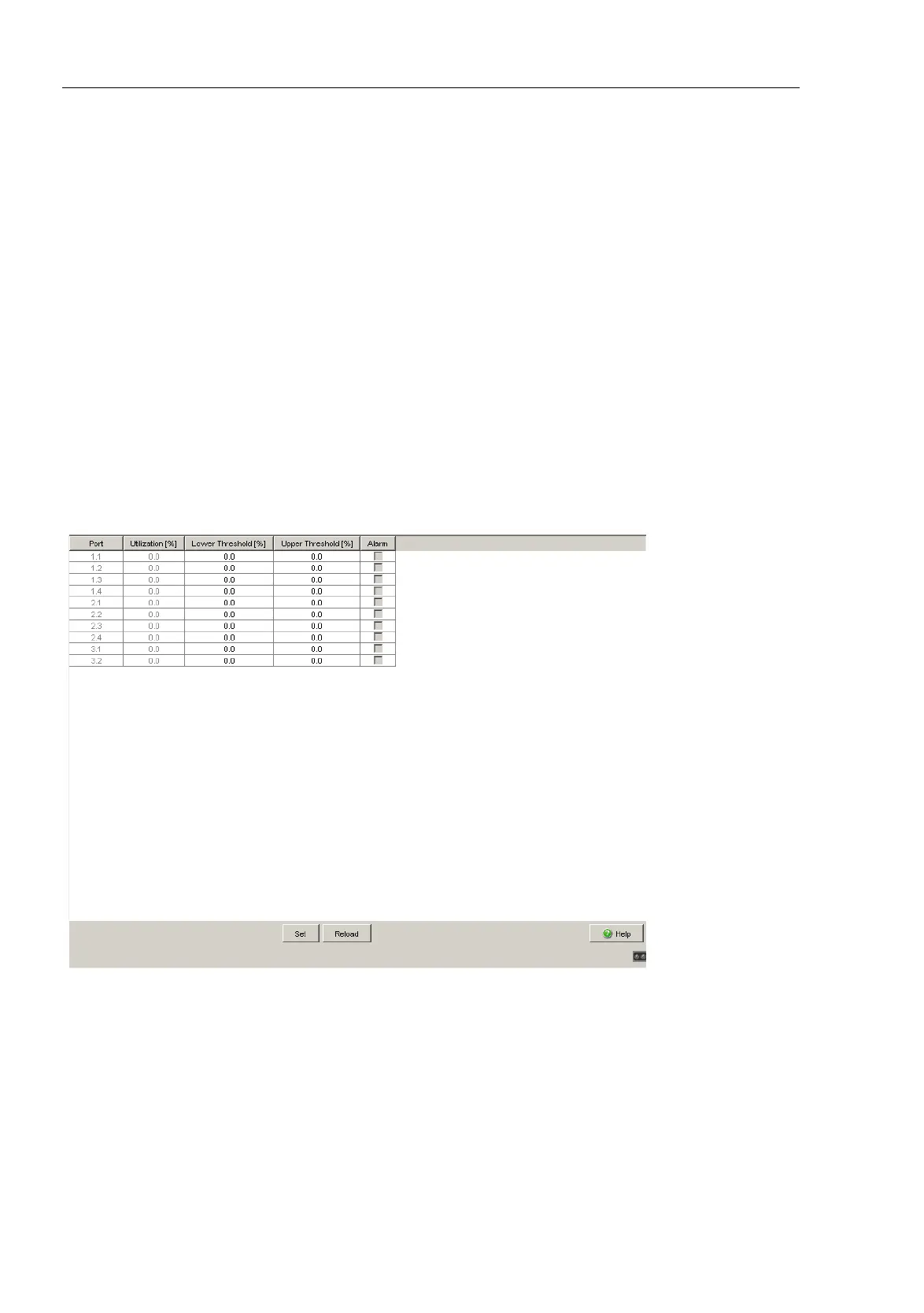

Figure 33: Network load dialog
