Switching
60
4.1
Switching Global
RM Web L2B
Release
5.3
05/2012
4.1
Switc
hing Global

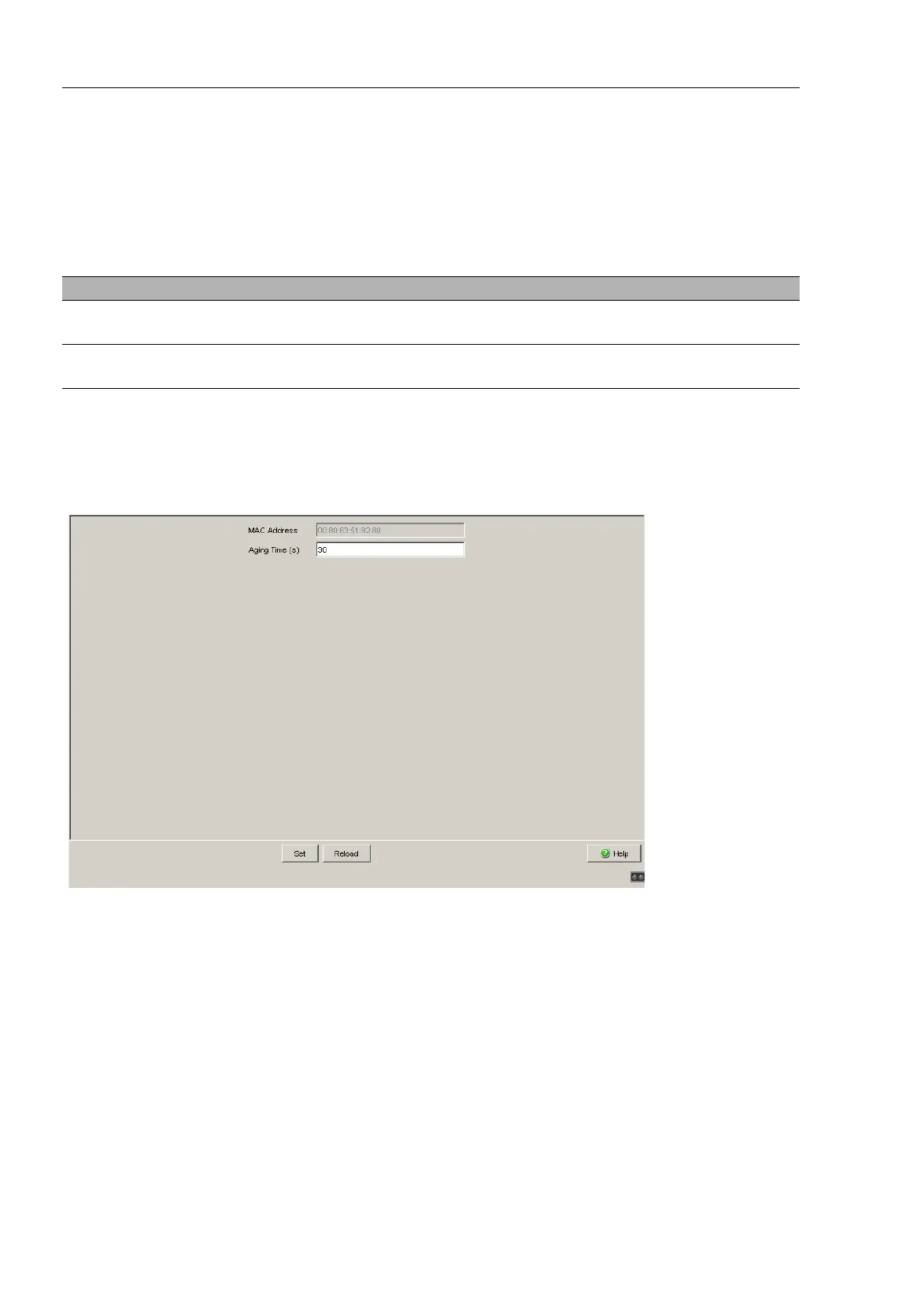

Figure 20:
Dialog
Switching Global
Variable
Meaning
Possible Values
Default Setting
MAC address
(read only)
Display the MAC address of the device
Aging Time (s)
Enter the Aging Time in se
conds for
dynamic MAC address entries.
15-3.825
30
T
able 9:
Switching:Global dialog
59
61
