Hirschmann RSPE 35 - Pin Assignments

Installation RSPE 30/32/35/37
Release 12 10/2015
27

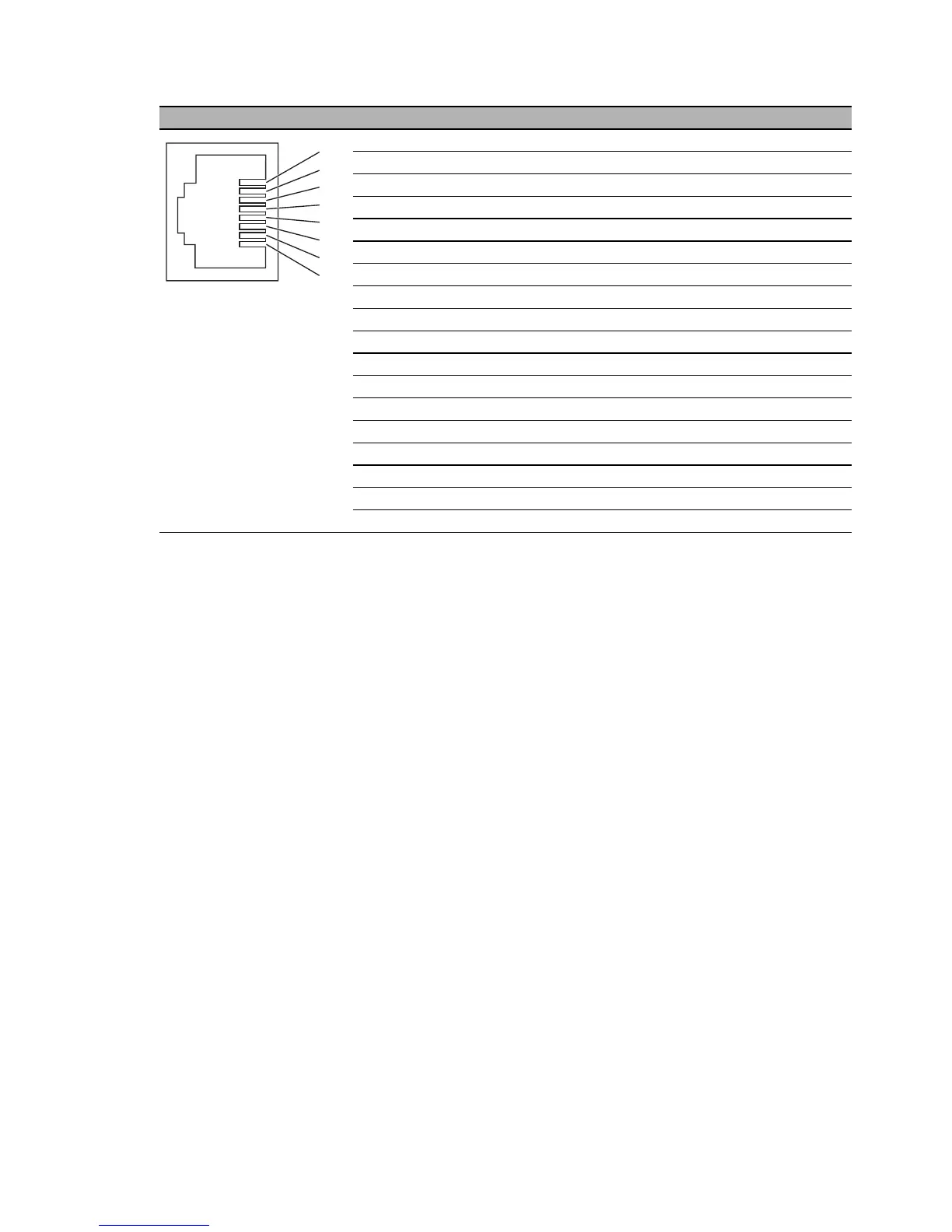

1.5.5 Pin assignments
RJ45 Pin 10/100 Mbit/s 1000 Mbit/s PoE
MDI mode
1 TX+ BI_DA+ Positive V
PSE
a
a. Phantom supply
2TX− BI_DA− Positive V
PSE
a
3 RX+ BI_DB+ Negative V
PSE
a
4 — BI_DC+ Positive V
PSE
b
b. Spare pair supply
5— BI_DC− Positive V
PSE
b
6RX− BI_DB− Negative V
PSE
a
7 — BI_DD+ Negative V
PSE
b
8— BI_DD− Negative V
PSE
b
MDI-X mode
1 RX+ BI_DB+ Negative V
PSE
a
2RX− BI_DB− Negative V
PSE
a
3 TX+ BI_DA+ Positive V
PSE
a
4 — BI_DD+ Positive V
PSE
b
5— BI_DD− Positive V
PSE
b
6TX− BI_DA− Positive V
PSE
a
7 — BI_DC+ Negative V
PSE
b
8— BI_DC− Negative V
PSE
b
1
2
3
4
5
6
7
8
