Hirschmann RSPE 35 - Supply Voltage with the Characteristic Value KK

Installation RSPE 30/32/35/37
Release 12 10/2015
41
 Connect the wires according to the pin assignment on the device with the
clamps.
 Fasten the wires connected by tightening the terminal screws.
2.6.2 Supply voltage with the characteristic value KK
You will find information on the characteristic values here:
“Device name and product code” on page 17
You have the option of supplying the supply voltage redundantly, without
load distribution.
Both supply voltage inputs are uncoupled.
With a redundant supply, the supply voltage 1 (upper voltage input on the
device) has priority.

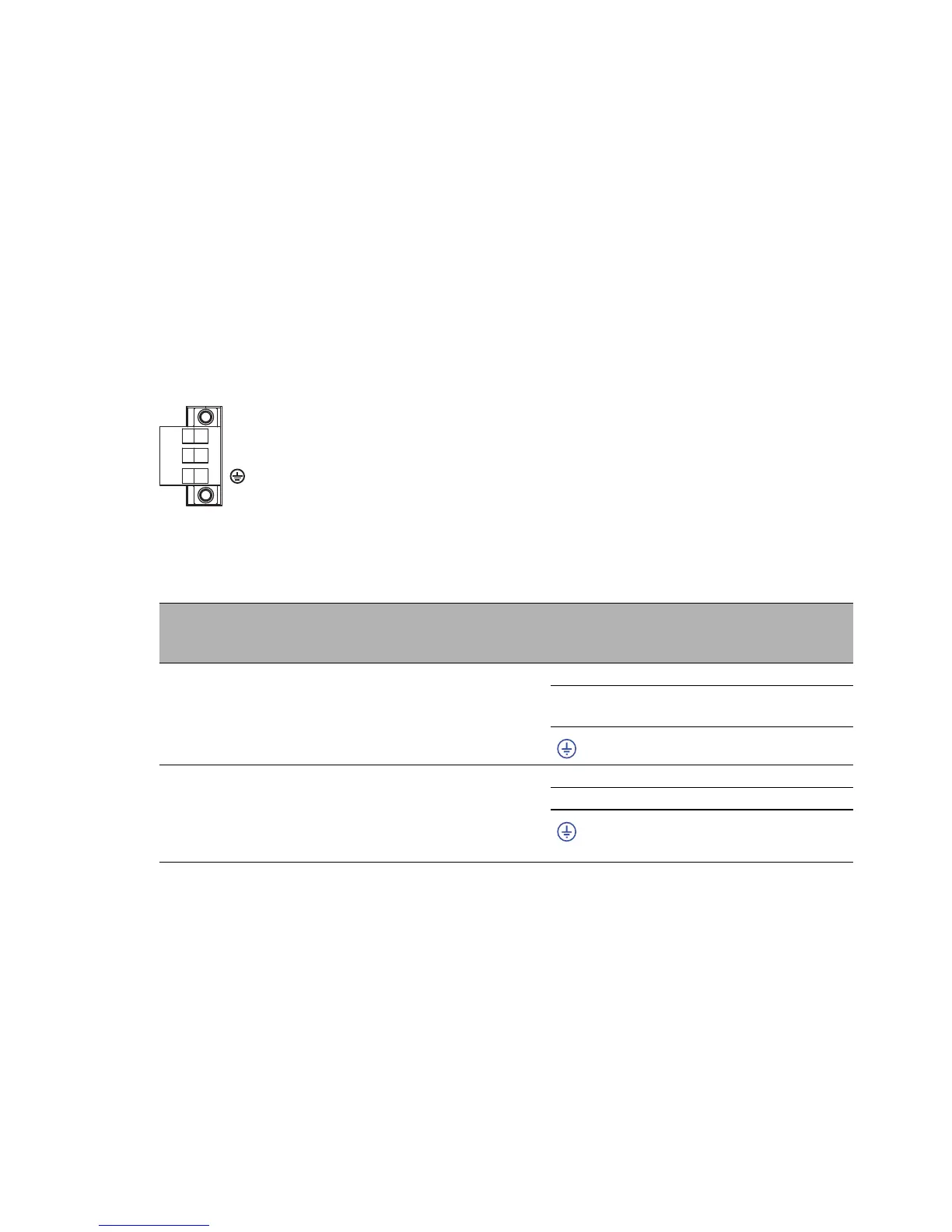

Figure 4: Supply voltage with the characteristic value KK: 3-pin terminal block with
screw locking
Type of the voltages
that can be
connected
Specification of the supply
voltage
Connections
DC voltage Rated voltage range DC
60 V ... 250 V
Voltage range DC incl.
maximum tolerances
48 V ... 320 V
+/L Plus terminal of the supply voltage
−/N Minus terminal of the supply
voltage
Protective conductor
AC voltage Rated voltage range AC
110 V ... 230 V, 50 Hz ... 60 Hz
Voltage range AC incl.
maximum tolerances
88 V ... 265 V, 47 Hz ... 63 Hz
+/L Outer conductor
−/N Neutral conductor
Protective conductor
Table 10: Supply voltage with the characteristic value KK: type and specification of
the supply voltage, connections
N
L
