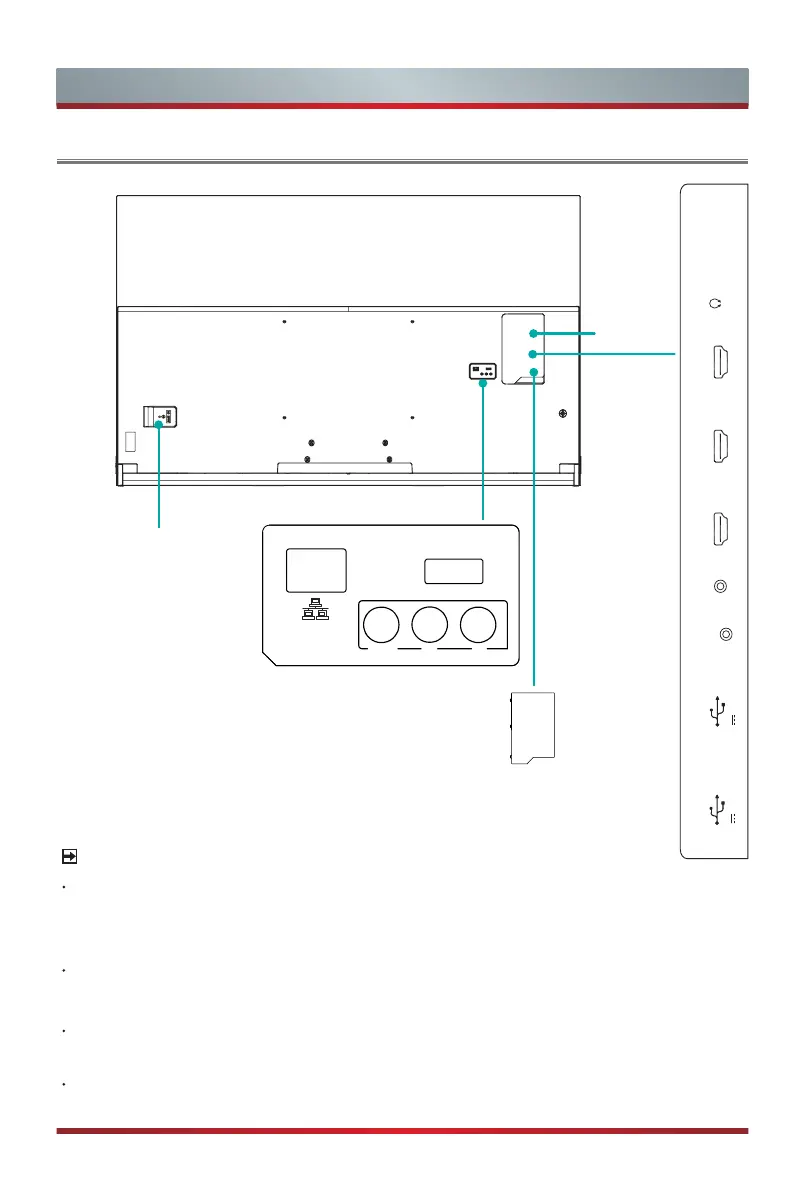

TV Rear
TV Rear
VIDEO
L R
AV IN
HDMI 4
(4K@60Hz)
NOTE
Check the jacks for position and type before making any connections. Loose
connections can result in image or color problems. Make sure that all connections
are tight and secure.
The TV may not be compatible with all external devices. To check compatibility,
please refer to the user manual of external device.
Do not connect external equipment while TV's power cord is plugged in. It may
cause electric shock.
Service jack is not available for you to connect an external device. It can only be
used by our factory for testing
purposes.
LAN
ANT
HDMI 3 (
4K@60Hz
) HDMI 1 (
4K@60Hz
)
DC 5V 0.5A(MAX)
USB 2
HDMI 2 (
4K@60Hz
)
SERVICE
ARC
DC 5V 0.5A(MAX)
USB 1
DIGITAL
AUDIO OUT
HEADPHONE
Power Input
Cover
Note: When terminal connection is nished,
take out the Cover from accessory bag and
install it to cover terminals.
Nameplate
To Next Page
