Hisense MSD6886 User Manual

- 12 -

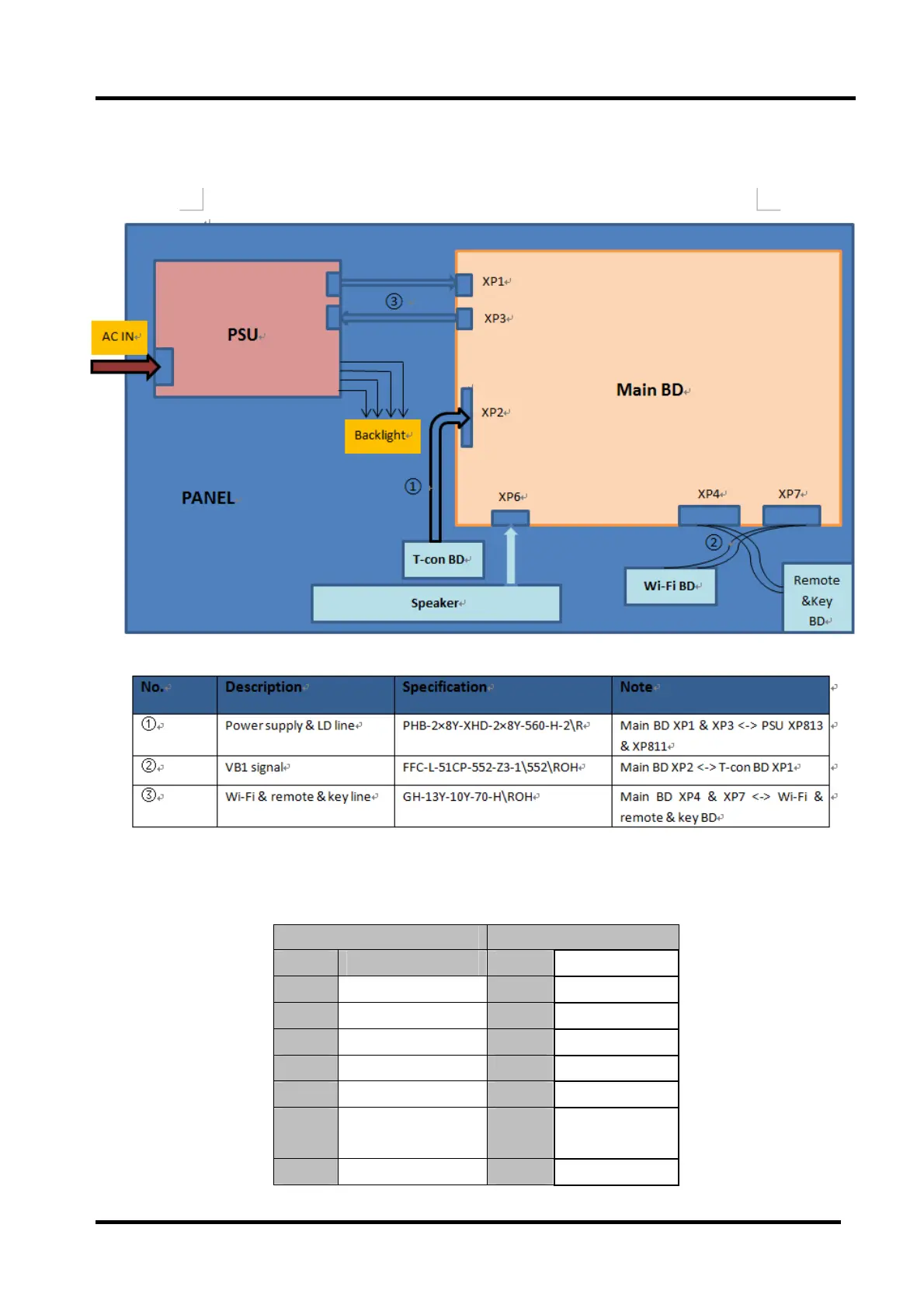

2.2 Wiring diagram( example for HE55A7000EUWUTS):
XP1： Power for main board jacket
Main board terminal Power board terminal
Pin definition Pin definition
1 GND 15 GND
3 DIMMING2/DIM1 13 BL_ANA
5 VCC_A/ VCCA1 11 16V
7 VCC_A/ VCCA1 9 16V
9 GND 7 GND
11 POWER ON/OFF/
STB1
5 STB
13 12VS/ VCC3 3 12V
