Preparation for Using your new TV
To enjoy the terrestrial signal transmitted by your local TV station, you need an indoor or outdoor antenna
(not supplied). Perfect picture quality requires a good signal and generally means that an outdoor antenna
must be used. The exact type and location of the antenna will depend on your particular area. Consult your
local dealer or service personnel for best advice. If you are a subscriber of your local CATV net, the outdoor
or indoor antenna is not needed. Connect the equipments as the following figure.

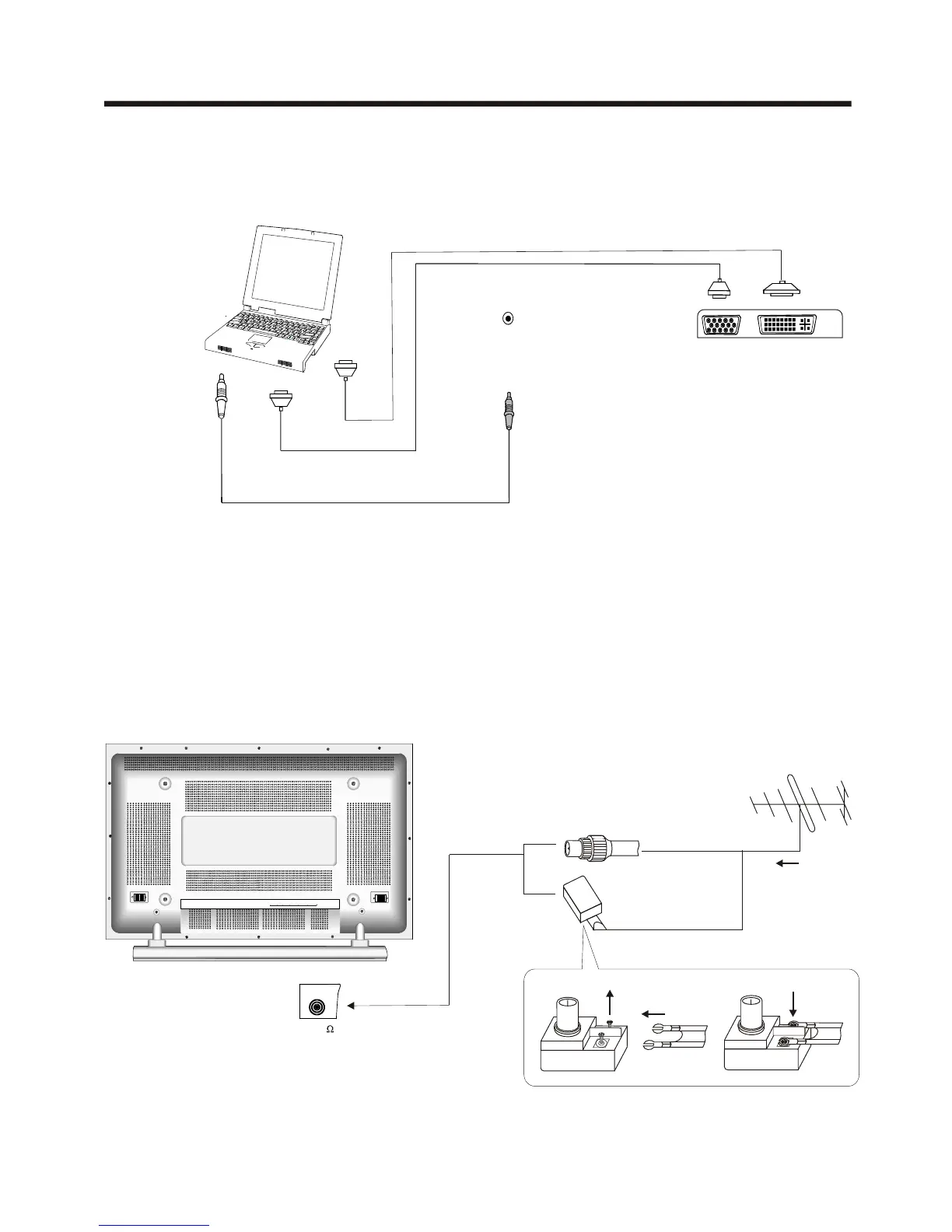

Connecting to an antenna
- 5 -
You can use your TV as a monitor/speakers for connecting through its 15pin standard RGB
interface and PC audio interface.
your computer by
Connect the devices as shown below.
Connecting to A Computer
Loosen the screw
Insert the feeder in
Tighten the screw
Plug(not supplied)
Adaptor (not supplied)
The signal comes from:
An outdoor antenna
An indoor antenna
CATV net
TWIN-LEAD FEEDER(300 W )
COAXIAL CABLE (75W )
AU DIO VIDEO EARPHONE PC AUDIO ANT 75 Y Cb Cr
SCART2 SCART1 INPUT OUTPUT OUT INPUT VIDEO Y Pb Pr PC DVI Rs232 POWER
INPUT
ANTENNA SOCKET
ANT 75
PC/NB
To VGA
To speaker
RGB line
Audio line
PC AUDIO
INPUT
To DVI
To Next Page
